Introduction: The Transport Layer

In Part 3, we learned how IP routes packets across networks. But IP only provides best-effort delivery—packets can be lost, duplicated, or arrive out of order. The Transport Layer (Layer 4) solves these problems by providing:

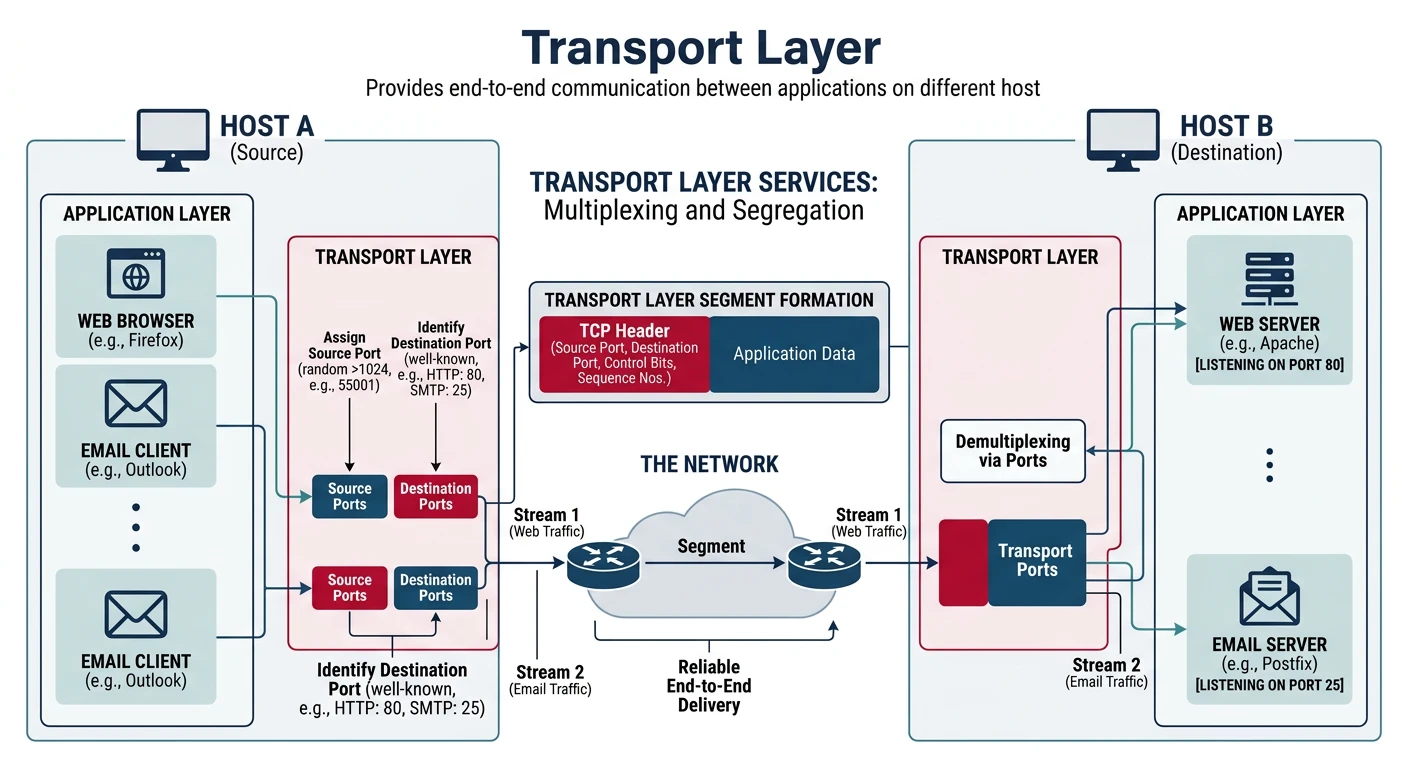

Transport Layer providing end-to-end communication between applications on different hosts via ports — The Transport Layer enables reliable end-to-end communication between applications using port-based multiplexing.

End-to-end communication between applications
Multiplexing via ports (multiple apps on one IP)
Reliability (TCP) or speed (UDP)
Flow and congestion control


                        Series Context: This is Part 4 of 20 in the Complete Protocols Master series. We're building from network addressing to end-to-end application communication.


Protocol Mastery

Your 20-step learning path • Currently on Step 4

1

4

Transport Layer

TCP, UDP, QUIC, ports, sockets

You Are Here

5

Session & Presentation Layers

TLS handshake, encryption, serialization

6

Web Protocols

HTTP/1.1, HTTP/2, HTTP/3, WebSockets

7

API Protocols

REST, GraphQL, gRPC, SOAP

8

DNS Deep Dive

DNS hierarchy, records, DNSSEC

9

Email Protocols

SMTP, IMAP, POP3, SPF/DKIM/DMARC

10

File Transfer & Remote Access

FTP, SFTP, SSH, RDP

11

Real-Time Protocols

WebRTC, SIP, RTP, VoIP

12

Streaming Protocols

HLS, DASH, RTMP, media delivery

13

IoT Protocols

MQTT, CoAP, Zigbee, LoRaWAN

14

VPN & Tunneling

IPsec, OpenVPN, WireGuard

15

Authentication Protocols

OAuth, SAML, OIDC, Kerberos

16

Network Management

SNMP, NetFlow, Syslog

17

Security Protocols

TLS/SSL, certificates, PKI

18

Cloud Provider Protocols

AWS, Azure, GCP APIs

19

Emerging Protocols

QUIC, HTTP/3, WebTransport

20

Web Security Standards

CORS, CSP, HSTS, SRI

Ports and Sockets

Ports

Understanding Port Numbers

A port is a 16-bit number (0-65535) that identifies a specific application or service on a host. Combined with an IP address, it forms a socket.

Socket = IP Address + Port
Example: 192.168.1.100:443

Port Ranges:
┌─────────────────┬────────────────┬─────────────────────────────────┐
│ Range           │ Type           │ Description                     │
├─────────────────┼────────────────┼─────────────────────────────────┤
│ 0 - 1023        │ Well-Known     │ Reserved for system services    │
│                 │                │ (requires root/admin)           │
├─────────────────┼────────────────┼─────────────────────────────────┤
│ 1024 - 49151    │ Registered     │ Registered with IANA for apps   │
├─────────────────┼────────────────┼─────────────────────────────────┤
│ 49152 - 65535   │ Dynamic/       │ Ephemeral ports for client      │
│                 │ Ephemeral      │ connections (auto-assigned)     │
└─────────────────┴────────────────┴─────────────────────────────────┘

Well-Known Ports

Common Port Numbers

Port	Protocol	Service
20, 21	TCP	FTP (Data, Control)
22	TCP	SSH
23	TCP	Telnet
25	TCP	SMTP (Email sending)
53	TCP/UDP	DNS
67, 68	UDP	DHCP (Server, Client)
80	TCP	HTTP
110	TCP	POP3 (Email retrieval)
143	TCP	IMAP (Email retrieval)
443	TCP/UDP	HTTPS / HTTP/3 (QUIC)
465	TCP	SMTPS (Email over TLS)
587	TCP	SMTP Submission
993	TCP	IMAPS
995	TCP	POP3S
3306	TCP	MySQL
3389	TCP	RDP (Remote Desktop)
5432	TCP	PostgreSQL
6379	TCP	Redis
8080	TCP	HTTP Alternate

# View listening ports on your system

# Linux
ss -tlnp          # TCP listening ports with process
ss -ulnp          # UDP listening ports
netstat -tlnp     # Alternative

# Windows
netstat -an | findstr LISTENING
netstat -ano      # With process IDs

# macOS
lsof -i -P | grep LISTEN
netstat -an | grep LISTEN

# Check what's using a specific port
# Linux
lsof -i :80
fuser 80/tcp

# Windows
netstat -ano | findstr :80

TCP: Transmission Control Protocol

TCP is a connection-oriented, reliable protocol that guarantees data delivery in order. It's the workhorse of the internet, carrying HTTP, email, file transfers, and more.

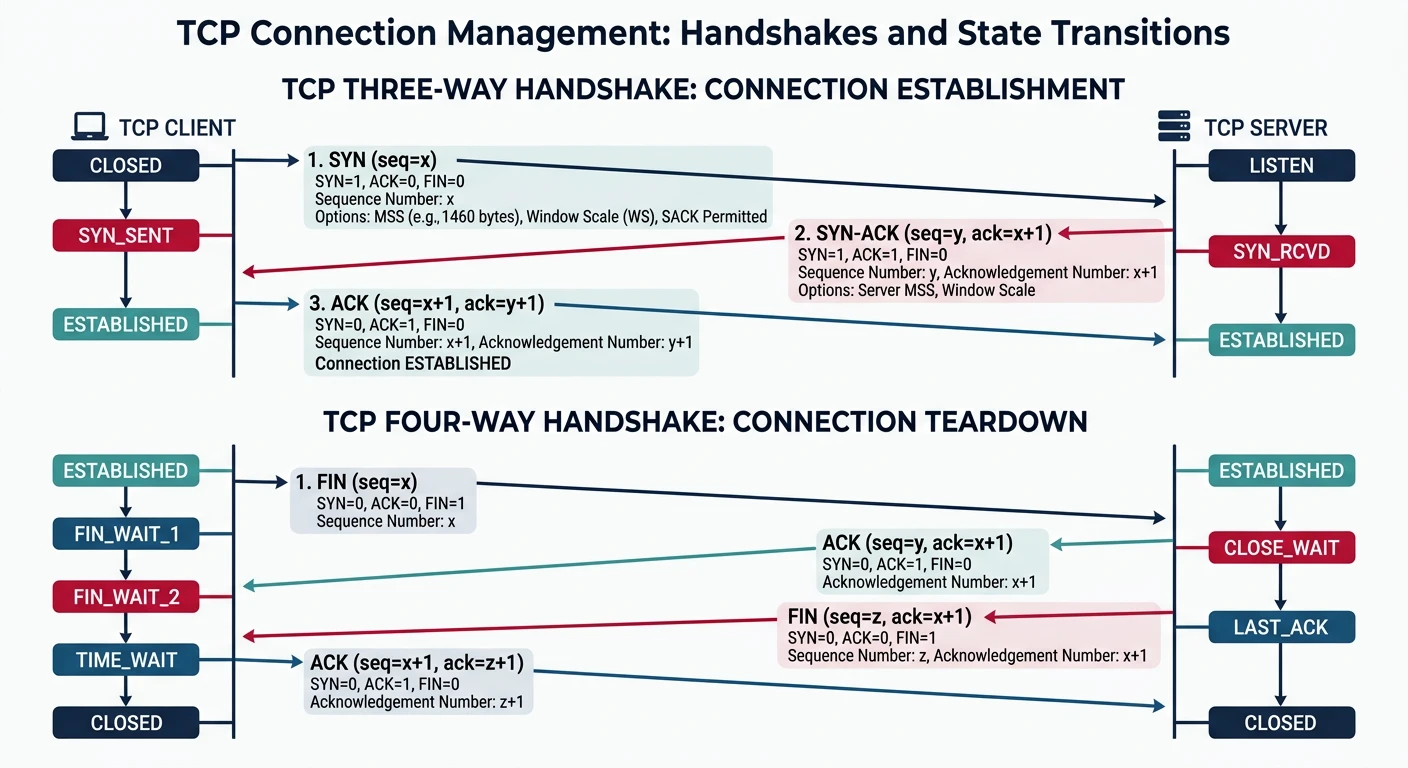

TCP three-way handshake showing SYN, SYN-ACK, and ACK message exchange between client and server — TCP establishes connections using a three-way handshake (SYN → SYN-ACK → ACK) before data transfer begins.

TCP Features

Key TCP Characteristics

Connection-oriented: Establishes connection before data transfer
Reliable delivery: Guarantees all data arrives correctly
Ordered: Data delivered in sequence
Error detection: Checksum verifies integrity
Flow control: Prevents overwhelming receiver
Congestion control: Adapts to network conditions
Full-duplex: Simultaneous bidirectional communication
Byte-stream: No message boundaries (stream of bytes)

TCP Header Structure

TCP Header

TCP Segment Header (20-60 bytes)

 0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|          Source Port          |       Destination Port        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                        Sequence Number                        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Acknowledgment Number                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|  Data |       |C|E|U|A|P|R|S|F|                               |
| Offset| Rsrvd |W|C|R|C|S|S|Y|I|            Window             |
|       |       |R|E|G|K|H|T|N|N|                               |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|           Checksum            |         Urgent Pointer        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Options (if Data Offset > 5)               |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                             Data                              |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Key Fields:
- Source/Dest Port (16 bits each): Application endpoints
- Sequence Number (32 bits): Position of first data byte
- ACK Number (32 bits): Next expected byte from sender
- Data Offset (4 bits): Header length in 32-bit words
- Flags (9 bits): Control flags (SYN, ACK, FIN, RST, PSH, URG, etc.)
- Window (16 bits): Receive buffer space available
- Checksum (16 bits): Error detection

TCP Flags

TCP Control Flags

Flag	Name	Purpose
SYN	Synchronize	Initiate connection, synchronize sequence numbers
ACK	Acknowledgment	Acknowledges received data
FIN	Finish	Sender finished sending data
RST	Reset	Abort connection immediately
PSH	Push	Push data to application immediately
URG	Urgent	Urgent data present (use urgent pointer)
ECE	ECN-Echo	Congestion experienced
CWR	Congestion Window Reduced	Sender reduced transmission rate

The Three-Way Handshake

Connection Establishment

TCP Connection Setup

Three-Way Handshake: SYN → SYN-ACK → ACK

    Client                              Server
       |                                   |
       |  1. SYN (seq=100)                 |
       |  "I want to connect"              |
       |---------------------------------->|
       |                                   |
       |  2. SYN-ACK (seq=300, ack=101)    |
       |  "OK, I acknowledge, let's sync"  |
       |<----------------------------------|
       |                                   |
       |  3. ACK (seq=101, ack=301)        |
       |  "Got it, connection established" |
       |---------------------------------->|
       |                                   |
       |  === CONNECTION ESTABLISHED ===   |
       |                                   |
       |  Data exchange can now begin      |
       |<=================================>|

Why Three Steps?
1. SYN: Client proposes initial sequence number (ISN)
2. SYN-ACK: Server acknowledges client's ISN, proposes its own ISN
3. ACK: Client acknowledges server's ISN

This ensures both sides agree on sequence numbers and
prevents old duplicate connections from being accepted.

TCP Three-Way Handshake

sequenceDiagram
    participant C as Client
    participant S as Server

    Note over C,S: Connection Establishment
    C->>S: SYN (seq=x)
    Note right of C: Client initiates connection
    S->>C: SYN-ACK (seq=y, ack=x+1)
    Note left of S: Server acknowledges & syncs
    C->>S: ACK (seq=x+1, ack=y+1)
    Note over C,S: Connection ESTABLISHED

    Note over C,S: Data Transfer
    C->>S: Data (seq=x+1)
    S->>C: ACK (ack=x+1+len)

    Note over C,S: Connection Termination
    C->>S: FIN
    S->>C: ACK
    S->>C: FIN
    C->>S: ACK
    Note over C,S: Connection CLOSED

# Simulate TCP three-way handshake
import random

class TCPEndpoint:
    """Simulates TCP connection establishment"""

    def __init__(self, name):
        self.name = name
        self.state = "CLOSED"
        self.seq_num = random.randint(0, 2**32 - 1)  # Initial Sequence Number
        self.ack_num = 0

    def send_syn(self):
        """Client sends SYN"""
        self.state = "SYN_SENT"
        print(f"\n[{self.name}] Sending SYN")
        print(f"  State: CLOSED → SYN_SENT")
        print(f"  Flags: SYN=1")
        print(f"  Seq: {self.seq_num}")
        return {"type": "SYN", "seq": self.seq_num}

    def receive_syn_send_synack(self, syn_packet):
        """Server receives SYN, sends SYN-ACK"""
        self.state = "SYN_RECEIVED"
        self.ack_num = syn_packet["seq"] + 1

        print(f"\n[{self.name}] Received SYN, sending SYN-ACK")
        print(f"  State: LISTEN → SYN_RECEIVED")
        print(f"  Flags: SYN=1, ACK=1")
        print(f"  Seq: {self.seq_num}")
        print(f"  Ack: {self.ack_num}")

        return {"type": "SYN-ACK", "seq": self.seq_num, "ack": self.ack_num}

    def receive_synack_send_ack(self, synack_packet):
        """Client receives SYN-ACK, sends ACK"""
        self.state = "ESTABLISHED"
        self.ack_num = synack_packet["seq"] + 1
        self.seq_num += 1  # SYN consumes one sequence number

        print(f"\n[{self.name}] Received SYN-ACK, sending ACK")
        print(f"  State: SYN_SENT → ESTABLISHED")
        print(f"  Flags: ACK=1")
        print(f"  Seq: {self.seq_num}")
        print(f"  Ack: {self.ack_num}")

        return {"type": "ACK", "seq": self.seq_num, "ack": self.ack_num}

    def receive_ack(self, ack_packet):
        """Server receives ACK, connection established"""
        self.state = "ESTABLISHED"
        self.seq_num += 1

        print(f"\n[{self.name}] Received ACK")
        print(f"  State: SYN_RECEIVED → ESTABLISHED")
        print(f"  Connection established!")

# Simulate the handshake
print("=" * 60)
print("TCP THREE-WAY HANDSHAKE SIMULATION")
print("=" * 60)

client = TCPEndpoint("Client")
server = TCPEndpoint("Server")
server.state = "LISTEN"

# Step 1: Client → Server: SYN
syn = client.send_syn()

# Step 2: Server → Client: SYN-ACK
synack = server.receive_syn_send_synack(syn)

# Step 3: Client → Server: ACK
ack = client.receive_synack_send_ack(synack)

# Server processes ACK
server.receive_ack(ack)

print("\n" + "=" * 60)
print(f"Final States: Client={client.state}, Server={server.state}")
print("=" * 60)

Connection Teardown

Four-Way Teardown

TCP Connection Termination

Four-Way Teardown: FIN → ACK → FIN → ACK

    Client                              Server
       |                                   |
       |  1. FIN (seq=500)                 |
       |  "I'm done sending"               |
       |---------------------------------->|
       |                                   |
       |  2. ACK (ack=501)                 |
       |  "Got it, but I might have more"  |
       |<----------------------------------|
       |                                   |
       |  (Server can still send data)     |
       |                                   |
       |  3. FIN (seq=700)                 |
       |  "OK, I'm also done"              |
       |<----------------------------------|
       |                                   |
       |  4. ACK (ack=701)                 |
       |  "Acknowledged, goodbye"          |
       |---------------------------------->|
       |                                   |
       |  === CONNECTION CLOSED ===        |

Why Four Steps?
- TCP is full-duplex: each direction closes independently
- After receiving FIN, host can still send pending data
- TIME_WAIT state (2*MSL) ensures all packets are gone


                        RST vs FIN: FIN is a graceful close—both sides agree to terminate. RST is an abrupt reset—used when something's wrong (connection doesn't exist, port closed, application crash). RST doesn't require acknowledgment.


TCP Reliability Mechanisms

Sequence & ACK

Sequence Numbers and Acknowledgments

How TCP ensures reliable delivery:

1. Sequence Numbers: Track bytes sent
   - Each byte has a sequence number
   - ISN (Initial Sequence Number) is random for security

2. Acknowledgments: Confirm bytes received
   - ACK number = next expected byte
   - Cumulative: ACK 1000 means "got all bytes up to 999"

Example Data Transfer:

Client sends 1000 bytes starting at seq=1000:
┌─────────────────────────────────────────────┐
│ Seq=1000, Data=bytes 1000-1999              │
└─────────────────────────────────────────────┘
                    ↓
Server acknowledges with ACK=2000:
┌─────────────────────────────────────────────┐
│ ACK=2000 ("I've received up to byte 1999,   │
│           send me byte 2000 next")          │
└─────────────────────────────────────────────┘

3. Retransmission: If ACK not received within timeout
   - Sender retransmits the data
   - Uses exponential backoff for timeouts

# Simulate TCP reliable data transfer with retransmission
import random
import time

class ReliableTCPSender:
    """Simulates TCP reliable transmission with retransmission"""

    def __init__(self, loss_probability=0.2):
        self.seq_num = 0
        self.window_size = 4  # Simplified window
        self.timeout = 1.0    # Seconds
        self.loss_prob = loss_probability
        self.sent_data = {}   # seq -> (data, time_sent, retries)

    def send_segment(self, data, simulate_loss=True):
        """Send a segment, potentially simulating packet loss"""
        seq = self.seq_num
        self.seq_num += len(data)

        # Simulate network loss
        if simulate_loss and random.random() < self.loss_prob:
            print(f"  [LOST] Segment seq={seq} lost in transit!")
            return None

        print(f"  [SENT] Segment seq={seq}, data='{data}'")
        return {"seq": seq, "data": data, "len": len(data)}

    def receive_ack(self, ack_num):
        """Process acknowledgment"""
        print(f"  [ACK]  Received ACK={ack_num}")
        # Remove acknowledged data from sent buffer
        self.sent_data = {k: v for k, v in self.sent_data.items()
                         if k >= ack_num}

def simulate_transfer():
    """Simulate reliable data transfer"""
    print("TCP Reliable Transfer Simulation")
    print("=" * 50)
    print("Sending 'HELLO' character by character with 20% loss\n")

    sender = ReliableTCPSender(loss_probability=0.2)
    data_to_send = list("HELLO")
    acked_up_to = 0
    max_retries = 3

    i = 0
    while i < len(data_to_send):
        char = data_to_send[i]
        print(f"\nAttempting to send '{char}' (byte {i}):")

        retries = 0
        while retries < max_retries:
            result = sender.send_segment(char)

            if result:
                # Simulate ACK (50% chance of ACK loss too)
                if random.random() > 0.1:  # 10% ACK loss
                    acked_up_to = result["seq"] + result["len"]
                    sender.receive_ack(acked_up_to)
                    i += 1
                    break
                else:
                    print(f"  [LOST] ACK lost! Retransmitting...")
                    retries += 1
            else:
                retries += 1
                if retries < max_retries:
                    print(f"  [RETRY] Retransmitting (attempt {retries + 1})...")

        if retries >= max_retries:
            print(f"  [FAIL] Max retries exceeded!")
            i += 1  # Move on (in real TCP, connection might reset)

    print(f"\n{'=' * 50}")
    print(f"Transfer complete! ACKed up to byte {acked_up_to}")

# Run simulation
simulate_transfer()

Flow Control: Sliding Window

Flow Control

Receiver-Based Flow Control

Flow Control prevents sender from overwhelming receiver.

Sliding Window Mechanism:
- Receiver advertises available buffer space (Window Size)
- Sender limits unacknowledged data to window size
- Window "slides" as ACKs arrive

Window Size Field: 16 bits (max 65,535 bytes)
Window Scaling Option: Allows windows up to 1 GB (shift count up to 14)

Example:

Initial: Receiver window = 4000 bytes

Sender                              Receiver (Buffer: 4000)
   |                                   |
   | Segment 1-1000 (1000 bytes)       |
   |---------------------------------->| Buffer: 3000 free
   |                                   |
   | Segment 1001-2000 (1000 bytes)    |
   |---------------------------------->| Buffer: 2000 free
   |                                   |
   | ACK=2001, Window=2000             |
   |<----------------------------------| (App consumed some)
   |                                   |
   | Segment 2001-3000 (1000 bytes)    |
   |---------------------------------->| Buffer: 1000 free
   |                                   |
   | ACK=3001, Window=3500             |
   |<----------------------------------| (App consumed more)

Zero Window: When receiver buffer is full
- Sender stops until window opens
- Sender periodically probes with Window Probe

Congestion Control

Network-Based Congestion Control

While flow control prevents overwhelming the receiver, congestion control prevents overwhelming the network.

Congestion Window (cwnd): Sender's self-imposed limit
Effective Window: min(cwnd, receiver window)
Goal: Find optimal sending rate without causing congestion

Congestion Algorithms

TCP Congestion Control Phases

1. SLOW START
   - Initial cwnd = 1 MSS (Maximum Segment Size)
   - cwnd doubles every RTT (exponential growth)
   - Continues until ssthresh (slow start threshold)

2. CONGESTION AVOIDANCE
   - After reaching ssthresh
   - cwnd increases by 1 MSS per RTT (linear growth)
   - "Additive Increase"

3. CONGESTION DETECTION
   - Timeout: Severe congestion
     → ssthresh = cwnd/2, cwnd = 1 MSS (back to slow start)
   - 3 Duplicate ACKs: Mild congestion (Fast Retransmit)
     → ssthresh = cwnd/2, cwnd = ssthresh (Fast Recovery)

       cwnd
        │
        │        /\
        │       /  \    ← Congestion detected
        │      /    \
        │     /      \──────── Linear (Congestion Avoidance)
        │    /
        │   /  ← Exponential (Slow Start)
        │  /
        │ /
        └────────────────────────── time
           ssthresh

# Visualize TCP congestion control
import matplotlib.pyplot as plt

def simulate_tcp_congestion_control(rounds=30, initial_ssthresh=16):
    """Simulate TCP Reno congestion control"""
    cwnd = 1  # Initial congestion window (MSS units)
    ssthresh = initial_ssthresh

    cwnd_history = [cwnd]
    ssthresh_history = [ssthresh]
    phases = ["Slow Start"]

    for round_num in range(1, rounds):
        # Simulate congestion event at certain points
        congestion_event = round_num in [12, 22]
        triple_dup_ack = round_num == 12  # Fast retransmit
        timeout = round_num == 22         # Timeout

        if congestion_event:
            if timeout:
                # Timeout: severe congestion
                ssthresh = max(cwnd // 2, 2)
                cwnd = 1  # Back to slow start
                phases.append("Timeout→SS")
            elif triple_dup_ack:
                # Fast Retransmit/Recovery
                ssthresh = max(cwnd // 2, 2)
                cwnd = ssthresh  # Fast recovery
                phases.append("3DupACK→FR")
        else:
            if cwnd < ssthresh:
                # Slow Start: exponential growth
                cwnd *= 2
                if phases[-1] != "Slow Start":
                    phases.append("Slow Start")
            else:
                # Congestion Avoidance: linear growth
                cwnd += 1
                if "Avoidance" not in phases[-1]:
                    phases.append("Cong. Avoidance")

        cwnd_history.append(cwnd)
        ssthresh_history.append(ssthresh)

    return cwnd_history, ssthresh_history, phases

# Generate data
cwnd_data, ssthresh_data, phases = simulate_tcp_congestion_control()

print("TCP Congestion Control Simulation (TCP Reno)")
print("=" * 60)
print(f"{'Round':<8} {'cwnd':<8} {'ssthresh':<10} {'Phase'}")
print("-" * 60)

phase_idx = 0
for i in range(0, len(cwnd_data), 3):  # Print every 3rd round
    phase = phases[min(phase_idx, len(phases)-1)]
    print(f"{i:<8} {cwnd_data[i]:<8} {ssthresh_data[i]:<10} {phase}")
    phase_idx += 1

print("\n" + "=" * 60)
print("Key Events:")
print("  Round 12: 3 Duplicate ACKs → Fast Retransmit/Recovery")
print("  Round 22: Timeout → Back to Slow Start")

Modern Algorithms

Modern Congestion Control Algorithms

Algorithm	Type	Key Feature	Used By
Reno	Loss-based	Fast Retransmit/Recovery	Classic default
CUBIC	Loss-based	Cubic function growth	Linux default
BBR	Model-based	Bandwidth & RTT estimation	Google, YouTube
BBR v2	Model-based	Better fairness	Google (newer)
DCTCP	ECN-based	For data centers	Azure, AWS


                        BBR (Bottleneck Bandwidth and RTT): Developed by Google, BBR doesn't wait for packet loss to detect congestion. Instead, it continuously estimates the bottleneck bandwidth and minimum RTT, achieving higher throughput on lossy links (like satellite) and reducing bufferbloat.


TCP Connection States

TCP Connection State Machine

stateDiagram-v2
    [*] --> CLOSED
    CLOSED --> LISTEN : Passive Open
    CLOSED --> SYN_SENT : Active Open (send SYN)
    LISTEN --> SYN_RCVD : Receive SYN (send SYN+ACK)
    SYN_SENT --> SYN_RCVD : Receive SYN (send SYN+ACK)
    SYN_SENT --> ESTABLISHED : Receive SYN+ACK (send ACK)
    SYN_RCVD --> ESTABLISHED : Receive ACK
    ESTABLISHED --> FIN_WAIT_1 : Close (send FIN)
    ESTABLISHED --> CLOSE_WAIT : Receive FIN (send ACK)
    FIN_WAIT_1 --> FIN_WAIT_2 : Receive ACK
    FIN_WAIT_1 --> CLOSING : Receive FIN (send ACK)
    FIN_WAIT_1 --> TIME_WAIT : Receive FIN+ACK (send ACK)
    FIN_WAIT_2 --> TIME_WAIT : Receive FIN (send ACK)
    CLOSING --> TIME_WAIT : Receive ACK
    CLOSE_WAIT --> LAST_ACK : Close (send FIN)
    LAST_ACK --> CLOSED : Receive ACK
    TIME_WAIT --> CLOSED : Timeout (2MSL)

State Machine

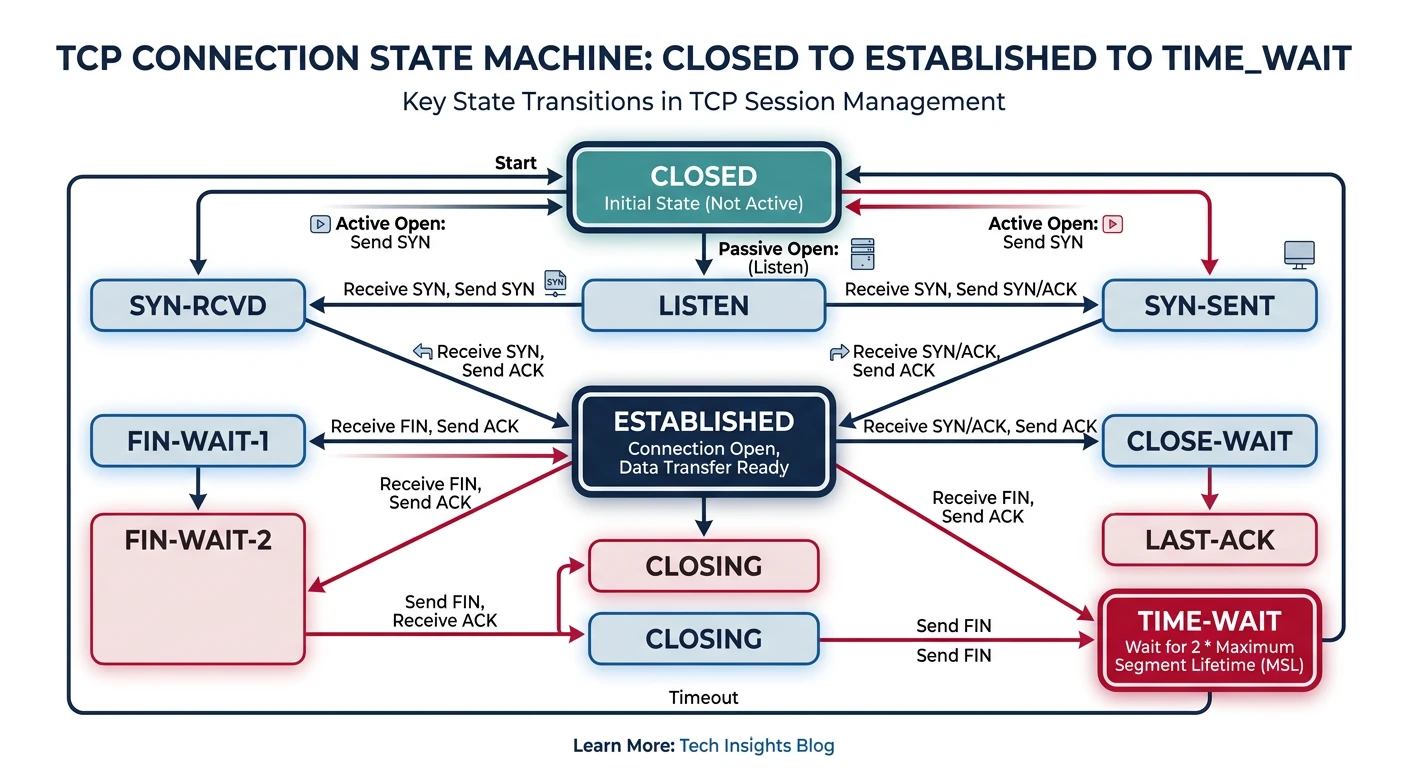

TCP State Diagram

                              ┌──────────┐
                              │  CLOSED  │
                              └────┬─────┘
                    Passive Open   │   Active Open
                    (listen)       │   (connect)
                         ┌─────────┴────────┐
                         ▼                  ▼
                   ┌──────────┐        ┌──────────┐
                   │  LISTEN  │        │ SYN_SENT │
                   └────┬─────┘        └────┬─────┘
              Recv SYN  │                   │ Recv SYN-ACK
              Send SYN-ACK                  │ Send ACK
                         │                  │
                         ▼                  │
                   ┌──────────────┐         │
                   │ SYN_RECEIVED │         │
                   └──────┬───────┘         │
                 Recv ACK │                 │
                          ▼                 ▼
                   ┌─────────────────────────┐
                   │      ESTABLISHED        │
                   │   (Data Transfer)       │
                   └───────────┬─────────────┘
                               │
            ┌──────────────────┼──────────────────┐
            │ Active Close     │                  │ Passive Close
            │ Send FIN         │                  │ Recv FIN
            ▼                  │                  ▼
      ┌───────────┐           │            ┌───────────┐
      │ FIN_WAIT_1│           │            │CLOSE_WAIT │
      └─────┬─────┘           │            └─────┬─────┘
   Recv ACK │                 │                  │ Send FIN
            ▼                 │                  ▼
      ┌───────────┐           │            ┌───────────┐
      │ FIN_WAIT_2│           │            │ LAST_ACK  │
      └─────┬─────┘           │            └─────┬─────┘
   Recv FIN │                 │                  │ Recv ACK
   Send ACK │                 │                  │
            ▼                 │                  ▼
      ┌───────────┐           │            ┌──────────┐
      │ TIME_WAIT │───────────┴────────────│  CLOSED  │
      └─────┬─────┘  2*MSL timeout         └──────────┘
            │
            ▼
      ┌──────────┐
      │  CLOSED  │
      └──────────┘

# View TCP connection states on your system

# Linux - All TCP connections with states
ss -tan
# or
netstat -tan

# Example output:
# State      Recv-Q Send-Q Local Address:Port  Peer Address:Port
# LISTEN     0      128    0.0.0.0:22          0.0.0.0:*
# ESTABLISHED 0      0     192.168.1.100:22    192.168.1.50:54321
# TIME_WAIT  0      0      192.168.1.100:80    10.0.0.5:45678

# Count connections by state
ss -tan | awk '{print $1}' | sort | uniq -c | sort -rn

# Windows
netstat -an | findstr TCP

# Watch connections in real-time (Linux)
watch -n 1 'ss -tan | head -20'

TCP Timers

Important TCP Timers

Timer	Purpose	Typical Value
Retransmission (RTO)	When to retransmit unacked segment	Dynamic (based on RTT)
Persist	Probe zero-window receiver	5-60 seconds
Keepalive	Check if idle connection alive	2 hours (default)
TIME_WAIT (2MSL)	Ensure final ACK delivered	60-120 seconds
FIN_WAIT_2	Wait for peer's FIN	60 seconds (Linux)


                        TIME_WAIT Accumulation: High-traffic servers can accumulate thousands of TIME_WAIT connections. Solutions:
                        tcp_tw_reuse: Allow reusing TIME_WAIT sockets for outgoing connections
Connection pooling: Reuse established connections
Load balancing: Distribute connections across servers

UDP: User Datagram Protocol

UDP is a connectionless, unreliable protocol that trades reliability for speed and simplicity.

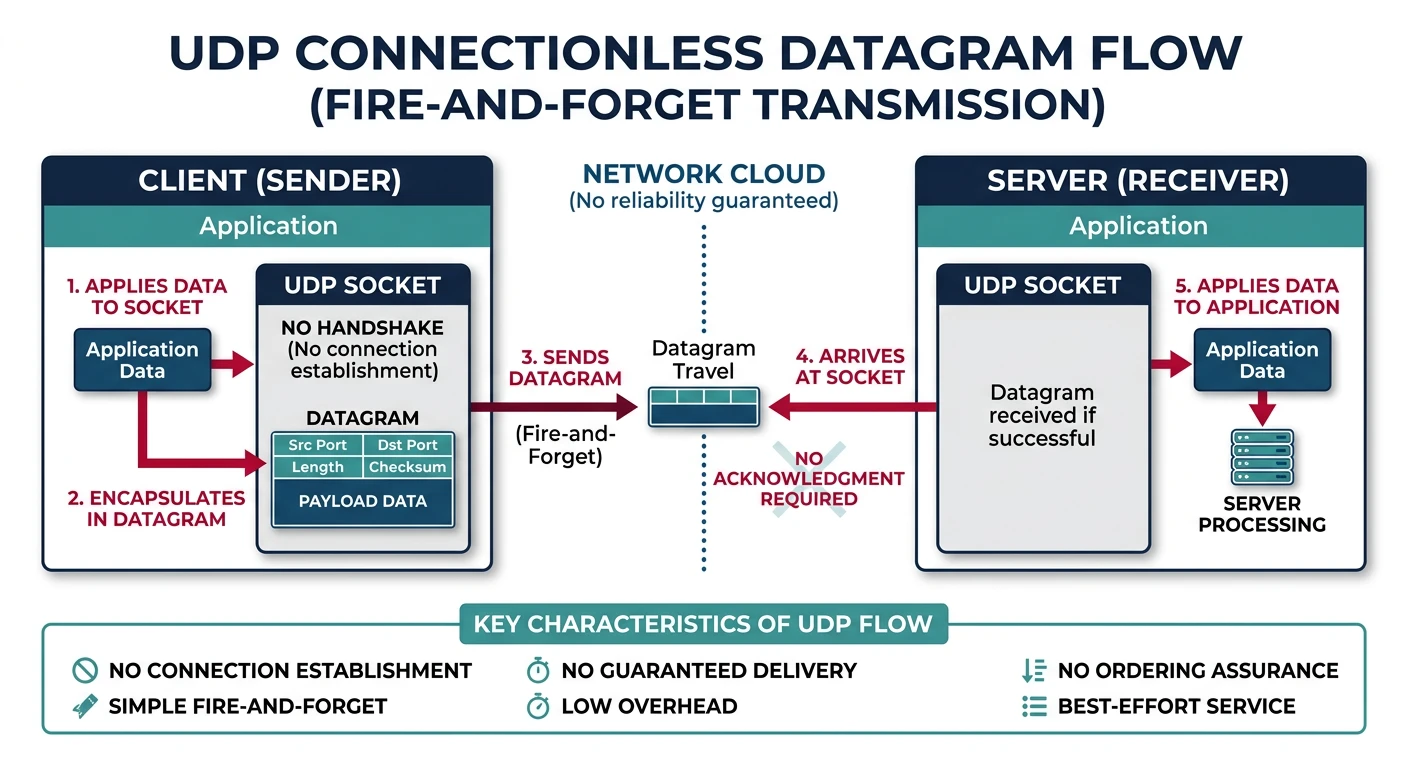

UDP connectionless datagram flow showing simple fire-and-forget transmission without handshake — UDP sends datagrams without establishing a connection — a simple fire-and-forget approach optimized for speed.

UDP Characteristics

UDP Key Features

Connectionless: No handshake, just send
Unreliable: No delivery guarantee, no retransmission
Unordered: Packets may arrive out of order
No flow/congestion control: Sender can blast data
Message-oriented: Preserves message boundaries
Low overhead: Only 8-byte header
Supports multicast/broadcast: One-to-many delivery

UDP Header Structure

UDP Header

UDP Datagram Header (8 bytes)

 0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|          Source Port          |       Destination Port        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|            Length             |           Checksum            |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                             Data                              |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Only 4 fields (compare to TCP's 10+):
- Source Port (16 bits): Sending application
- Destination Port (16 bits): Receiving application
- Length (16 bits): Header + Data length
- Checksum (16 bits): Optional in IPv4, mandatory in IPv6

Maximum UDP payload: 65,535 - 8 (UDP) - 20 (IP) = 65,507 bytes
Practical limit (MTU): ~1472 bytes (to avoid fragmentation)

When to Use UDP

Use Cases

UDP is Perfect For:

Application	Why UDP?
DNS	Small queries, fast responses needed. TCP fallback for large responses.
DHCP	Client doesn't have IP yet, needs broadcast.
VoIP/Video Calls	Real-time; late packets are useless. Better to skip than wait.
Online Gaming	Low latency critical. Old positions don't matter.
Live Streaming	Buffering > retransmission. Occasional drops acceptable.
IoT/Sensors	Simple devices, frequent updates. Loss of one reading okay.
SNMP	Network monitoring should be lightweight.
TFTP	Simple file transfer with app-level ACKs.

# Simple UDP client and server in Python
import socket

# UDP Server
def udp_server(host='127.0.0.1', port=12345):
    """Simple UDP echo server"""
    sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
    sock.bind((host, port))

    print(f"UDP Server listening on {host}:{port}")

    while True:
        data, addr = sock.recvfrom(1024)
        print(f"Received from {addr}: {data.decode()}")

        # Echo back
        response = f"Echo: {data.decode()}"
        sock.sendto(response.encode(), addr)

# UDP Client
def udp_client(message, host='127.0.0.1', port=12345):
    """Simple UDP client"""
    sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)

    try:
        # No connection needed - just send!
        sock.sendto(message.encode(), (host, port))
        print(f"Sent: {message}")

        # Wait for response (with timeout)
        sock.settimeout(2.0)
        data, addr = sock.recvfrom(1024)
        print(f"Received: {data.decode()}")

    except socket.timeout:
        print("No response (timeout)")
    finally:
        sock.close()

# Example usage (run server in one terminal, client in another):
print("UDP Example Code")
print("=" * 50)
print("Server: udp_server()")
print("Client: udp_client('Hello UDP!')")
print("\nNote: UDP is fire-and-forget - no connection setup!")

QUIC: The Future of Transport

QUIC (Quick UDP Internet Connections) is a modern transport protocol developed by Google and standardized by the IETF. It runs over UDP but provides TCP-like reliability with better performance.

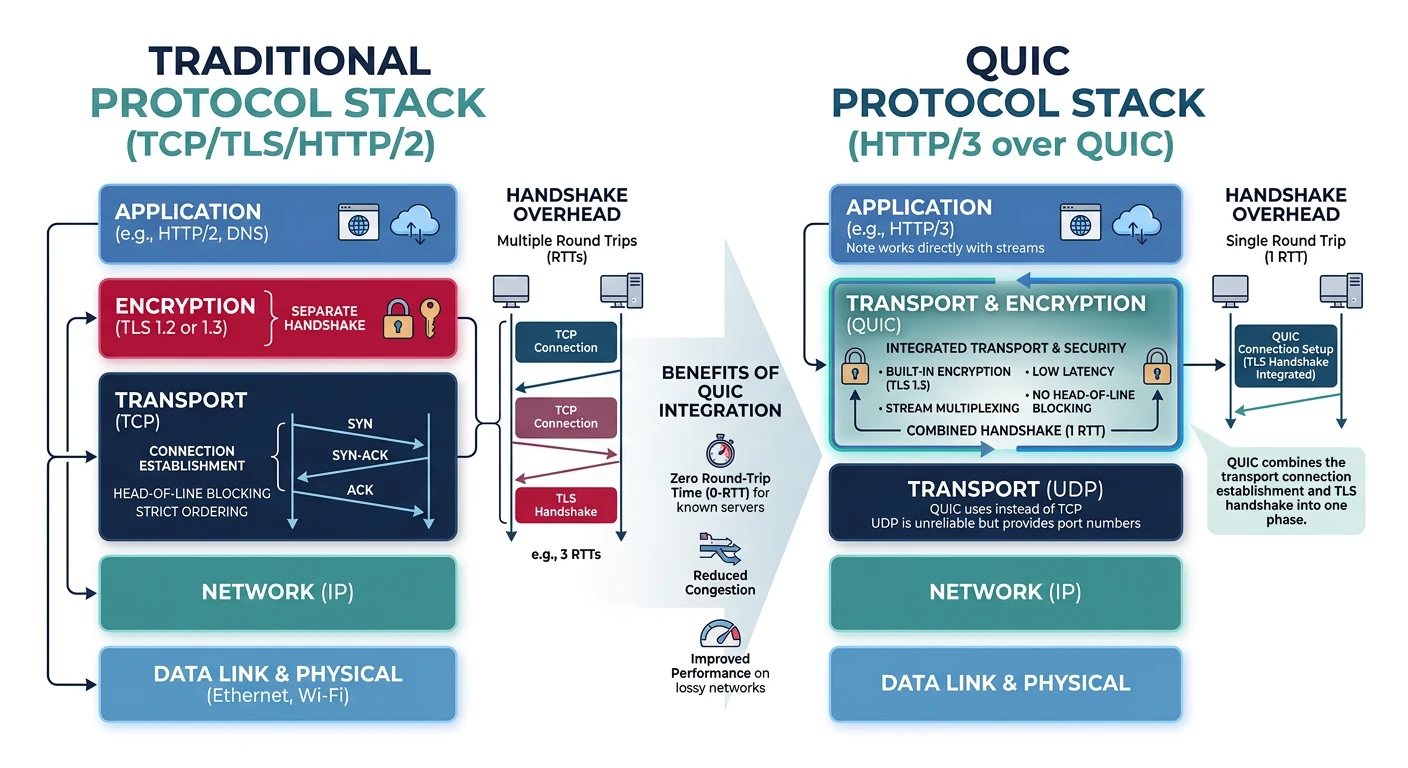

Comparison of QUIC and traditional TCP/TLS protocol stacks showing how QUIC combines transport and encryption — QUIC combines transport, encryption, and multiplexing into a single layer over UDP, replacing the TCP+TLS stack.

Why QUIC?

Problems QUIC Solves

Head-of-line blocking: In TCP, one lost packet blocks all streams. QUIC multiplexes independent streams.
Slow connection setup: TCP + TLS = 2-3 RTTs. QUIC combines them into 1 RTT (0-RTT for repeat visits).
Ossification: TCP can't evolve because middleboxes expect specific formats. QUIC is encrypted and flexible.
Connection migration: TCP connections break on IP change. QUIC uses connection IDs for seamless mobility.

QUIC Features

Key Features

QUIC Architecture

Traditional Stack vs QUIC Stack:

Traditional:              QUIC:
┌─────────────┐          ┌─────────────┐
│    HTTP/2   │          │   HTTP/3    │
├─────────────┤          ├─────────────┤
│     TLS     │          │    QUIC     │ ← Combines transport +
├─────────────┤          │  (over UDP) │   encryption + multiplexing
│     TCP     │          ├─────────────┤
├─────────────┤          │     UDP     │
│     IP      │          ├─────────────┤
└─────────────┘          │     IP      │
                         └─────────────┘

QUIC Advantages:
┌────────────────────────────────────────────────────────────┐
│ Feature              │ TCP+TLS         │ QUIC             │
├──────────────────────┼─────────────────┼──────────────────┤
│ Connection setup     │ 2-3 RTT         │ 1 RTT (0-RTT)    │
│ Encryption           │ Optional        │ Always on        │
│ Stream multiplexing  │ App layer       │ Native           │
│ Head-of-line block   │ Yes             │ Per-stream only  │
│ Connection migration │ No              │ Yes              │
│ Packet pacing        │ Kernel          │ User space       │
└──────────────────────┴─────────────────┴──────────────────┘

Connection Setup

QUIC 0-RTT and 1-RTT Connection

First Connection (1-RTT):

Client                              Server
   |                                   |
   | INITIAL (ClientHello + QUIC)      |
   |---------------------------------->|
   |                                   |
   | INITIAL (ServerHello + QUIC)      |
   | HANDSHAKE (Encrypted Extensions)  |
   |<----------------------------------|
   |                                   |
   | HANDSHAKE (Finished)              |
   | + APPLICATION DATA                | ← Data in 1 RTT!
   |---------------------------------->|
   |                                   |

Repeat Connection (0-RTT):

Client                              Server
   |                                   |
   | INITIAL + 0-RTT DATA              | ← Data immediately!
   |---------------------------------->| (using cached keys)
   |                                   |
   | INITIAL + HANDSHAKE + 1-RTT DATA  |
   |<----------------------------------|
   |                                   |

0-RTT allows sending data before handshake completes
(slight replay attack risk, use for idempotent requests)

QUIC vs TCP Comparison

Comparison

Detailed QUIC vs TCP

Aspect	TCP	QUIC
Underlying Protocol	Native (kernel)	Over UDP (user space)
Encryption	Separate (TLS)	Integrated (TLS 1.3)
Streams	Single ordered stream	Multiple independent streams
Connection ID	4-tuple (IPs + ports)	Connection ID (survives IP change)
Header	Visible to middleboxes	Encrypted (prevents ossification)
Congestion Control	Kernel implementation	User space (easy to update)
Deployment	Universal	Growing (Google, Cloudflare, Meta)

# Check if a website supports HTTP/3 (QUIC)

# Using curl (if compiled with HTTP/3 support)
curl --http3 -I https://www.google.com

# Using online tools:
# https://http3check.net/
# https://www.http3check.com/

# Check Alt-Svc header (advertises HTTP/3 support)
curl -sI https://www.google.com | grep -i alt-svc
# Output: alt-svc: h3=":443"; ma=2592000

# In browser DevTools:
# Network tab → Protocol column shows "h3" for HTTP/3

# Chrome flags to enable/test QUIC:
# chrome://flags/#enable-quic


                        HTTP/3 Adoption: As of 2024, ~30% of web traffic uses HTTP/3 (QUIC). Major adopters include Google (YouTube, Search), Facebook, Cloudflare, and most CDNs. Check your favorite sites with the tools above!


Protocol Comparison

Summary

TCP vs UDP vs QUIC

Feature	TCP	UDP	QUIC
Connection	Required (3-way)	None	Required (1-RTT)
Reliability	✅ Guaranteed	❌ None	✅ Guaranteed
Ordering	✅ Ordered	❌ Unordered	✅ Per-stream
Flow Control	✅ Yes	❌ No	✅ Yes
Congestion Control	✅ Yes	❌ No	✅ Yes (pluggable)
Header Size	20-60 bytes	8 bytes	Variable (encrypted)
Encryption	Optional (TLS)	None built-in	✅ Mandatory
Multiplexing	Application layer	None	✅ Native streams
Best For	Web, email, files	Gaming, VoIP, DNS	Modern web, mobile


                        Choosing a Protocol:
                        Use TCP when you need reliable, ordered delivery and broad compatibility
Use UDP when speed matters more than reliability (real-time, lossy-tolerant)
Use QUIC for modern web applications needing fast, encrypted, multiplexed connections

Hands-On Exercises

Exercise 1: TCP Socket Programming

# Complete TCP client-server example
import socket
import threading

def tcp_server(host='127.0.0.1', port=9999):
    """TCP Echo Server with connection handling"""
    server = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    server.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
    server.bind((host, port))
    server.listen(5)

    print(f"TCP Server listening on {host}:{port}")
    print("States: CLOSED → LISTEN")

    while True:
        client_socket, addr = server.accept()
        print(f"\nConnection from {addr}")
        print("States: LISTEN → SYN_RECEIVED → ESTABLISHED")

        # Handle client in thread
        thread = threading.Thread(
            target=handle_client,
            args=(client_socket, addr)
        )
        thread.start()

def handle_client(client_socket, addr):
    """Handle individual client connection"""
    try:
        while True:
            data = client_socket.recv(1024)
            if not data:
                break

            message = data.decode()
            print(f"Received from {addr}: {message}")

            # Echo back with modification
            response = f"Server received: {message}"
            client_socket.send(response.encode())
    except ConnectionResetError:
        print(f"Connection reset by {addr}")
    finally:
        print(f"Closing connection with {addr}")
        print("States: ESTABLISHED → FIN_WAIT/CLOSE_WAIT → CLOSED")
        client_socket.close()

def tcp_client(messages, host='127.0.0.1', port=9999):
    """TCP Client with multiple messages"""
    client = socket.socket(socket.AF_INET, socket.SOCK_STREAM)

    print(f"Connecting to {host}:{port}")
    print("States: CLOSED → SYN_SENT → ESTABLISHED")

    client.connect((host, port))

    try:
        for msg in messages:
            print(f"\nSending: {msg}")
            client.send(msg.encode())

            response = client.recv(1024)
            print(f"Received: {response.decode()}")
    finally:
        print("\nClosing connection")
        print("States: ESTABLISHED → FIN_WAIT_1 → FIN_WAIT_2 → TIME_WAIT → CLOSED")
        client.close()

# Example usage
print("TCP Socket Programming Example")
print("=" * 50)
print("1. Run server:  tcp_server()")
print("2. Run client:  tcp_client(['Hello', 'World', 'TCP'])")
print("\nThe server handles multiple clients concurrently.")

Exercise 2: Packet Analysis with Scapy

# Analyze TCP packets with Scapy (requires: pip install scapy)
# Note: Requires root/admin privileges

try:
    from scapy.all import IP, TCP, UDP, sr1, send, sniff
    SCAPY_AVAILABLE = True
except ImportError:
    SCAPY_AVAILABLE = False
    print("Scapy not installed. Install with: pip install scapy")

def analyze_tcp_flags(packet):
    """Analyze TCP flags in a packet"""
    if not SCAPY_AVAILABLE:
        return

    flags = {
        'F': 'FIN',
        'S': 'SYN',
        'R': 'RST',
        'P': 'PSH',
        'A': 'ACK',
        'U': 'URG',
        'E': 'ECE',
        'C': 'CWR'
    }

    if TCP in packet:
        tcp = packet[TCP]
        print(f"Source Port: {tcp.sport}")
        print(f"Dest Port: {tcp.dport}")
        print(f"Seq: {tcp.seq}")
        print(f"Ack: {tcp.ack}")
        print(f"Window: {tcp.window}")

        # Parse flags
        flag_str = str(tcp.flags)
        active_flags = [flags.get(f, f) for f in flag_str]
        print(f"Flags: {', '.join(active_flags)}")

def craft_syn_packet(target_ip, target_port):
    """Craft a TCP SYN packet (educational purposes)"""
    if not SCAPY_AVAILABLE:
        print("Example SYN packet structure:")
        print("  IP(dst='target') / TCP(dport=80, flags='S')")
        return None

    # Create IP layer
    ip = IP(dst=target_ip)

    # Create TCP layer with SYN flag
    tcp = TCP(dport=target_port, flags='S', seq=1000)

    # Combine layers
    packet = ip / tcp

    print("Crafted SYN Packet:")
    print(f"  Destination: {target_ip}:{target_port}")
    print(f"  Flags: SYN")
    print(f"  Seq: 1000")

    return packet

# Example without running (for safety)
print("TCP Packet Crafting Example (Scapy)")
print("=" * 50)
print("Note: Actually sending packets requires root privileges")
print("\nExample code to send SYN and receive SYN-ACK:")
print("""
from scapy.all import IP, TCP, sr1

# Craft SYN packet
syn = IP(dst='example.com') / TCP(dport=80, flags='S')

# Send and wait for response
syn_ack = sr1(syn, timeout=2)

# Analyze response
if syn_ack and syn_ack[TCP].flags == 'SA':
    print('Received SYN-ACK!')
    print(f'Server seq: {syn_ack[TCP].seq}')
""")

Self-Assessment

Quiz: Test Your Knowledge

What are the three steps in TCP connection establishment? (SYN, SYN-ACK, ACK)
What's the size of UDP header? (8 bytes)
What TCP flag gracefully closes a connection? (FIN)
What port range is "well-known"? (0-1023)
What does cwnd stand for? (Congestion Window)
Why does QUIC use UDP underneath? (To bypass middlebox ossification)
What timer keeps TCP from sending to a full buffer? (Persist timer)
What's the TIME_WAIT duration formula? (2 × MSL)

Summary & Next Steps


                        Key Takeaways:
                        Ports identify applications; sockets = IP + port
TCP provides reliable, ordered, connection-oriented delivery
Three-way handshake: SYN → SYN-ACK → ACK establishes connection
Flow control prevents overwhelming receiver; congestion control protects network
UDP is fast and simple but unreliable—great for real-time apps
QUIC combines TCP reliability with UDP flexibility, built-in encryption
HTTP/3 uses QUIC—the future of web transport



Quick Reference

Transport Layer Cheat Sheet

TCP: Reliable, ordered, connection-oriented (HTTP, SSH, email)
UDP: Fast, simple, connectionless (DNS, VoIP, gaming)
QUIC: Modern, encrypted, multiplexed (HTTP/3)
Well-known ports: 0-1023 (HTTP=80, HTTPS=443, SSH=22)
Ephemeral ports: 49152-65535 (client connections)
