Complete Protocols Master Part 8: DNS Deep Dive

DNS Resolution Process

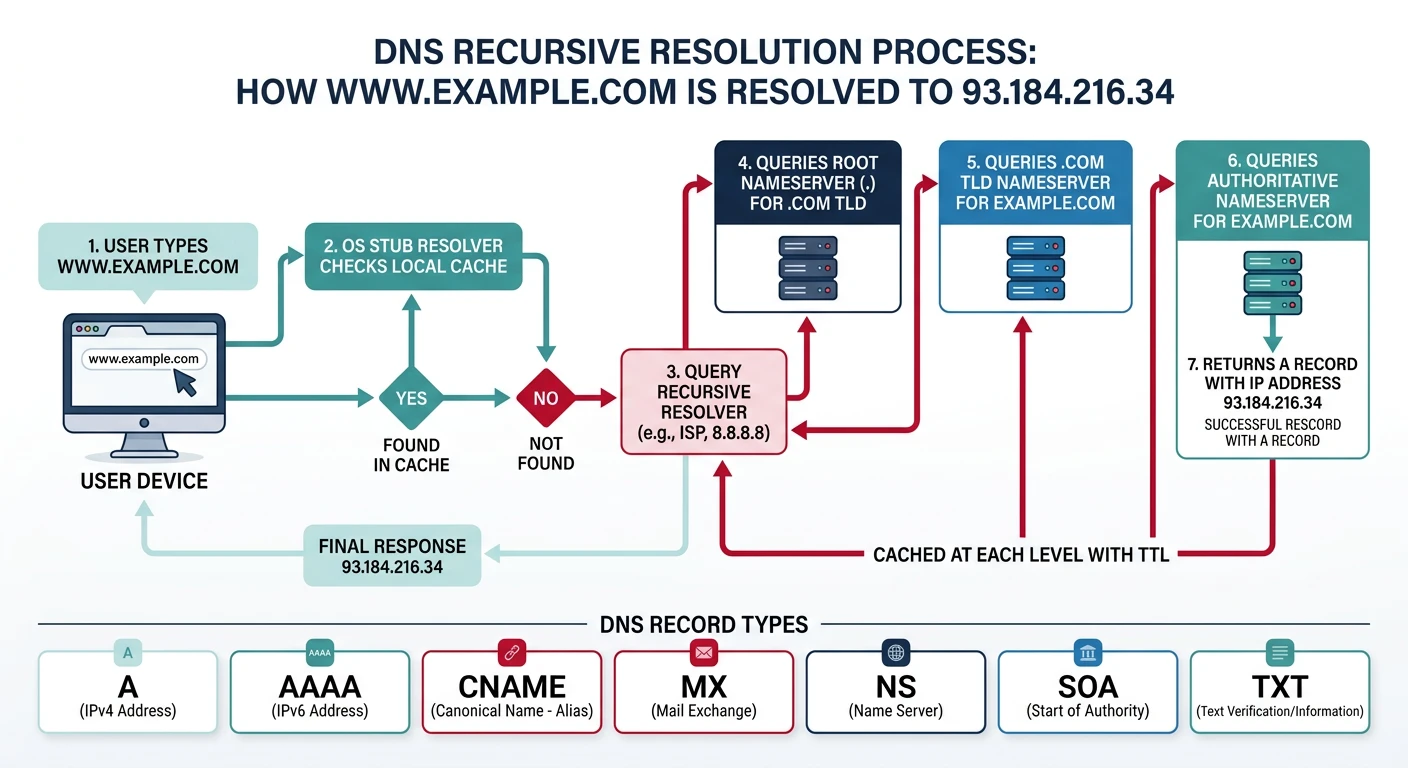

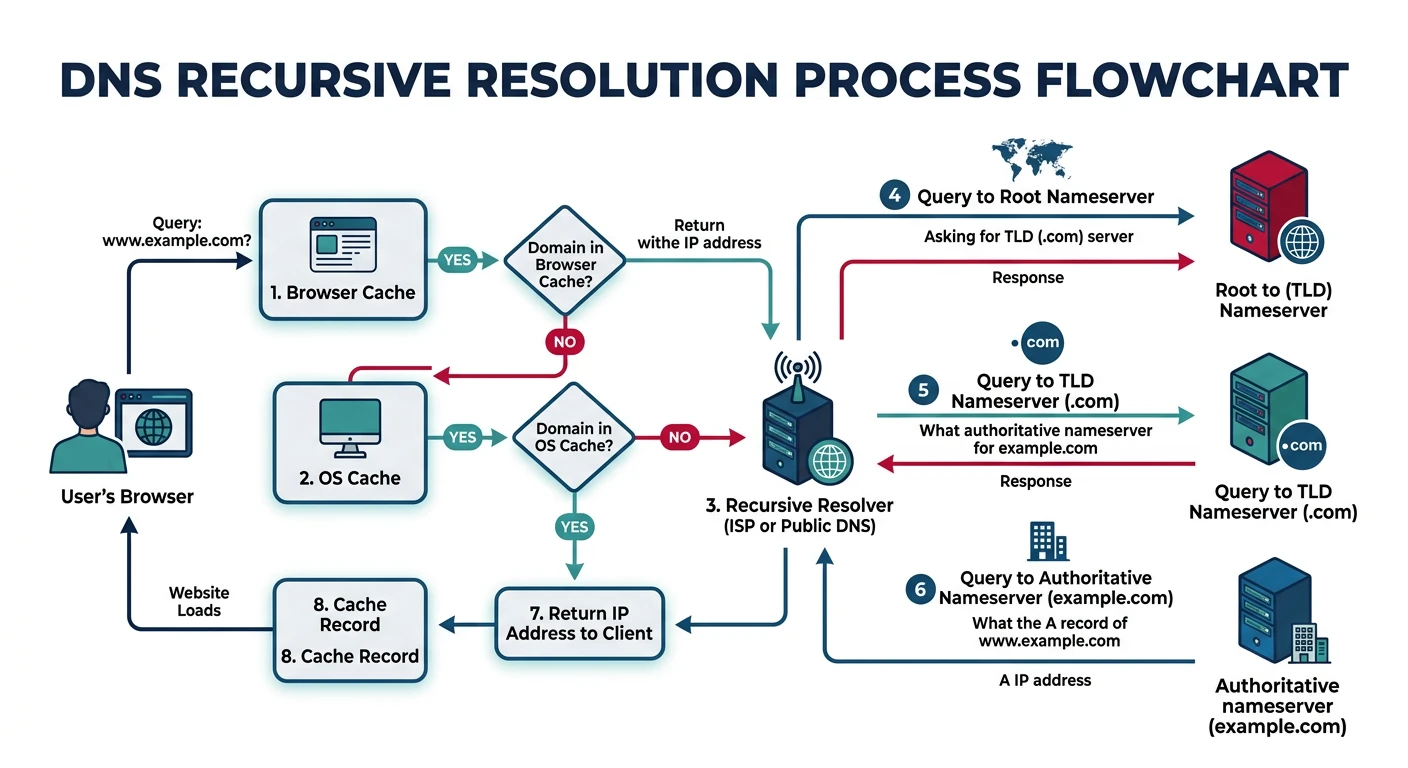

DNS Resolution: What happens when you type www.example.com

1. Browser Cache Check
   └── Browser has its own DNS cache (Chrome: chrome://net-internals/#dns)

2. OS Cache Check
   └── Operating system resolver cache

3. Query Recursive Resolver (ISP or 8.8.8.8)
   └── If cached, return immediately

4. Query Root Nameserver (.)
   └── "I don't know example.com, but .com is handled by..."
   └── Returns .com TLD nameserver addresses

5. Query TLD Nameserver (.com)
   └── "I don't know www.example.com, but example.com is handled by..."
   └── Returns example.com authoritative nameserver

6. Query Authoritative Nameserver (example.com)
   └── "www.example.com is at 93.184.216.34"
   └── Returns the A record with IP address

7. Response Cached at Each Level
   └── TTL determines how long to cache

8. Browser Connects to IP Address

Total time: Typically 20-120ms (uncached)
Cached: <1ms

Recursive vs Iterative Queries

Two Types of DNS Queries:

RECURSIVE QUERY (Client → Resolver)
──────────────────────────────────────────────
Client asks resolver: "What's the IP of www.example.com?"
Resolver does ALL the work and returns final answer.

Client                    Recursive Resolver
   │                            │
   │─── "www.example.com?" ────>│ (resolver queries root, tld, auth)
   │                            │
   │<── "93.184.216.34" ────────│
   │                            │

ITERATIVE QUERY (Resolver → Nameservers)
──────────────────────────────────────────────
Resolver asks each server, gets referrals, follows them.

Resolver                  Root Server
   │                            │
   │─── "www.example.com?" ────>│
   │<── "Try .com servers" ─────│

Resolver                  .com TLD Server
   │                            │
   │─── "www.example.com?" ────>│
   │<── "Try ns1.example.com" ──│

Resolver                  example.com Auth Server
   │                            │
   │─── "www.example.com?" ────>│
   │<── "93.184.216.34" ────────│

In Practice:
• Your computer → Resolver: RECURSIVE
• Resolver → DNS Servers: ITERATIVE

# DNS resolution demonstration
import socket

def dns_lookup(hostname):
    """Demonstrate basic DNS lookup using system resolver"""
    print(f"\nDNS Lookup for: {hostname}")
    print("=" * 50)

    try:
        # Get all address info (IPv4 and IPv6)
        results = socket.getaddrinfo(hostname, None)

        seen = set()
        for result in results:
            family, socktype, proto, canonname, sockaddr = result
            ip = sockaddr[0]

            if ip not in seen:
                seen.add(ip)
                family_name = "IPv4" if family == socket.AF_INET else "IPv6"
                print(f"  {family_name}: {ip}")

        return list(seen)
    except socket.gaierror as e:
        print(f"  DNS lookup failed: {e}")
        return []

# Examples
hostnames = ["google.com", "github.com", "cloudflare.com"]

for hostname in hostnames:
    dns_lookup(hostname)

print("\n" + "=" * 50)
print("Note: Results may vary based on your location and DNS resolver")

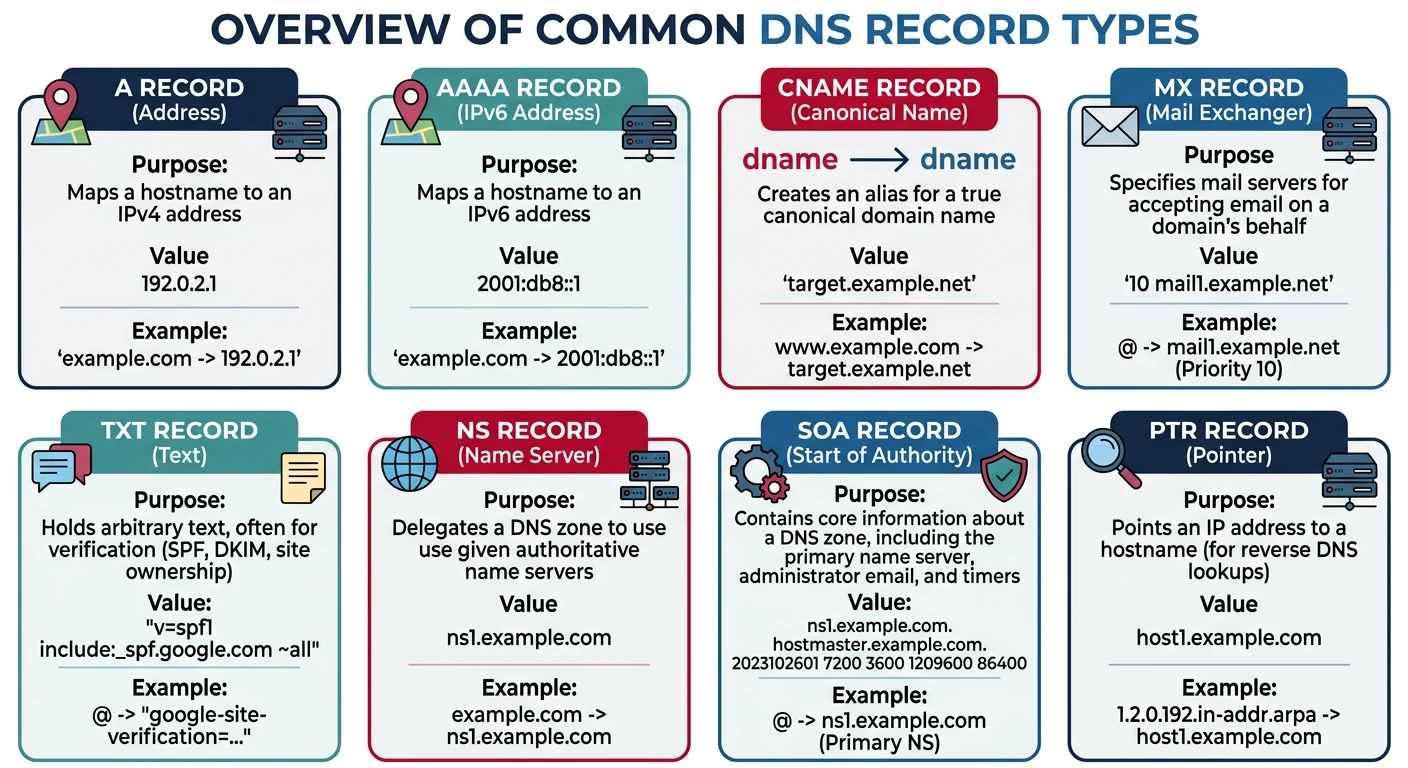

DNS Record Types

# DNS record examples (dig/nslookup commands)

# A Record - IPv4 Address
$ dig example.com A +short
93.184.216.34

# AAAA Record - IPv6 Address
$ dig google.com AAAA +short
2607:f8b0:4004:800::200e

# CNAME Record - Alias
$ dig www.github.com CNAME +short
github.com.

# MX Records - Mail Servers (with priority)
$ dig google.com MX +short
10 smtp.google.com.
20 smtp2.google.com.
30 smtp3.google.com.

# TXT Records - Various purposes
$ dig google.com TXT +short
"v=spf1 include:_spf.google.com ~all"
"google-site-verification=..."

# NS Records - Nameservers
$ dig example.com NS +short
a.iana-servers.net.
b.iana-servers.net.

# SOA Record - Zone Information
$ dig example.com SOA +short
ns.icann.org. noc.dns.icann.org. 2024012001 7200 3600 1209600 3600

# PTR Record - Reverse DNS
$ dig -x 8.8.8.8 +short
dns.google.

Special DNS Records

Service Discovery Records:

SRV Record - Service Location
_service._protocol.domain TTL class SRV priority weight port target
_sip._tcp.example.com. 300 IN SRV 10 5 5060 sipserver.example.com.
_xmpp-server._tcp.example.com. 300 IN SRV 5 0 5269 xmpp.example.com.

Used by: LDAP, Kerberos, SIP, XMPP, Minecraft servers

──────────────────────────────────────────────────────

Security Records:

CAA Record - Certificate Authority Authorization
example.com. CAA 0 issue "letsencrypt.org"
example.com. CAA 0 issuewild ";"         # No wildcard certs
example.com. CAA 0 iodef "mailto:security@example.com"

TLSA Record - DANE (TLS Certificate Pinning)
_443._tcp.example.com. TLSA 3 1 1 abc123...

DNSKEY/DS/RRSIG - DNSSEC (covered below)

──────────────────────────────────────────────────────

Email Authentication:

SPF (TXT Record) - Who can send email
"v=spf1 ip4:192.0.2.0/24 include:_spf.google.com ~all"

DKIM (TXT Record) - Email signing
selector._domainkey.example.com. TXT "v=DKIM1; k=rsa; p=MIGf..."

DMARC (TXT Record) - Email policy
_dmarc.example.com. TXT "v=DMARC1; p=reject; rua=mailto:dmarc@example.com"

# DNS record query demonstration
import socket
import struct

def explain_dns_records():
    """Explain DNS record types with examples"""

    records = {
        "A": {
            "purpose": "Maps domain to IPv4 address",
            "example": "example.com → 93.184.216.34",
            "use_case": "Website hosting, any IPv4 service"
        },
        "AAAA": {
            "purpose": "Maps domain to IPv6 address",
            "example": "example.com → 2606:2800:220:1::248",
            "use_case": "IPv6-enabled services"
        },
        "CNAME": {
            "purpose": "Alias one domain to another",
            "example": "www.example.com → example.com",
            "use_case": "Subdomains, CDN integration"
        },
        "MX": {
            "purpose": "Mail server with priority",
            "example": "10 mail.example.com",
            "use_case": "Email routing"
        },
        "TXT": {
            "purpose": "Arbitrary text data",
            "example": "v=spf1 include:_spf.google.com ~all",
            "use_case": "SPF, DKIM, domain verification"
        },
        "NS": {
            "purpose": "Authoritative nameservers",
            "example": "ns1.example.com",
            "use_case": "DNS delegation"
        },
        "SRV": {
            "purpose": "Service discovery",
            "example": "_sip._tcp.example.com → sipserver:5060",
            "use_case": "VoIP, XMPP, gaming servers"
        },
        "CAA": {
            "purpose": "Certificate authority restrictions",
            "example": "0 issue 'letsencrypt.org'",
            "use_case": "SSL/TLS certificate control"
        }
    }

    print("DNS Record Types Reference")
    print("=" * 70)

    for record_type, info in records.items():
        print(f"\n{record_type} Record")
        print("-" * 40)
        print(f"  Purpose:  {info['purpose']}")
        print(f"  Example:  {info['example']}")
        print(f"  Use Case: {info['use_case']}")

explain_dns_records()

DNS Caching & TTL

DNS Caching Layers:

1. BROWSER CACHE
   Chrome: ~1 minute (internal)
   Firefox: Respects TTL (up to 1 hour)

2. OPERATING SYSTEM CACHE
   Windows: ipconfig /displaydns
   macOS: sudo dscacheutil -cachedump
   Linux: systemd-resolved, nscd, dnsmasq

3. RECURSIVE RESOLVER CACHE
   ISP resolver or public DNS (8.8.8.8, 1.1.1.1)
   Respects TTL from authoritative response

4. AUTHORITATIVE NAMESERVER
   Sets the TTL for the zone

TTL Values (in seconds):
──────────────────────────────────────────────
300     (5 min)   → Dynamic services, failover
3600    (1 hour)  → Typical websites
86400   (1 day)   → Stable infrastructure
604800  (1 week)  → Very stable records

Trade-offs:
• Low TTL: Fast changes, more DNS traffic
• High TTL: Better caching, slower propagation

Best Practice:
1. Use low TTL before planned changes
2. Make the change
3. Increase TTL after propagation

# DNS cache and TTL commands

# Windows - View DNS cache
ipconfig /displaydns

# Windows - Clear DNS cache
ipconfig /flushdns

# macOS - Clear DNS cache
sudo dscacheutil -flushcache; sudo killall -HUP mDNSResponder

# Linux (systemd) - Clear DNS cache
sudo systemd-resolve --flush-caches
sudo systemd-resolve --statistics

# Check TTL of a record
$ dig example.com +ttlunits
example.com.    21h IN A 93.184.216.34

# Trace full resolution (shows TTL at each step)
$ dig +trace example.com

# Query specific nameserver (bypass cache)
$ dig @8.8.8.8 example.com
$ dig @ns1.example.com example.com

DNSSEC Security

DNSSEC (Domain Name System Security Extensions) adds cryptographic authentication to DNS responses, preventing spoofing and cache poisoning attacks.

DNS Security Threats (Why DNSSEC Matters):

1. DNS SPOOFING / CACHE POISONING
   Attacker injects false DNS responses into resolver cache

   User: "What's the IP for bank.com?"
   Attacker: "It's 192.168.1.100 (my malicious server)"

   Result: User visits fake banking site

2. MAN-IN-THE-MIDDLE (MITM)
   Attacker intercepts DNS queries on local network
   WiFi hotspots, compromised routers

3. DNS HIJACKING
   Attacker changes DNS settings on router/computer
   Malware, compromised ISP

4. DDoS via DNS AMPLIFICATION
   Small query → Large response
   Attacker spoofs victim IP, floods with DNS queries

Protection Layers:
├── DNSSEC: Authenticates DNS responses
├── DoH (DNS over HTTPS): Encrypts queries
├── DoT (DNS over TLS): Encrypts queries
└── Private DNS: Trusted resolvers (1.1.1.1, 8.8.8.8)

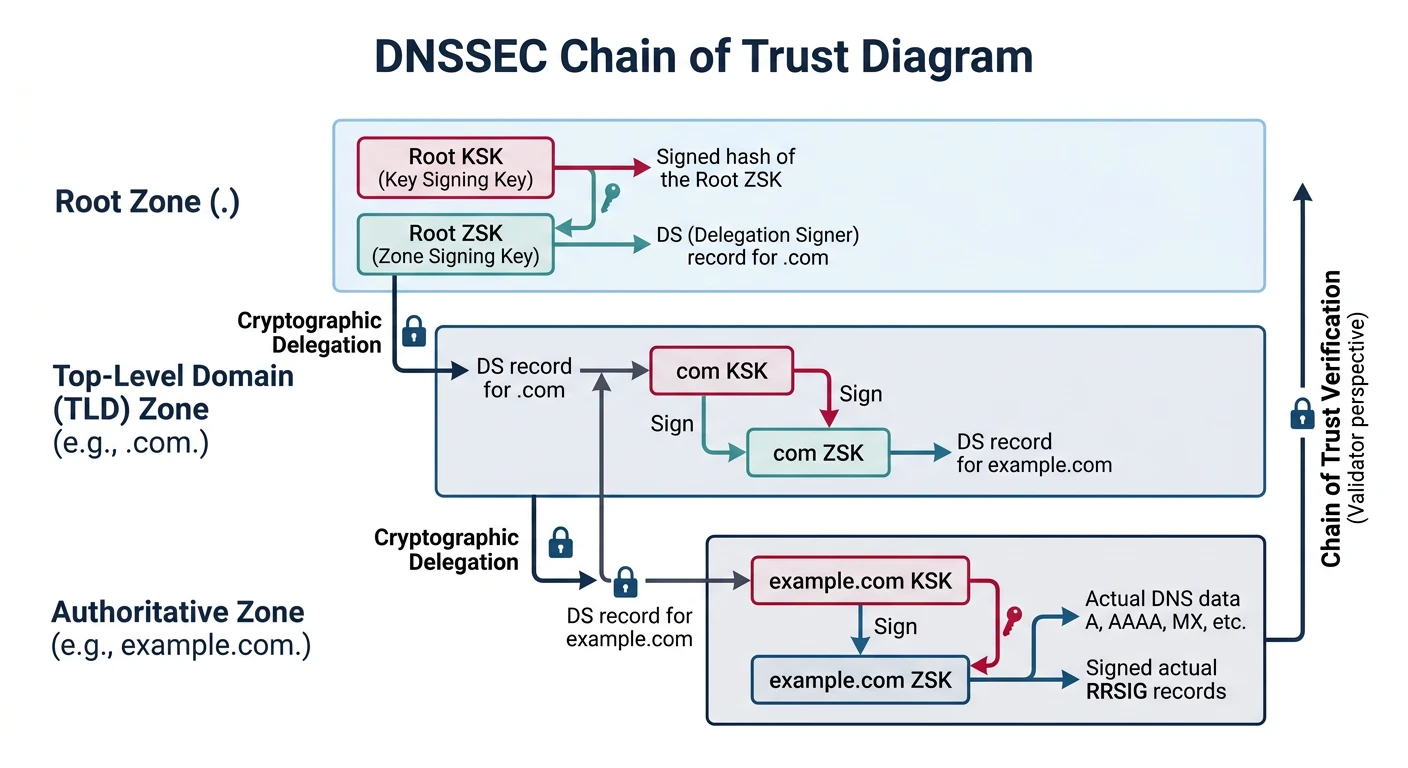

DNSSEC Chain of Trust:

1. Root Zone Signs .com
   Root publishes DS record for .com
   .com's DNSKEY verified by root's signature

2. .com Signs example.com
   .com publishes DS record for example.com
   example.com's DNSKEY verified by .com's signature

3. example.com Signs Records
   All A, MX, TXT records signed with RRSIG

Chain: Root → .com → example.com → www.example.com
         ↓
      Trust Anchor (Root DNSKEY is pre-configured)

DNSSEC Record Types:
─────────────────────────────────────────────────────
DNSKEY: Zone's public signing key
DS:     Hash of child zone's DNSKEY (delegation)
RRSIG:  Signature for each record set
NSEC/NSEC3: Proof of non-existence

Validation:
1. Resolver gets RRSIG with A record
2. Resolver fetches DNSKEY for zone
3. Resolver verifies signature with DNSKEY
4. Resolver validates DNSKEY with parent DS
5. Chain continues to root trust anchor

# DNSSEC verification commands

# Check if domain has DNSSEC
$ dig example.com +dnssec +short
93.184.216.34
A 13 2 86400 20240301000000 20240215000000 12345 example.com. [signature]

# Get DNSKEY records
$ dig example.com DNSKEY +short
256 3 13 [ZSK public key]
257 3 13 [KSK public key]

# Get DS record from parent
$ dig example.com DS +short
12345 13 2 abc123...

# Full DNSSEC chain validation
$ dig +sigchase +trusted-key=/etc/trusted-key.key example.com A

# Check DNSSEC with external validator
$ dig @8.8.8.8 example.com +dnssec +cd  # CD = Checking Disabled
$ dig @8.8.8.8 example.com +dnssec      # Full validation

# Online tools:
# - dnsviz.net (visual DNSSEC chain)
# - dnssec-analyzer.verisignlabs.com

Advanced DNS Patterns

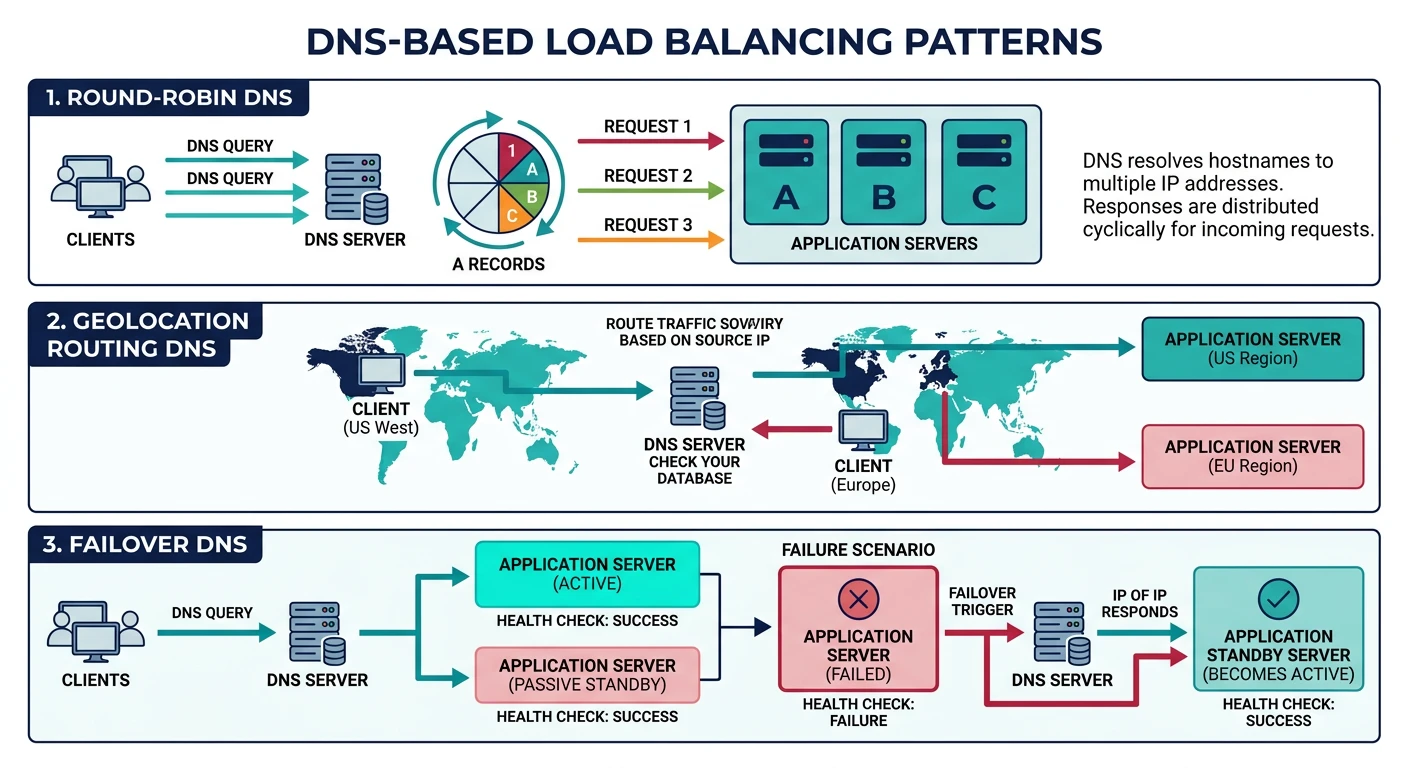

DNS Load Balancing Techniques:

1. ROUND-ROBIN DNS
   Multiple A records, rotated each query

   example.com.  A  192.0.2.1
   example.com.  A  192.0.2.2
   example.com.  A  192.0.2.3

   Limitation: No health checking, uneven distribution

2. WEIGHTED ROUND-ROBIN
   Traffic percentage control (Route 53, Cloudflare)

   server1.example.com  A  192.0.2.1  (weight: 70)
   server2.example.com  A  192.0.2.2  (weight: 30)

3. GEOLOCATION DNS
   Route users to nearest datacenter

   US users  → us-east.example.com
   EU users  → eu-west.example.com
   Asia users → ap-south.example.com

   Providers: Route 53, Cloudflare, NS1

4. LATENCY-BASED DNS
   Route to lowest-latency server (measured)

5. FAILOVER DNS
   Health checks + automatic failover

   Primary:   192.0.2.1 (healthy)   ← Active
   Secondary: 192.0.2.2 (standby)

   If primary fails → DNS returns secondary

6. ANYCAST DNS
   Same IP advertised from multiple locations
   BGP routes to nearest instance

   Used by: Root servers, CDNs, Cloudflare

# DNS-based service discovery simulation
import random

class SimpleDNSLoadBalancer:
    """Demonstrate DNS-based load balancing concepts"""

    def __init__(self, name):
        self.name = name
        self.records = []

    def add_record(self, ip, weight=1, region=None, healthy=True):
        """Add a server to the pool"""
        self.records.append({
            "ip": ip,
            "weight": weight,
            "region": region,
            "healthy": healthy
        })

    def round_robin(self):
        """Simple round-robin (rotate through all)"""
        healthy = [r for r in self.records if r["healthy"]]
        if not healthy:
            return None
        # In real DNS, this rotates the order
        return [r["ip"] for r in healthy]

    def weighted(self):
        """Weighted selection"""
        healthy = [r for r in self.records if r["healthy"]]
        if not healthy:
            return None

        # Build weighted pool
        pool = []
        for r in healthy:
            pool.extend([r["ip"]] * r["weight"])

        return random.choice(pool)

    def geolocation(self, user_region):
        """Geo-based selection"""
        # Find server in user's region
        for r in self.records:
            if r["region"] == user_region and r["healthy"]:
                return r["ip"]

        # Fallback to any healthy server
        healthy = [r for r in self.records if r["healthy"]]
        return healthy[0]["ip"] if healthy else None

    def failover(self):
        """Primary/secondary failover"""
        for r in self.records:
            if r["healthy"]:
                return r["ip"]
        return None

# Demo
print("DNS Load Balancing Simulation")
print("=" * 50)

lb = SimpleDNSLoadBalancer("api.example.com")
lb.add_record("192.0.2.1", weight=3, region="us-east", healthy=True)
lb.add_record("192.0.2.2", weight=1, region="eu-west", healthy=True)
lb.add_record("192.0.2.3", weight=2, region="ap-south", healthy=True)

print("\n1. Round-Robin DNS:")
print(f"   All IPs returned: {lb.round_robin()}")

print("\n2. Weighted Selection (5 queries):")
for i in range(5):
    print(f"   Query {i+1}: {lb.weighted()}")

print("\n3. Geolocation DNS:")
for region in ["us-east", "eu-west", "ap-south", "unknown"]:
    result = lb.geolocation(region)
    print(f"   User in {region}: {result}")

print("\n4. Failover (mark primary unhealthy):")
lb.records[0]["healthy"] = False
print(f"   With primary down: {lb.failover()}")

Hands-On Exercises

# Practice: DNS investigation commands

# 1. Basic lookup
dig google.com

# 2. Specific record types
dig google.com A
dig google.com AAAA
dig google.com MX
dig google.com TXT
dig google.com NS

# 3. Trace full resolution path
dig +trace google.com

# 4. Check DNSSEC
dig google.com +dnssec

# 5. Query specific nameserver
dig @8.8.8.8 google.com
dig @1.1.1.1 google.com

# 6. Reverse DNS
dig -x 8.8.8.8

# 7. Short output (just the answer)
dig google.com +short

# 8. Check propagation (multiple resolvers)
for ns in 8.8.8.8 1.1.1.1 9.9.9.9; do
  echo "=== $ns ===" && dig @$ns example.com +short
done

# Online tools:
# - mxtoolbox.com (comprehensive DNS checks)
# - dnschecker.org (global propagation)
# - intodns.com (DNS health check)

Summary & Next Steps

Continue the Series
