Complete Protocols Master Part 14: VPN & Tunneling Protocols

IPsec: Internet Protocol Security

IPsec is the standard for site-to-site VPNs between offices. It operates at Layer 3, securing all IP traffic transparently. Complex but battle-tested.

IPsec Components:

1. IKE (Internet Key Exchange)
   • Phase 1: Establish secure channel for negotiation
   • Phase 2: Negotiate actual VPN parameters
   • Handles key exchange, authentication

2. ESP (Encapsulating Security Payload)
   • Encrypts packet payload
   • Provides authentication
   • Most common IPsec mode

3. AH (Authentication Header)
   • Authentication only, no encryption
   • Rarely used alone
   • Doesn't work with NAT

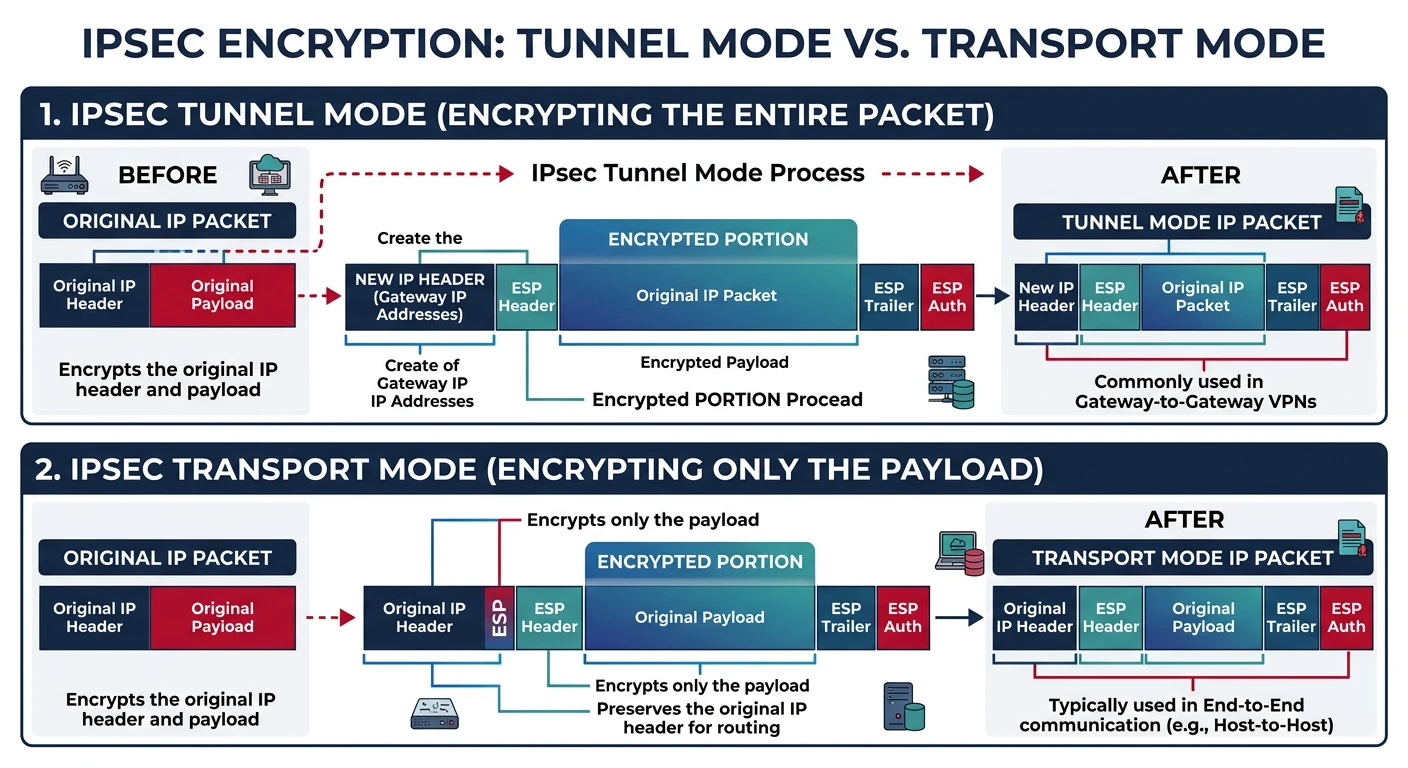

Modes:
• Tunnel Mode: Entire packet encrypted (site-to-site)
• Transport Mode: Only payload encrypted (host-to-host)

IKE Phases:
Phase 1 (IKE SA):
  • Authenticate peers
  • Establish secure channel
  • Negotiate algorithms

Phase 2 (IPsec SA):
  • Negotiate IPsec parameters
  • Create encryption keys
  • One per traffic pair

# IPsec packet structure (Tunnel Mode)

Original Packet:
+--------+--------+---------+
| IP Hdr | TCP/UDP | Payload |
+--------+--------+---------+

After ESP Encryption (Tunnel Mode):
+----------+----------+------------+----------+---------+-----------+
| New IP   | ESP      | Orig IP    | TCP/UDP  | Payload | ESP Auth  |
| Header   | Header   | Header     |          |         | Trailer   |
+----------+----------+------------+----------+---------+-----------+
           |←────────── ENCRYPTED ────────────→|

ESP Header:
• SPI (Security Parameter Index): Identifies the SA
• Sequence Number: Anti-replay protection

ESP Trailer:
• Padding
• Authentication Tag (ICV)

IKEv2 vs IKEv1:

IKEv2 Improvements:
• Fewer messages (4 vs 6-9)
• Built-in NAT traversal
• MOBIKE: Seamless IP changes (mobile)
• Stronger crypto requirements
• Better DoS resistance

IKEv2 Exchange:

Initiator                 Responder
    |                         |
    |--- IKE_SA_INIT -------->|
    |<-- IKE_SA_INIT ---------|
    |                         |
    |--- IKE_AUTH ----------->|
    |<-- IKE_AUTH ------------|
    |                         |
    [IPsec tunnel established]

Just 4 messages to establish VPN!

# strongSwan IPsec configuration example

# /etc/ipsec.conf
config setup
    charondebug="ike 2, knl 2, cfg 2"

conn site-to-site
    # Authentication
    authby=secret

    # Local side
    left=203.0.113.1
    leftsubnet=10.1.0.0/16
    leftid=@office-a

    # Remote side
    right=198.51.100.1
    rightsubnet=10.2.0.0/16
    rightid=@office-b

    # Encryption (IKE and ESP)
    ike=aes256-sha256-modp2048!
    esp=aes256-sha256!

    # Key exchange
    keyexchange=ikev2

    # Start automatically
    auto=start

# /etc/ipsec.secrets
@office-a @office-b : PSK "shared-secret-key-here"

# Commands
ipsec start
ipsec up site-to-site
ipsec statusall

WireGuard: Modern VPN

WireGuard is the modern choice—simpler, faster, and more secure by design. Only ~4,000 lines of code vs OpenVPN's 100,000+. Now included in the Linux kernel.

WireGuard Design Philosophy:

1. SIMPLICITY
   • ~4,000 lines of code (auditable)
   • Fixed cryptography (no negotiation)
   • Minimal configuration

2. CRYPTOGRAPHY (non-negotiable)
   • Key exchange: Curve25519
   • Encryption: ChaCha20-Poly1305
   • Hashing: BLAKE2s
   • KDF: HKDF

3. STEALTHY
   • UDP only
   • Silent to unauthenticated packets
   • No handshake response until valid

4. ROAMING
   • Client IP can change
   • Seamless reconnection
   • Perfect for mobile

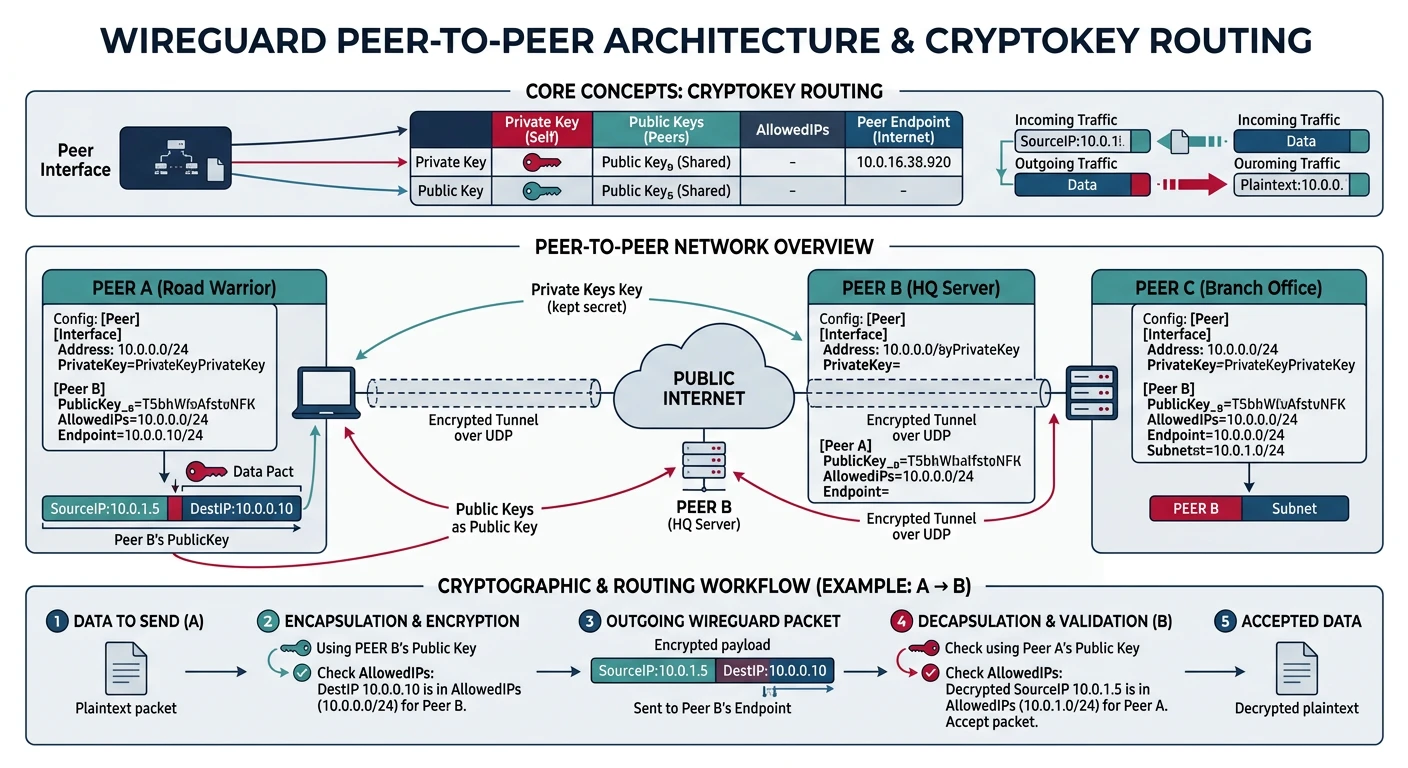

Peer Model:
• No client/server distinction
• Each peer has public/private key pair
• AllowedIPs defines routing

# WireGuard setup

# 1. Generate keys (on each peer)
wg genkey | tee privatekey | wg pubkey > publickey

# 2. Server configuration (/etc/wireguard/wg0.conf)
[Interface]
PrivateKey = SERVER_PRIVATE_KEY
Address = 10.0.0.1/24
ListenPort = 51820
PostUp = iptables -A FORWARD -i wg0 -j ACCEPT; iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
PostDown = iptables -D FORWARD -i wg0 -j ACCEPT; iptables -t nat -D POSTROUTING -o eth0 -j MASQUERADE

[Peer]
# Client 1
PublicKey = CLIENT1_PUBLIC_KEY
AllowedIPs = 10.0.0.2/32

[Peer]
# Client 2
PublicKey = CLIENT2_PUBLIC_KEY
AllowedIPs = 10.0.0.3/32

# 3. Client configuration
[Interface]
PrivateKey = CLIENT_PRIVATE_KEY
Address = 10.0.0.2/24
DNS = 1.1.1.1

[Peer]
PublicKey = SERVER_PUBLIC_KEY
Endpoint = vpn.example.com:51820
AllowedIPs = 0.0.0.0/0  # Route all traffic through VPN
PersistentKeepalive = 25

# 4. Start WireGuard
wg-quick up wg0
wg-quick down wg0

# 5. Check status
wg show

# WireGuard config generator

def generate_wireguard_config():
    """Generate WireGuard configurations"""

    print("WireGuard Configuration Generator")
    print("=" * 50)

    # In real use, generate with: wg genkey | wg pubkey
    print("""
    # Generate keys (run on each machine):
    wg genkey > privatekey
    cat privatekey | wg pubkey > publickey

    # Server config (wg0.conf):
    [Interface]
    PrivateKey =
    Address = 10.0.0.1/24
    ListenPort = 51820

    [Peer]
    PublicKey =
    AllowedIPs = 10.0.0.2/32

    # Client config:
    [Interface]
    PrivateKey =
    Address = 10.0.0.2/24

    [Peer]
    PublicKey =
    Endpoint = server-ip:51820
    AllowedIPs = 0.0.0.0/0
    PersistentKeepalive = 25
    """)

    print("\nAllowedIPs meanings:")
    print("• 0.0.0.0/0: Route ALL traffic (full tunnel)")
    print("• 10.0.0.0/24: Only VPN subnet (split tunnel)")
    print("• 10.0.0.2/32: Only this specific peer")

generate_wireguard_config()

OpenVPN: Flexible SSL VPN

OpenVPN is the most flexible VPN solution. Uses SSL/TLS, works over TCP or UDP, and can traverse firewalls that block other VPNs.

OpenVPN Features:

1. TRANSPORT OPTIONS
   • UDP (default, faster)
   • TCP (firewall-friendly)
   • TCP 443 (looks like HTTPS)

2. AUTHENTICATION
   • Certificates (PKI)
   • Username/password
   • Two-factor (TOTP)
   • LDAP/RADIUS integration

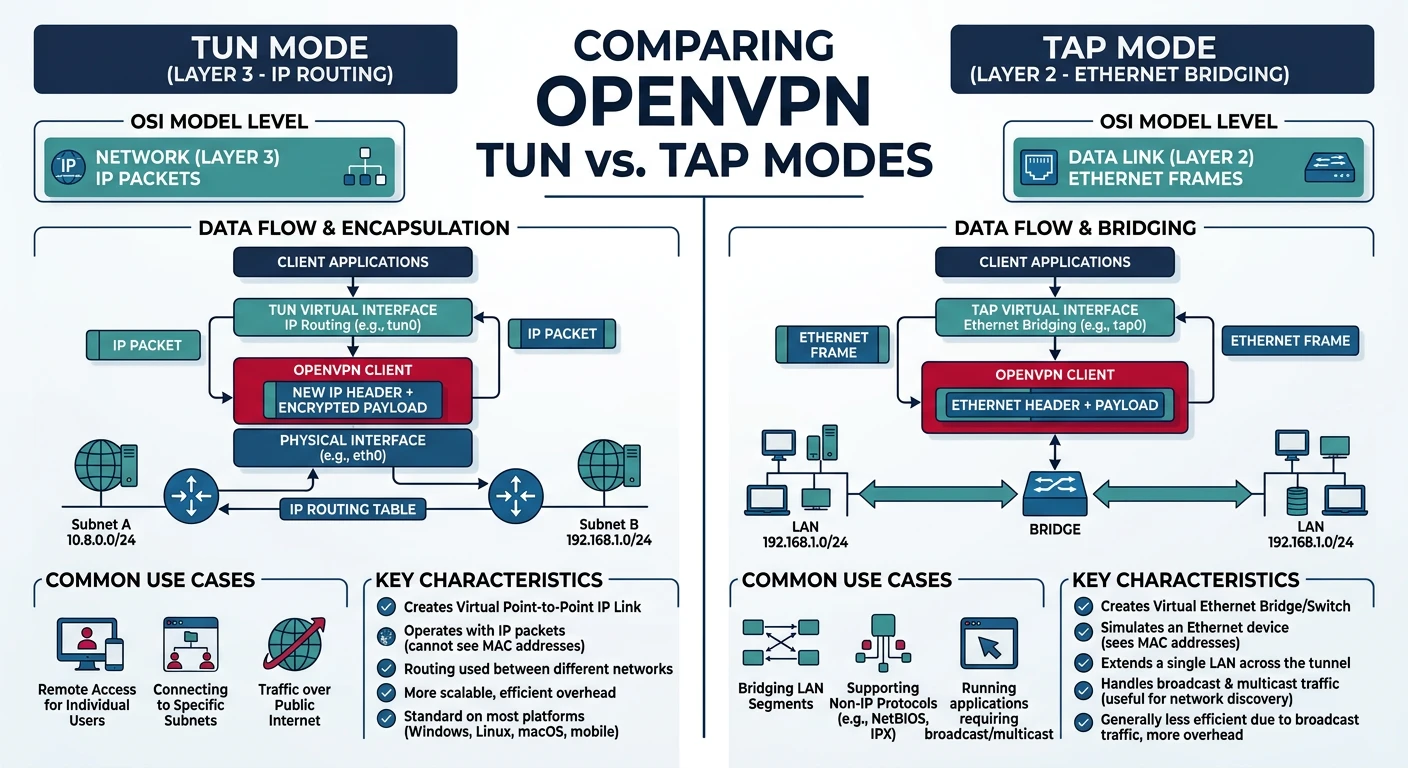

3. MODES
   • TUN (Layer 3, routing)
   • TAP (Layer 2, bridging)

4. FLEXIBILITY
   • Push routes to clients
   • Client-specific configs
   • Split tunneling
   • Custom scripts

When to choose OpenVPN:
• Need TCP (blocked UDP)
• Complex authentication requirements
• Legacy system compatibility
• Need TAP mode (Layer 2)

# OpenVPN server configuration

# Server: /etc/openvpn/server.conf

# Network
port 1194
proto udp
dev tun

# Certificates
ca ca.crt
cert server.crt
key server.key
dh dh2048.pem
tls-auth ta.key 0

# Network settings
server 10.8.0.0 255.255.255.0
push "redirect-gateway def1 bypass-dhcp"
push "dhcp-option DNS 8.8.8.8"

# Security
cipher AES-256-GCM
auth SHA256

# Performance
keepalive 10 120
comp-lzo

# Privileges
user nobody
group nogroup
persist-key
persist-tun

# Logging
status /var/log/openvpn-status.log
verb 3

# OpenVPN client configuration

# Client: client.ovpn

client
dev tun
proto udp
remote vpn.example.com 1194
resolv-retry infinite
nobind

persist-key
persist-tun

# Certificates (inline or file reference)
ca ca.crt
cert client.crt
key client.key
tls-auth ta.key 1

cipher AES-256-GCM
auth SHA256
verb 3

# Connect
# openvpn --config client.ovpn

SSH Tunnels

SSH tunnels aren't full VPNs, but they're incredibly useful for quick secure access. Forward specific ports or create a SOCKS proxy—all through SSH.

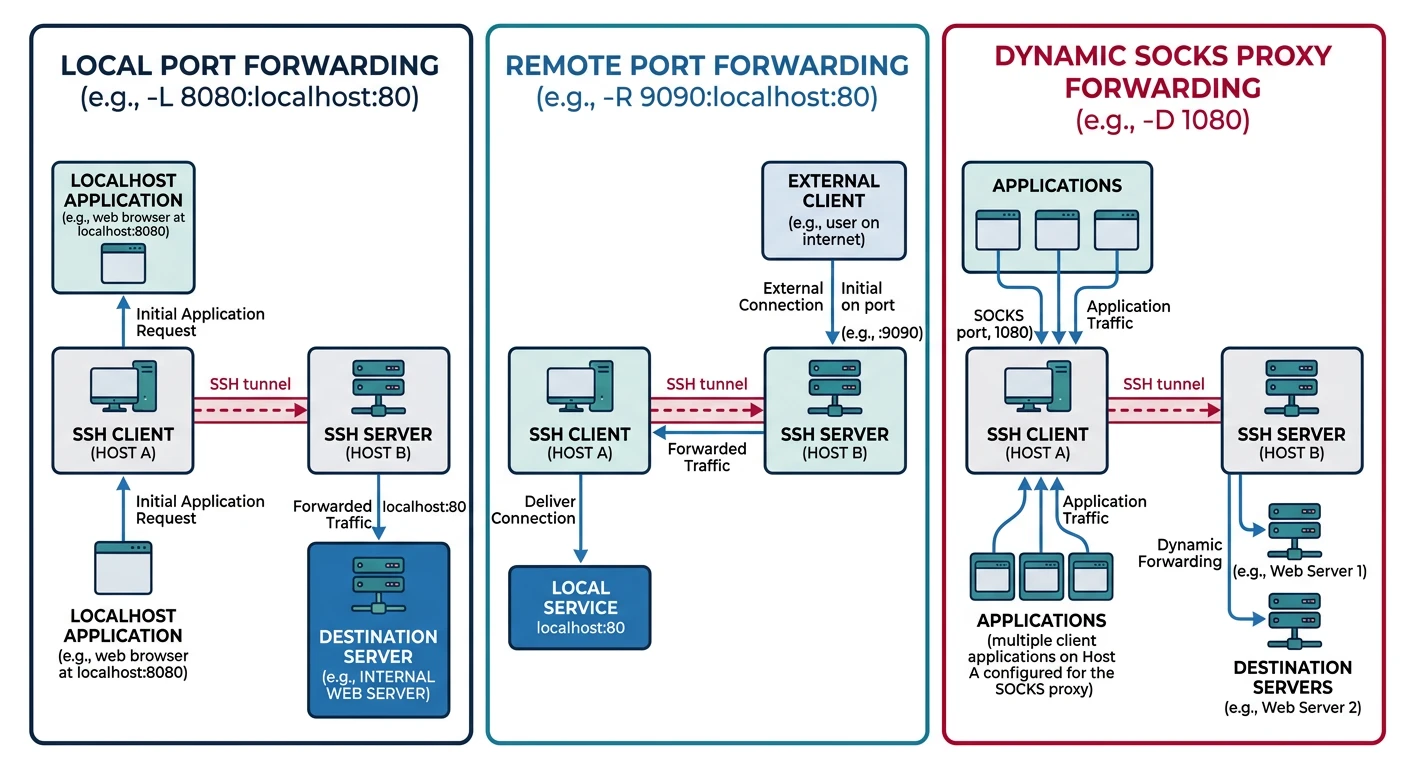

SSH Tunnel Types:

1. LOCAL PORT FORWARDING (-L)
   Forward local port to remote service

   ssh -L 8080:internal-server:80 user@jump-host

   You → localhost:8080 → [SSH] → jump-host → internal-server:80

   Use: Access internal web server through jump host

2. REMOTE PORT FORWARDING (-R)
   Expose local service on remote server

   ssh -R 8080:localhost:3000 user@server

   server:8080 → [SSH] → You → localhost:3000

   Use: Expose local dev server publicly

3. DYNAMIC PORT FORWARDING (-D)
   Create SOCKS proxy

   ssh -D 1080 user@server

   Configure browser to use SOCKS5 localhost:1080
   All traffic goes through SSH tunnel

   Use: Browse as if from server's location

# SSH tunnel examples

# Local port forwarding
# Access remote database through jump host
ssh -L 5432:database.internal:5432 user@jump-host
# Now: psql -h localhost -p 5432

# Access internal web app
ssh -L 8080:intranet.company.local:80 user@vpn-server
# Now: http://localhost:8080

# Remote port forwarding
# Expose local dev server
ssh -R 80:localhost:3000 user@public-server
# Now: http://public-server/ shows your local app

# SOCKS proxy (browse through remote)
ssh -D 1080 user@server
# Configure browser: SOCKS5, localhost:1080

# Keep tunnel alive in background
ssh -f -N -L 8080:target:80 user@jump
# -f: Background
# -N: No command (tunnel only)

# Multiple tunnels
ssh -L 8080:web:80 -L 3306:db:3306 -L 6379:redis:6379 user@jump

# SSH tunnel with Python (sshtunnel library)

def ssh_tunnel_example():
    """Demonstrate SSH tunnel usage"""

    print("SSH Tunnel with Python")
    print("=" * 50)

    print("""
    from sshtunnel import SSHTunnelForwarder
    import pymysql

    # Create tunnel to access MySQL through SSH
    with SSHTunnelForwarder(
        ('jump-host.example.com', 22),
        ssh_username='user',
        ssh_pkey='/path/to/key',
        remote_bind_address=('database.internal', 3306),
        local_bind_address=('127.0.0.1', 3306)
    ) as tunnel:

        # Connect to database through tunnel
        conn = pymysql.connect(
            host='127.0.0.1',
            port=tunnel.local_bind_port,
            user='dbuser',
            password='dbpass',
            database='mydb'
        )

        cursor = conn.cursor()
        cursor.execute('SELECT * FROM users')
        print(cursor.fetchall())
    """)

    print("\nInstall: pip install sshtunnel")

ssh_tunnel_example()

GRE Tunnels

GRE (Generic Routing Encapsulation) creates simple tunnels without encryption. Often combined with IPsec for secure site-to-site links.

GRE Characteristics:

WHAT IT DOES:
• Encapsulates any protocol in IP
• Creates virtual point-to-point link
• No encryption (add IPsec for security)

USE CASES:
• Carry non-IP protocols over IP network
• Connect routing domains
• Multicast over WAN
• Usually combined with IPsec

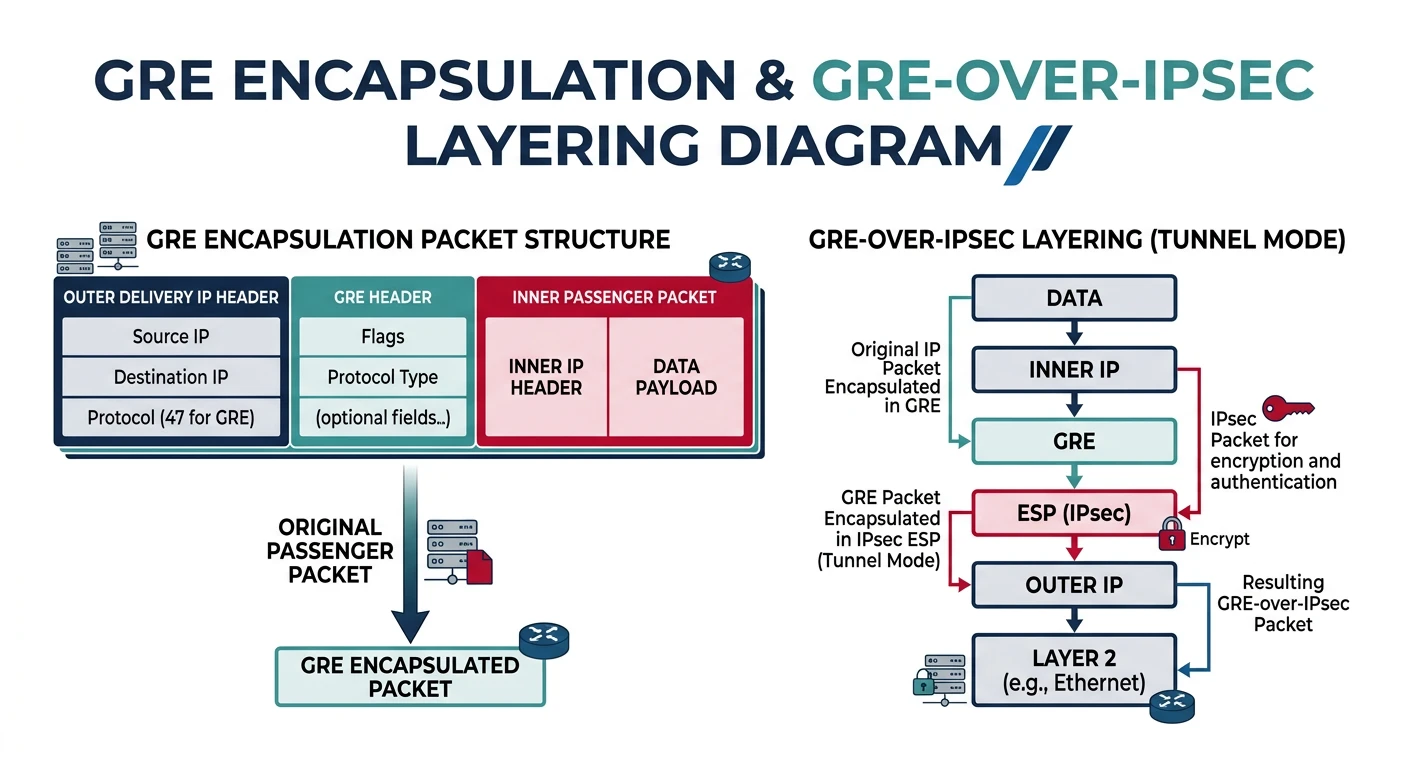

GRE Packet:
+----------+----------+----------+----------+
| Delivery | GRE      | Passenger| Passenger|
| Header   | Header   | Header   | Payload  |
+----------+----------+----------+----------+
(Outer IP)           (Inner packet)

GRE over IPsec:
+--------+---------+----------+----------+----------+
| IP Hdr | ESP Hdr | GRE Hdr  | Inner IP | Payload  |
+--------+---------+----------+----------+----------+
         |←────── Encrypted ──────────→|

# GRE tunnel configuration (Linux)

# Site A (192.168.1.0/24, public IP: 203.0.113.1)
ip tunnel add gre1 mode gre remote 198.51.100.1 local 203.0.113.1 ttl 255
ip link set gre1 up
ip addr add 10.0.0.1/30 dev gre1
ip route add 192.168.2.0/24 via 10.0.0.2

# Site B (192.168.2.0/24, public IP: 198.51.100.1)
ip tunnel add gre1 mode gre remote 203.0.113.1 local 198.51.100.1 ttl 255
ip link set gre1 up
ip addr add 10.0.0.2/30 dev gre1
ip route add 192.168.1.0/24 via 10.0.0.1

# Verify
ip tunnel show
ping 10.0.0.2  # Ping across tunnel

# Note: GRE alone is NOT encrypted
# Combine with IPsec for security

Protocol Comparison

# VPN selection helper

def vpn_recommendation():
    """Recommend VPN based on requirements"""

    recommendations = {
        "greenfield": {
            "vpn": "WireGuard",
            "why": "Modern, simple, fastest performance",
            "config": "~15 lines of config"
        },
        "corporate_site_to_site": {
            "vpn": "IPsec IKEv2",
            "why": "Industry standard, hardware support",
            "config": "Complex, but well-documented"
        },
        "restricted_network": {
            "vpn": "OpenVPN over TCP 443",
            "why": "Mimics HTTPS, hard to block",
            "config": "Certificate management needed"
        },
        "quick_access": {
            "vpn": "SSH tunnel",
            "why": "No setup, use existing SSH",
            "config": "One command"
        },
        "mobile_workers": {
            "vpn": "WireGuard",
            "why": "Seamless IP changes, low battery",
            "config": "QR code import supported"
        }
    }

    print("VPN Recommendation Guide")
    print("=" * 50)

    for scenario, rec in recommendations.items():
        print(f"\n{scenario.replace('_', ' ').title()}:")
        print(f"  → {rec['vpn']}")
        print(f"     {rec['why']}")
        print(f"     Config: {rec['config']}")

vpn_recommendation()
