Complete Protocols Master Part 19: Emerging Protocols

QUIC Protocol

QUIC (Quick UDP Internet Connections) is a transport protocol built on UDP. Google developed it, and it's now an IETF standard (RFC 9000). Over 25% of internet traffic uses QUIC.

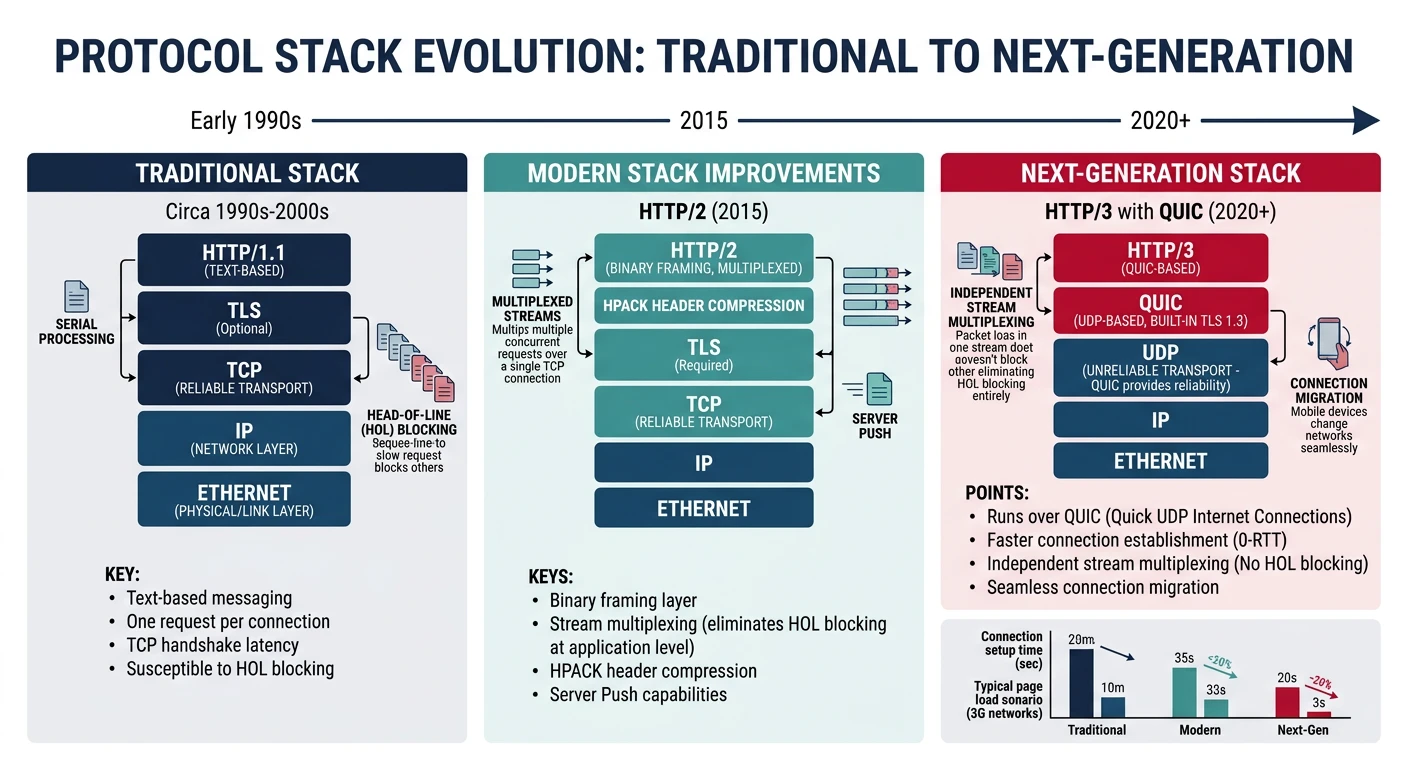

Traditional Stack:
┌─────────────┐
│   HTTP/2    │
├─────────────┤
│    TLS 1.3  │
├─────────────┤
│     TCP     │
├─────────────┤
│     IP      │
└─────────────┘

QUIC Stack:
┌─────────────┐
│   HTTP/3    │
├─────────────┤
│    QUIC     │ ← Transport + Crypto combined
├─────────────┤
│     UDP     │
├─────────────┤
│     IP      │
└─────────────┘

QUIC includes:
• Reliable delivery
• Congestion control
• TLS 1.3 encryption
• Stream multiplexing
• Connection migration

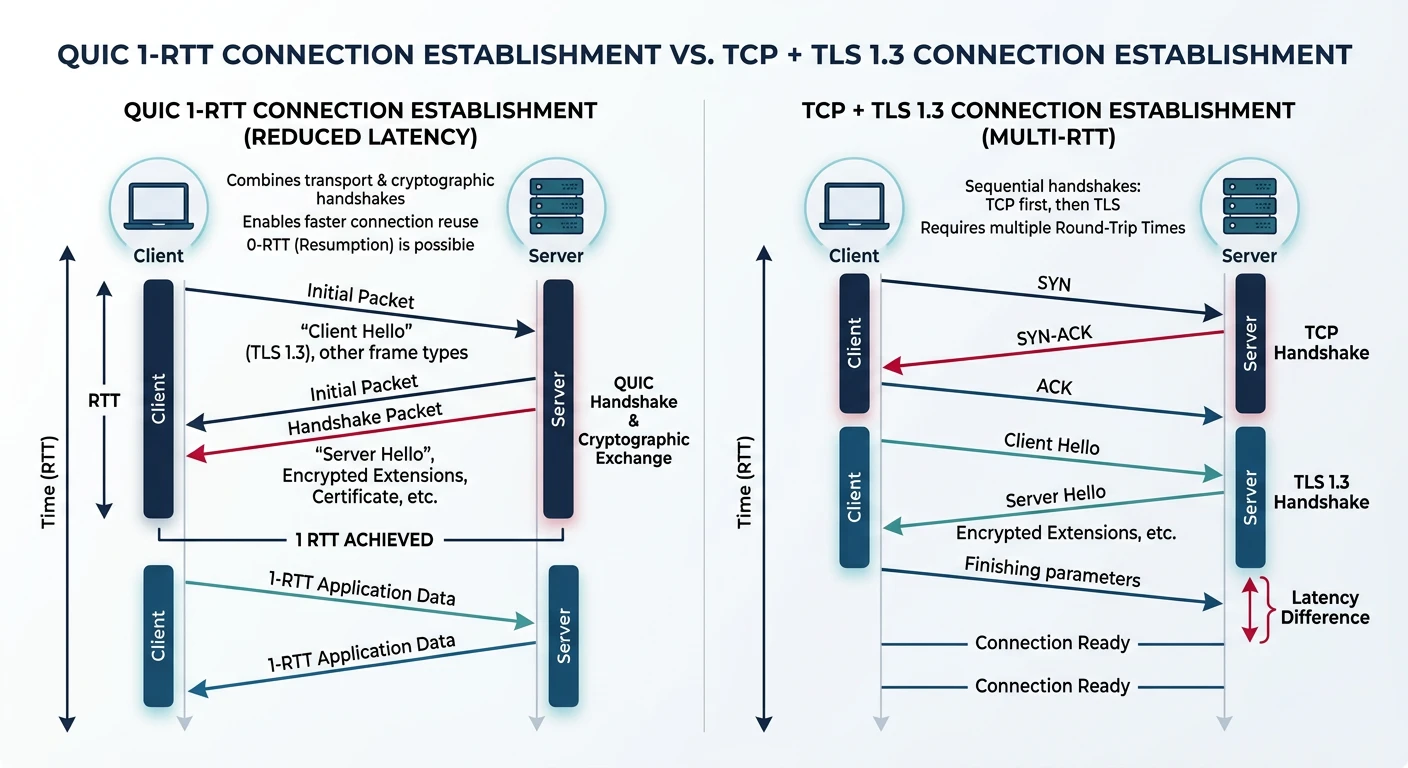

QUIC Handshake (1-RTT):

Client                                 Server
   |                                      |
   |--- Initial [CRYPTO] ---------------->|
   |    (ClientHello, key share)          |
   |                                      |
   |<-- Initial [CRYPTO] -----------------|
   |<-- Handshake [CRYPTO] ---------------|
   |    (ServerHello, cert, finished)     |
   |                                      |
   |--- Handshake [CRYPTO] -------------->|
   |--- 1-RTT [STREAM data] ------------->|
   |    (Application data!)               |
   |                                      |

Compare TCP + TLS 1.3:
• TCP: 1 RTT (SYN/SYN-ACK)
• TLS: 1 RTT (ClientHello/ServerHello)
• Total: 2 RTT before app data

QUIC 0-RTT Resumption:
• Returning clients send data immediately
• Server verifies with resumption token
• Risk: Replay attacks (mitigated)

# Check if site supports QUIC/HTTP/3

# Using curl (must be compiled with HTTP/3 support)
curl --http3 -I https://cloudflare.com
# alt-svc: h3=":443"

# Check using online tools
# https://http3check.net/

# Chrome DevTools
# Network tab → Protocol column shows "h3"

# Firefox about:networking
# Shows QUIC connections

# Wireshark filter
quic

# QUIC concepts demonstration

def quic_features():
    """Explain QUIC's key features"""

    print("QUIC Key Features")
    print("=" * 50)

    features = {
        "Stream Multiplexing": """
            Multiple independent streams in one connection.
            Lost packet on stream 1 doesn't block stream 2.

            HTTP/2 over TCP:
            Stream 1: [===X===] ← Packet lost
            Stream 2: [=======] ← Blocked waiting!

            HTTP/3 over QUIC:
            Stream 1: [===X===] ← Retransmit
            Stream 2: [=======] ← Continues!
        """,

        "Connection Migration": """
            Connection ID instead of IP:port tuple.
            Mobile user switches WiFi → cellular:

            TCP: Connection lost, reconnect
            QUIC: Same connection, new path
        """,

        "Encryption": """
            All headers encrypted (except first byte).
            Middleboxes can't inspect or modify.
            Connection ID visible for routing only.
        """,

        "Congestion Control": """
            Pluggable algorithms (CUBIC, BBR).
            Per-stream flow control.
            Connection-level flow control.
        """
    }

    for name, desc in features.items():
        print(f"\n{name}:")
        print(desc)

quic_features()

HTTP/3

HTTP/3 is HTTP over QUIC. Same semantics as HTTP/2 (headers, streams, push), but without TCP's limitations.

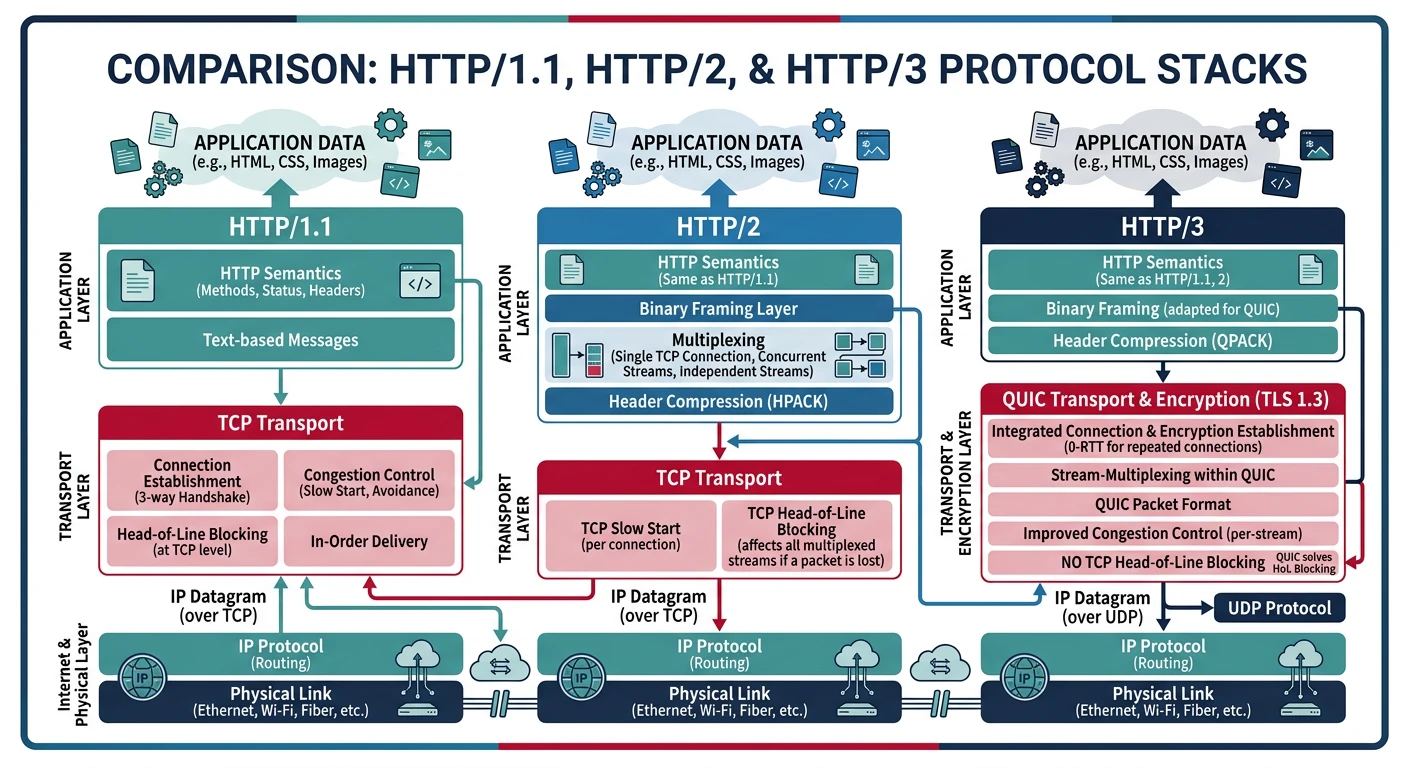

HTTP Version History:

HTTP/1.0 (1996):
• One request per TCP connection
• Connection: close

HTTP/1.1 (1997):
• Keep-alive connections
• Pipelining (rarely used)
• Still head-of-line blocking

HTTP/2 (2015):
• Binary framing
• Multiplexed streams
• Header compression (HPACK)
• Server push
• TCP head-of-line blocking remains

HTTP/3 (2022):
• QUIC transport (UDP-based)
• No head-of-line blocking
• 0-RTT connection resumption
• Header compression (QPACK)
• Connection migration

# Enable HTTP/3 on Cloudflare
# Dashboard → Speed → Optimization → HTTP/3 (with QUIC)

# nginx HTTP/3 configuration (experimental)
server {
    listen 443 quic reuseport;
    listen 443 ssl;

    ssl_certificate /path/to/cert.pem;
    ssl_certificate_key /path/to/key.pem;

    # Advertise HTTP/3 support
    add_header Alt-Svc 'h3=":443"; ma=86400';

    # HTTP/3 specific
    http3 on;
    quic_retry on;
}

# Test HTTP/3
curl --http3 -v https://your-site.com

# HTTP/3 client with httpx (experimental)

def http3_example():
    """HTTP/3 client demonstration"""

    print("HTTP/3 Client Example")
    print("=" * 50)

    print("""
    # Using httpx with HTTP/3 support
    # pip install httpx[http2] aioquic

    import httpx

    # HTTP/3 requires async
    async def fetch_h3():
        async with httpx.AsyncClient(http2=True) as client:
            # Will auto-upgrade to HTTP/3 if available
            response = await client.get('https://cloudflare.com')
            print(f"HTTP Version: {response.http_version}")
            print(f"Status: {response.status_code}")

    # Check Alt-Svc header for HTTP/3 support
    response = httpx.get('https://cloudflare.com')
    alt_svc = response.headers.get('alt-svc', '')
    print(f"Alt-Svc: {alt_svc}")
    # h3=":443" indicates HTTP/3 support
    """)

    print("\nHTTP/3 Benefits:")
    print("• Faster page loads (0-RTT)")
    print("• Better on lossy networks (mobile)")
    print("• No head-of-line blocking")
    print("• Seamless network switching")

http3_example()

WebTransport

WebTransport is a web API for low-latency bidirectional communication over HTTP/3. Better than WebSockets for real-time applications.

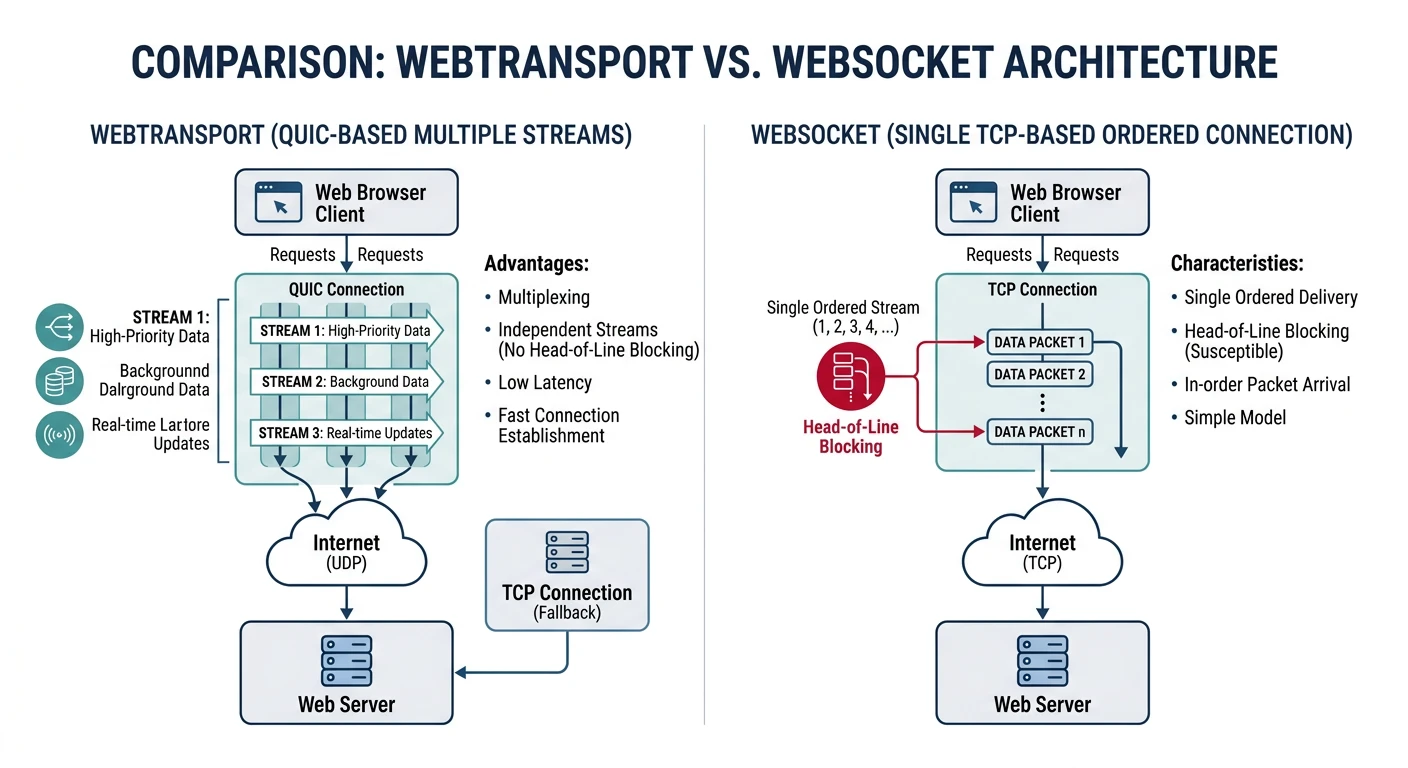

WebTransport vs WebSocket:

WebSocket:
• TCP-based (head-of-line blocking)
• Single ordered stream
• Reliable delivery only
• Established, wide support

WebTransport:
• QUIC-based (no HOL blocking)
• Multiple streams (ordered/unordered)
• Reliable OR unreliable delivery
• Newer, growing support

Use WebTransport for:
• Real-time gaming
• Live streaming
• Collaborative editing
• IoT data streams

Use WebSocket for:
• Simple chat applications
• Broad browser support needed
• Proxy/firewall traversal

// WebTransport client (browser)

async function webTransportDemo() {
    // Connect to WebTransport server
    const transport = new WebTransport('https://example.com/wt');

    await transport.ready;
    console.log('Connected!');

    // Bidirectional stream (reliable, ordered)
    const stream = await transport.createBidirectionalStream();
    const writer = stream.writable.getWriter();
    const reader = stream.readable.getReader();

    // Send data
    await writer.write(new TextEncoder().encode('Hello!'));

    // Receive data
    const { value } = await reader.read();
    console.log('Received:', new TextDecoder().decode(value));

    // Unidirectional stream (for one-way data)
    const uniStream = await transport.createUnidirectionalStream();

    // Datagrams (unreliable, unordered - for real-time)
    const datagramWriter = transport.datagrams.writable.getWriter();
    await datagramWriter.write(new Uint8Array([1, 2, 3]));

    // Close
    transport.close();
}

// Server-sent events via WebTransport
async function receiveUpdates(transport) {
    const reader = transport.incomingUnidirectionalStreams.getReader();

    while (true) {
        const { value: stream, done } = await reader.read();
        if (done) break;

        // Process incoming stream
        const streamReader = stream.getReader();
        const { value } = await streamReader.read();
        console.log('Update:', new TextDecoder().decode(value));
    }
}

Future Trends

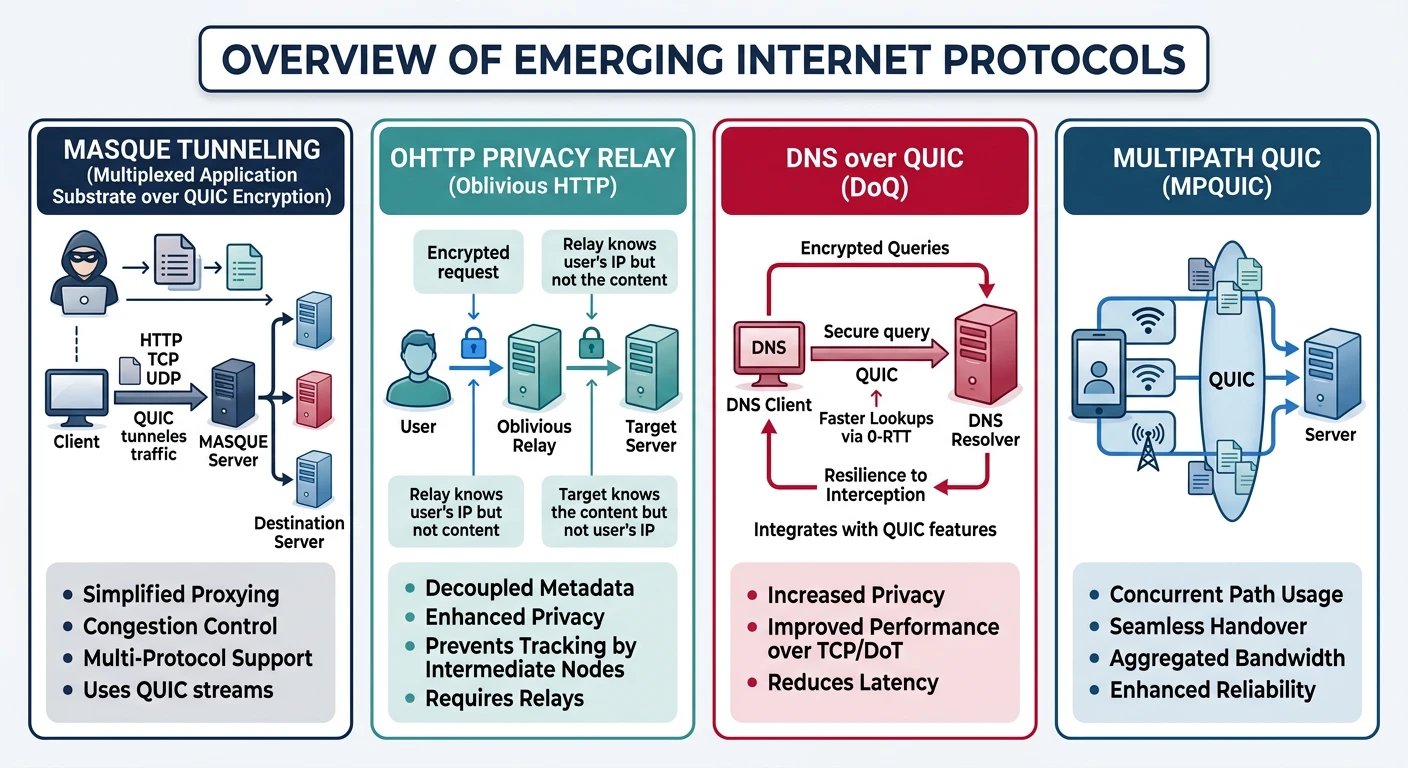

Emerging Protocols & Trends:

1. MASQUE (Multiplexed Application Substrate)
   • Tunnel any protocol over HTTP/3
   • Modern VPN alternative
   • Apple iCloud Private Relay uses it

2. OHTTP (Oblivious HTTP)
   • Privacy-preserving HTTP
   • Client → Relay → Gateway → Origin
   • Hides client IP from origin

3. DNS over QUIC (DoQ)
   • DNS queries over QUIC
   • Faster than DoH/DoT
   • RFC 9250

4. WebCodecs + WebTransport
   • Low-latency video streaming
   • Game streaming (Stadia-like)

5. Multipath QUIC
   • Use multiple network paths
   • WiFi + cellular simultaneously

6. Encrypted Client Hello (ECH)
   • Hide SNI (server name indicator)
   • Privacy enhancement for TLS

# Protocol adoption timeline

def protocol_timeline():
    """Show protocol evolution"""

    timeline = [
        ("1983", "TCP/IP", "Foundation of internet"),
        ("1996", "HTTP/1.0", "Web begins"),
        ("1999", "TLS 1.0", "Secure web"),
        ("2015", "HTTP/2", "Multiplexing"),
        ("2018", "TLS 1.3", "Faster, simpler"),
        ("2021", "QUIC RFC", "New transport"),
        ("2022", "HTTP/3 RFC", "HTTP over QUIC"),
        ("2023+", "WebTransport", "Real-time web"),
        ("Future", "MASQUE/OHTTP", "Privacy-first"),
    ]

    print("Protocol Evolution Timeline")
    print("=" * 50)

    for year, protocol, description in timeline:
        print(f"{year:6} │ {protocol:15} │ {description}")

protocol_timeline()

High-Performance Data Centre Interconnects

While QUIC and HTTP/3 speed up the public internet, a parallel revolution is happening inside data centres and supercomputers. Traditional TCP/IP was designed for wide-area networks where packets traverse many hops, but within a data centre rack (or between GPUs on the same board) that overhead is wasteful. A family of technologies has emerged to move data between servers, GPUs, and memory pools with microsecond latency instead of millisecond latency—often bypassing the operating system entirely.

RDMA (Remote Direct Memory Access)

RDMA lets one computer read or write the memory of another computer directly, without involving the remote CPU or operating system. In normal networking, data must travel: Application → OS kernel → NIC → wire → NIC → OS kernel → Application. RDMA eliminates the kernel on both sides—the network adapter (NIC) reads from or writes to application memory in a single operation. This achieves latencies under 2 microseconds and bandwidths exceeding 400 Gbps.

InfiniBand

InfiniBand is a dedicated high-performance network technology purpose-built for RDMA. Unlike Ethernet (which was designed for office LANs and later adapted for data centres), InfiniBand was designed from day one for ultra-low latency, lossless delivery, and direct memory access. It uses its own switches, cables, and host channel adapters (HCAs) instead of standard Ethernet NICs.

RoCE (RDMA over Converged Ethernet)

RoCE (pronounced "rocky") brings RDMA capabilities to standard Ethernet networks, eliminating the need for specialised InfiniBand hardware. This is significant because most data centres already have Ethernet infrastructure—RoCE lets them gain RDMA performance benefits without replacing every switch and cable.

DPDK (Data Plane Development Kit)

DPDK takes a different approach to high-speed networking. Instead of hardware-level RDMA, DPDK is a software framework that bypasses the Linux kernel's networking stack entirely. It gives user-space applications direct access to the NIC hardware via poll-mode drivers, eliminating interrupts and context switches. Originally developed by Intel, DPDK is now the foundation for software-defined networking equipment, virtual switches, and telecom infrastructure.

Traditional packet path (Linux kernel):
  NIC → IRQ → Kernel driver → sk_buff alloc → TCP/IP stack
  → socket buffer → copy to user space → Application
  ⏱ Overhead: ~10-20 µs per packet, CPU-intensive

DPDK packet path (kernel bypass):
  NIC → DMA to user-space hugepage memory → Poll-mode driver
  → Application processes packet directly
  ⏱ Overhead: ~1-2 µs per packet, line-rate processing

Key DPDK techniques:
  • Poll Mode Drivers (PMD) — no interrupts, CPU polls NIC
  • Hugepages (2 MB / 1 GB) — reduced TLB misses
  • Lockless ring buffers — zero-copy between cores
  • CPU affinity — pin threads to cores, no scheduling jitter
  • Batch processing — handle 32+ packets per function call

DSM (Distributed Shared Memory)

Distributed Shared Memory creates the illusion that multiple machines share a single, unified memory space—even though physically each machine has its own local RAM. Applications can read and write to any address as if it were local memory, and the DSM system transparently handles fetching data from remote machines. This simplifies programming dramatically: instead of writing explicit network send/receive code, developers use familiar pointers and memory operations.

Physical reality:
  Machine A: [RAM 0x0000 - 0x3FFF]  (local)
  Machine B: [RAM 0x0000 - 0x3FFF]  (local)

DSM virtual view (what the application sees):
  Unified address space: [0x0000 - 0x7FFF]
  • Address 0x1000 → Machine A's local RAM  ⚡ fast
  • Address 0x5000 → Machine B's RAM        📡 fetched via network

Consistency models:
  • Sequential — all nodes see same order (slow, simple)
  • Release — sync only at lock/unlock points (fast, complex)
  • Lazy release — defer sync until data actually needed (fastest)

CXL (Compute Express Link)

CXL is an open industry standard built on PCIe physical layer that enables cache-coherent communication between CPUs, accelerators (GPUs, FPGAs), and memory devices. Think of it as giving devices a shared, coherent view of memory—the CPU and a GPU can both read and write the same memory region with automatic hardware cache synchronisation, eliminating the need for explicit data copies between host and device memory.

NVLink

NVLink is NVIDIA's proprietary high-bandwidth interconnect designed specifically for GPU-to-GPU and GPU-to-CPU communication. Standard PCIe bottlenecks multi-GPU AI training because gradient synchronisation requires terabytes of data to flow between GPUs every second. NVLink solves this with a dedicated, high-bandwidth, cache-coherent link that makes multiple GPUs behave almost like a single, larger GPU.
