Complete Protocols Master Part 3: Network Layer & IP

IPv4 Addressing

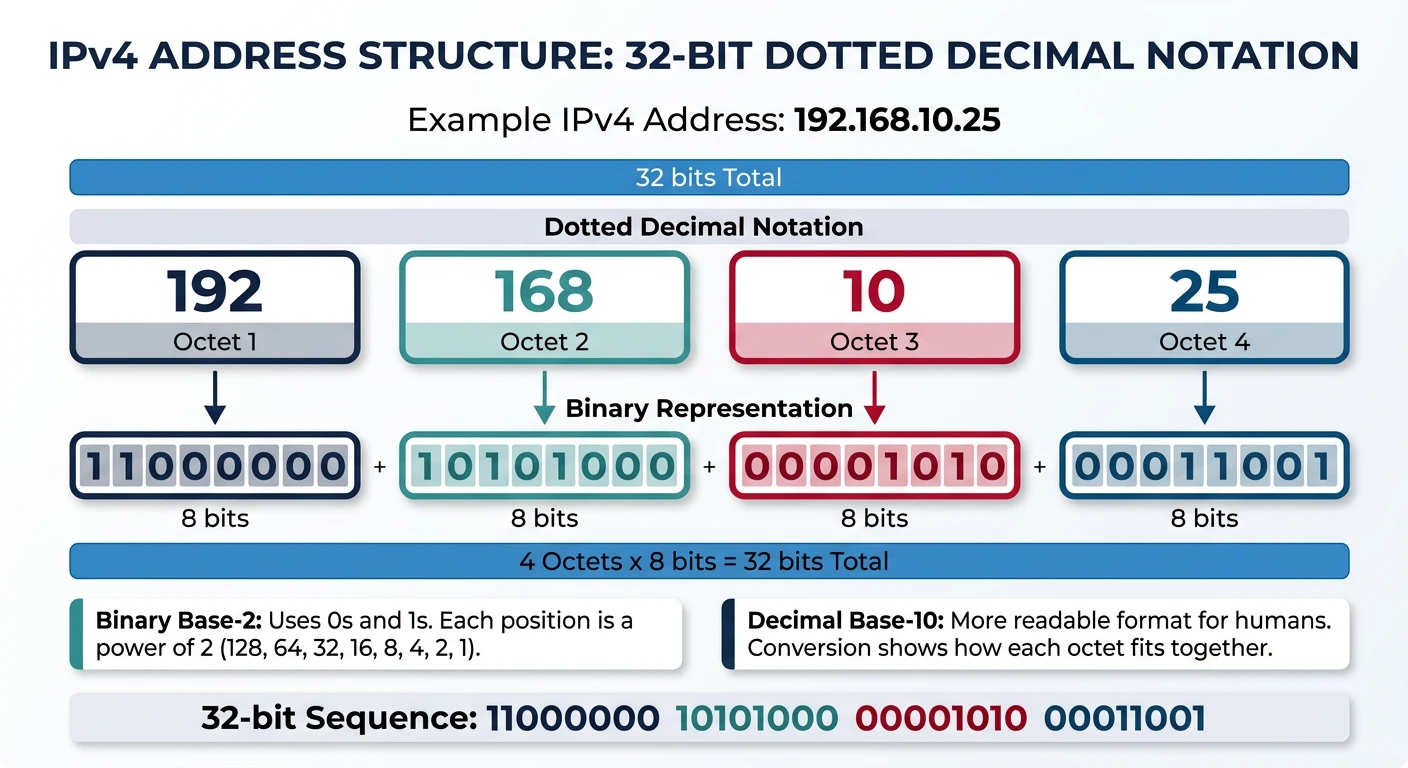

Internet Protocol version 4 (IPv4) has been the backbone of the internet since 1983. Despite IPv6's availability, IPv4 still carries the majority of internet traffic.

IPv4 Address: 192.168.1.100

Binary representation:
192      .168      .1        .100
11000000 .10101000 .00000001 .01100100

Each octet: 8 bits (0-255)
Total: 32 bits = 4 bytes
Maximum addresses: 2^32 = 4,294,967,296 (~4.3 billion)

# Understanding IPv4 addresses in Python
import ipaddress

# Create an IPv4 address object
ip = ipaddress.IPv4Address('192.168.1.100')

print(f"Address: {ip}")
print(f"Integer value: {int(ip)}")
print(f"Binary: {bin(int(ip))}")
print(f"Packed bytes: {ip.packed}")
print(f"Is private: {ip.is_private}")
print(f"Is global: {ip.is_global}")
print(f"Is loopback: {ip.is_loopback}")
print(f"Is multicast: {ip.is_multicast}")

# Convert between formats
ip_from_int = ipaddress.IPv4Address(3232235876)
print(f"\nFrom integer 3232235876: {ip_from_int}")

# Binary to decimal conversion for each octet
def ip_to_binary(ip_str):
    """Convert IP address to binary representation"""
    octets = ip_str.split('.')
    binary = [format(int(octet), '08b') for octet in octets]
    return '.'.join(binary)

print(f"\n192.168.1.100 in binary: {ip_to_binary('192.168.1.100')}")

IPv4 Address Classes (Historical)

Originally, IPv4 addresses were divided into classes. While classful addressing is obsolete, understanding it helps comprehend legacy systems and network fundamentals:

Private and Special Addresses

Subnetting & CIDR

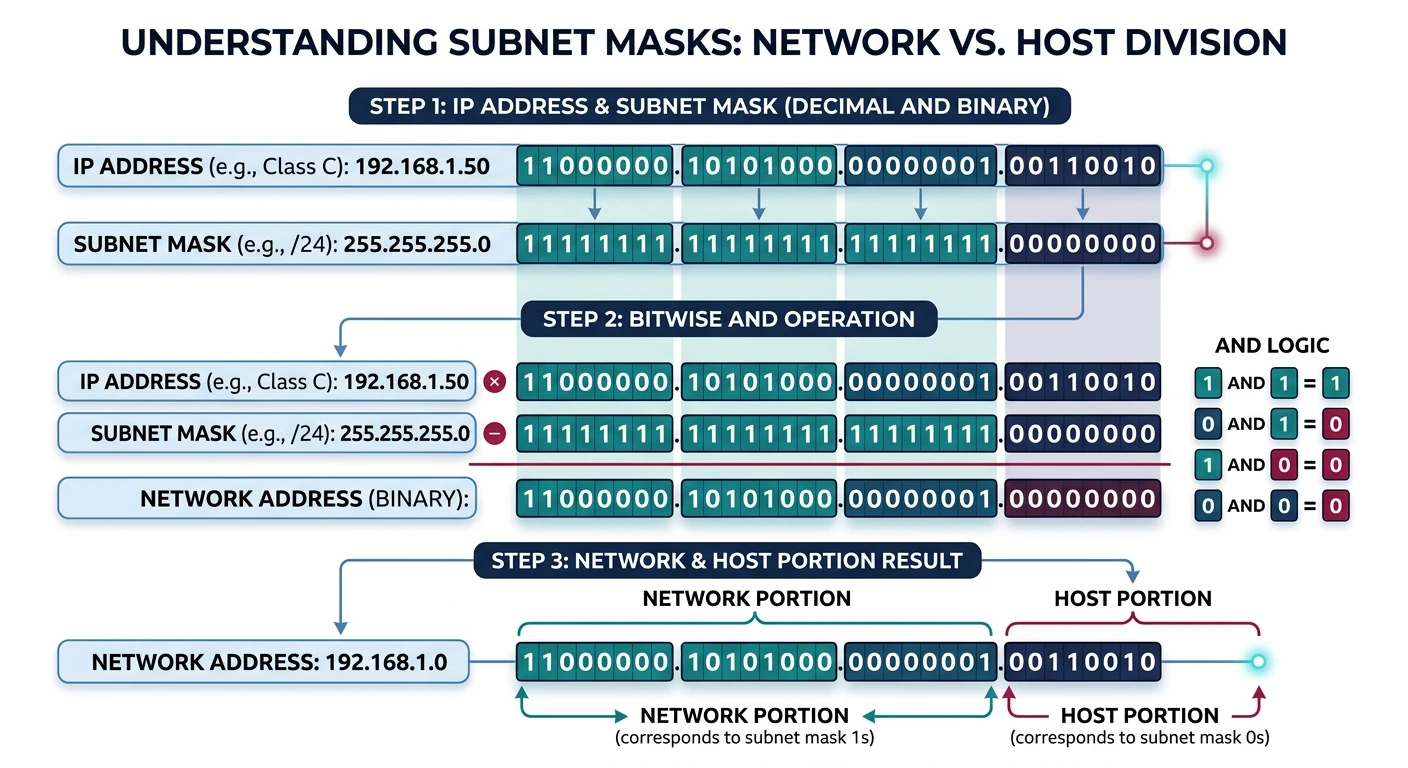

Subnetting divides a network into smaller, manageable pieces. CIDR (Classless Inter-Domain Routing) provides flexible allocation by specifying exactly how many bits identify the network.

IP Address:   192.168.1.100
Subnet Mask:  255.255.255.0

Binary:
IP:           11000000.10101000.00000001.01100100
Mask:         11111111.11111111.11111111.00000000
              |______Network______|___Host__|

Network bits (1s): Identify the network
Host bits (0s):    Identify devices within the network

Network Address:  192.168.1.0   (all host bits = 0)
Broadcast:        192.168.1.255 (all host bits = 1)
Usable Hosts:     192.168.1.1 - 192.168.1.254 (254 hosts)

CIDR Notation

CIDR notation uses a slash followed by the number of network bits:

Subnet Calculations

# Comprehensive subnet calculator in Python
import ipaddress

def analyze_network(network_str):
    """
    Analyze an IPv4 network and display all relevant information
    """
    network = ipaddress.IPv4Network(network_str, strict=False)

    print(f"Network Analysis: {network_str}")
    print("=" * 50)

    # Basic info
    print(f"Network Address:    {network.network_address}")
    print(f"Broadcast Address:  {network.broadcast_address}")
    print(f"Subnet Mask:        {network.netmask}")
    print(f"Wildcard Mask:      {network.hostmask}")
    print(f"CIDR Notation:      /{network.prefixlen}")

    # Address counts
    print(f"\nTotal Addresses:    {network.num_addresses}")
    print(f"Usable Hosts:       {network.num_addresses - 2 if network.num_addresses > 2 else network.num_addresses}")

    # Host range
    hosts = list(network.hosts())
    if hosts:
        print(f"First Usable Host:  {hosts[0]}")
        print(f"Last Usable Host:   {hosts[-1]}")

    # Binary representation
    print(f"\nBinary Network:     {bin(int(network.network_address))[2:].zfill(32)}")
    print(f"Binary Mask:        {bin(int(network.netmask))[2:].zfill(32)}")

    return network

# Example analysis
print("EXAMPLE 1: Standard /24 Network")
print("-" * 50)
analyze_network("192.168.1.0/24")

print("\n\nEXAMPLE 2: /27 Subnet")
print("-" * 50)
analyze_network("10.0.0.0/27")

print("\n\nEXAMPLE 3: Check if IP is in network")
print("-" * 50)
network = ipaddress.IPv4Network("192.168.1.0/24")
test_ips = ["192.168.1.50", "192.168.2.50", "192.168.1.255"]

for ip_str in test_ips:
    ip = ipaddress.IPv4Address(ip_str)
    in_network = ip in network
    print(f"{ip_str} in 192.168.1.0/24: {in_network}")

# Subnet division example
import ipaddress

def divide_network(network_str, new_prefix):
    """
    Divide a network into smaller subnets
    """
    network = ipaddress.IPv4Network(network_str)

    if new_prefix <= network.prefixlen:
        raise ValueError(f"New prefix must be larger than {network.prefixlen}")

    subnets = list(network.subnets(new_prefix=new_prefix))

    print(f"Dividing {network_str} into /{new_prefix} subnets:")
    print("=" * 60)

    for i, subnet in enumerate(subnets):
        hosts = list(subnet.hosts())
        first_host = hosts[0] if hosts else "N/A"
        last_host = hosts[-1] if hosts else "N/A"

        print(f"Subnet {i+1}: {subnet}")
        print(f"  Network:   {subnet.network_address}")
        print(f"  Broadcast: {subnet.broadcast_address}")
        print(f"  Range:     {first_host} - {last_host}")
        print(f"  Hosts:     {len(hosts)}")
        print()

    return subnets

# Divide a /24 into four /26 subnets
print("Scenario: Divide 192.168.1.0/24 into 4 departments")
print("-" * 60)
divide_network("192.168.1.0/24", 26)

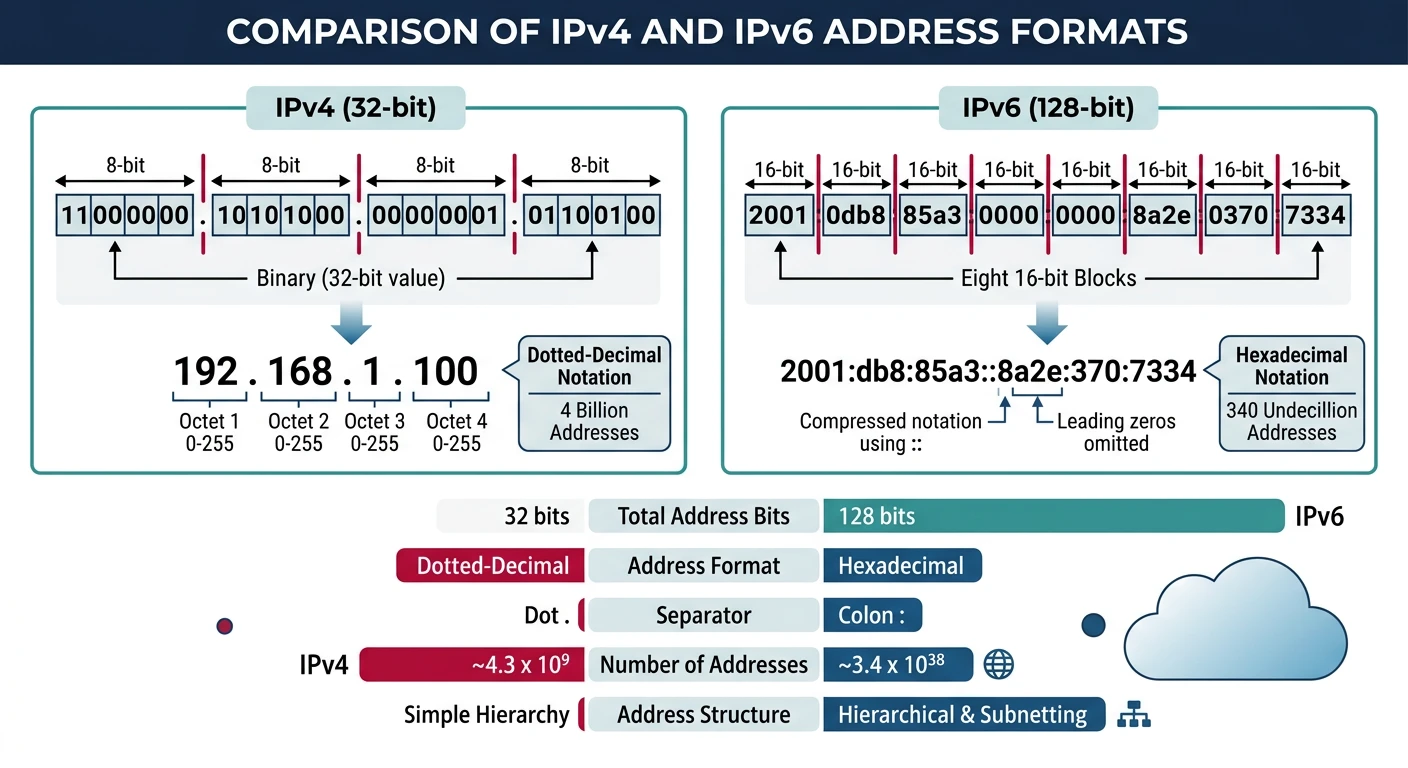

IPv6 Addressing

IPv6 was designed to solve IPv4 address exhaustion. With 128-bit addresses, it provides 340 undecillion addresses—enough for every atom on Earth's surface!

IPv6 Address Format

Full IPv6 Address:
2001:0db8:85a3:0000:0000:8a2e:0370:7334

Structure:
- 8 groups of 4 hexadecimal digits
- Separated by colons
- Each group = 16 bits
- Total = 128 bits

Compression Rules:

1. Leading zeros in a group can be omitted:
   2001:0db8:0001:0000:0000:0000:0000:0001
   → 2001:db8:1:0:0:0:0:1

2. One sequence of consecutive all-zero groups can be replaced with ::
   2001:db8:1:0:0:0:0:1
   → 2001:db8:1::1

3. :: can only be used ONCE in an address
   (otherwise ambiguous how many zeros)

Examples:
   ::1                     = Loopback (like 127.0.0.1)
   ::                      = All zeros (unspecified)
   2001:db8::              = 2001:db8:0:0:0:0:0:0
   fe80::1                 = Link-local address
   2001:db8:85a3::8a2e:370:7334 = Typical compressed form

# Working with IPv6 in Python
import ipaddress

# Create IPv6 address objects
full_addr = ipaddress.IPv6Address('2001:0db8:85a3:0000:0000:8a2e:0370:7334')
compressed = ipaddress.IPv6Address('2001:db8:85a3::8a2e:370:7334')
loopback = ipaddress.IPv6Address('::1')

print("IPv6 Address Analysis")
print("=" * 60)

for addr in [full_addr, compressed, loopback]:
    print(f"\nAddress: {addr}")
    print(f"  Compressed:  {addr.compressed}")
    print(f"  Exploded:    {addr.exploded}")
    print(f"  Is loopback: {addr.is_loopback}")
    print(f"  Is link-local: {addr.is_link_local}")
    print(f"  Is global:   {addr.is_global}")
    print(f"  Is private:  {addr.is_private}")

# IPv6 network analysis
print("\n\nIPv6 Network Analysis")
print("=" * 60)
network = ipaddress.IPv6Network('2001:db8::/32')
print(f"Network:     {network}")
print(f"Prefix:      /{network.prefixlen}")
print(f"Num addresses: {network.num_addresses}")
print(f"First addr:  {network.network_address}")
print(f"Last addr:   {network.broadcast_address}")

# Common IPv6 prefix sizes
print("\n\nCommon IPv6 Allocations")
print("=" * 60)
allocations = [
    ("/32", "Regional Internet Registry (RIR) to ISP"),
    ("/48", "ISP to Customer site"),
    ("/56", "ISP to Residential customer"),
    ("/64", "Single subnet (standard)"),
    ("/128", "Single host (loopback, etc.)")
]
for prefix, description in allocations:
    print(f"{prefix:8} - {description}")

IPv6 Address Types

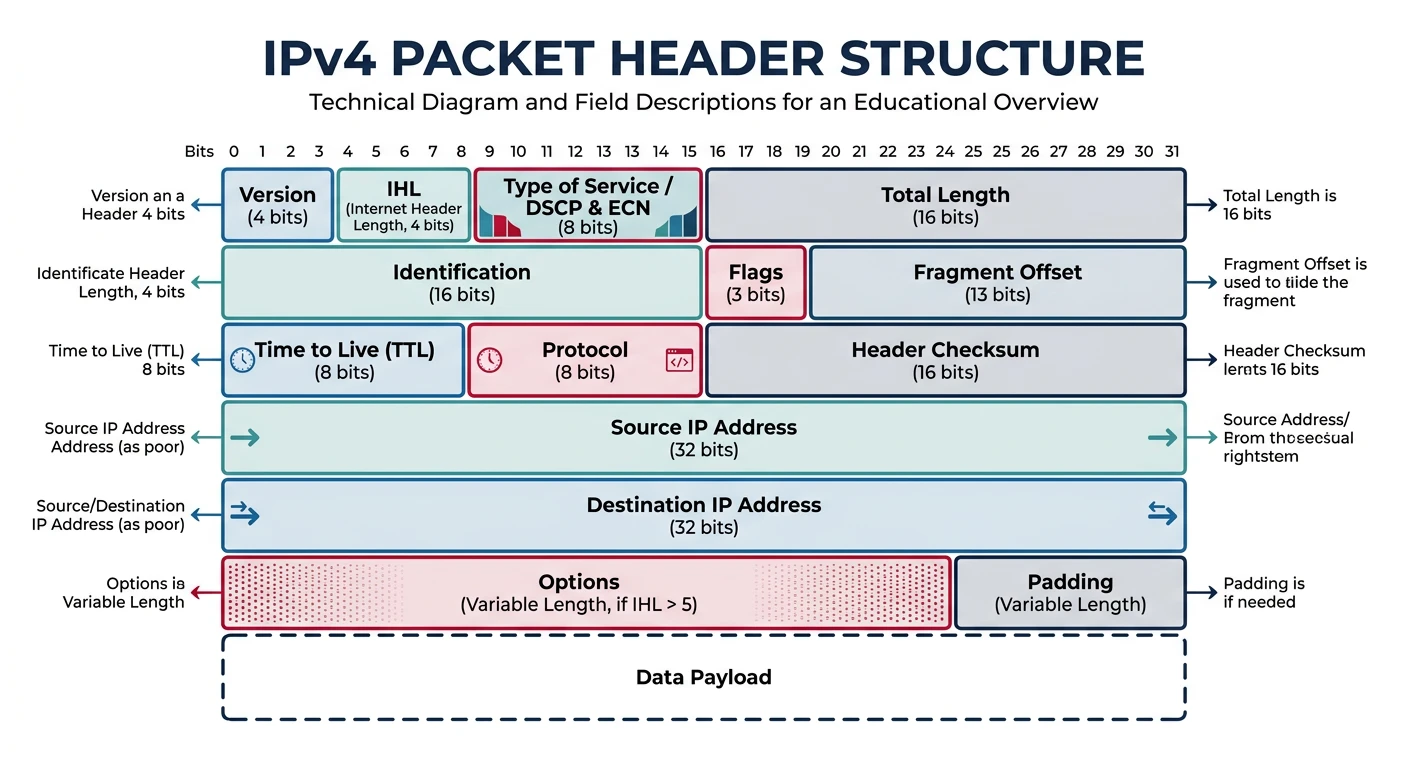

IP Packet Structure

Understanding the IP header helps you debug network issues, analyze packet captures, and understand how routing decisions are made.

 0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|Version|  IHL  |    DSCP   |ECN|         Total Length          |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|         Identification        |Flags|     Fragment Offset     |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|  Time to Live |    Protocol   |        Header Checksum        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                       Source IP Address                       |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Destination IP Address                     |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Options (if IHL > 5)                       |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Key Fields:
- Version (4 bits): Always 4 for IPv4
- IHL (4 bits): Header length in 32-bit words (min 5 = 20 bytes)
- TTL (8 bits): Decremented by each router, prevents infinite loops
- Protocol (8 bits): 1=ICMP, 6=TCP, 17=UDP, 47=GRE, 50=ESP
- Source/Dest IP: 32-bit addresses

# Parse IPv4 header in Python
import struct

def parse_ipv4_header(data):
    """Parse IPv4 packet header"""
    # First 20 bytes are the minimum IPv4 header
    # Unpack first byte separately to extract version and IHL
    version_ihl = data[0]
    version = version_ihl >> 4
    ihl = version_ihl & 0x0F
    header_length = ihl * 4  # In bytes

    # Unpack rest of the header
    dscp_ecn, total_length = struct.unpack('!BH', data[1:4])
    identification, flags_frag = struct.unpack('!HH', data[4:8])

    flags = flags_frag >> 13
    fragment_offset = flags_frag & 0x1FFF

    ttl, protocol, checksum = struct.unpack('!BBH', data[8:12])
    src_ip = '.'.join(str(b) for b in data[12:16])
    dst_ip = '.'.join(str(b) for b in data[16:20])

    protocols = {1: 'ICMP', 6: 'TCP', 17: 'UDP', 47: 'GRE', 50: 'ESP'}

    return {
        'version': version,
        'header_length': header_length,
        'dscp': dscp_ecn >> 2,
        'ecn': dscp_ecn & 0x03,
        'total_length': total_length,
        'identification': identification,
        'flags': {
            'reserved': (flags >> 2) & 1,
            'dont_fragment': (flags >> 1) & 1,
            'more_fragments': flags & 1
        },
        'fragment_offset': fragment_offset,
        'ttl': ttl,
        'protocol': protocols.get(protocol, f'Unknown ({protocol})'),
        'protocol_num': protocol,
        'checksum': hex(checksum),
        'source': src_ip,
        'destination': dst_ip
    }

# Example: Parse a sample IPv4 packet header
sample_header = bytes([
    0x45,                   # Version (4) + IHL (5)
    0x00,                   # DSCP + ECN
    0x00, 0x3c,             # Total length (60)
    0x1c, 0x46,             # Identification
    0x40, 0x00,             # Flags (DF) + Fragment offset
    0x40,                   # TTL (64)
    0x06,                   # Protocol (TCP)
    0xb1, 0xe6,             # Checksum
    0xc0, 0xa8, 0x01, 0x64, # Source: 192.168.1.100
    0x8e, 0xfa, 0xc4, 0xe4  # Dest: 142.250.196.228 (Google)
])

parsed = parse_ipv4_header(sample_header)
print("IPv4 Header Analysis")
print("=" * 50)
for key, value in parsed.items():
    if isinstance(value, dict):
        print(f"{key}:")
        for k, v in value.items():
            print(f"  {k}: {v}")
    else:
        print(f"{key}: {value}")

IPv6 Header

 0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|Version| Traffic Class |           Flow Label                  |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|         Payload Length        |  Next Header  |   Hop Limit   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                                                               |
+                                                               +
|                                                               |
+                         Source Address                        +
|                                                               |
+                          (128 bits)                           +
|                                                               |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                                                               |
+                                                               +
|                                                               |
+                      Destination Address                      +
|                                                               |
+                          (128 bits)                           +
|                                                               |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Key Differences from IPv4:
- Fixed 40-byte header (simpler for routers)
- No checksum (handled by upper layers)
- No fragmentation fields (source handles it)
- Flow Label for QoS
- Extension headers for optional features

IP Fragmentation

# Check MTU on your system

# Linux
ip link show | grep mtu
# or
cat /sys/class/net/eth0/mtu

# Windows
netsh interface ipv4 show subinterfaces

# macOS
networksetup -getMTU en0

# Test path MTU to a destination (Linux)
tracepath google.com

# Ping with specific size (don't fragment)
# Linux
ping -M do -s 1472 google.com   # 1472 + 28 (headers) = 1500

# Windows
ping -f -l 1472 google.com

# macOS
ping -D -s 1472 google.com

ICMP: Internet Control Message Protocol

ICMP provides error reporting and diagnostic functions for IP. It's the protocol behind ping and traceroute.

Ping and Traceroute

# Ping - Test connectivity using ICMP Echo Request/Reply

# Basic ping
ping google.com

# Ping with count
ping -c 4 google.com           # Linux/macOS
ping -n 4 google.com           # Windows

# Ping with specific TTL
ping -t 10 google.com          # Linux
ping -i 10 google.com          # macOS

# Continuous ping with timestamp
ping -D google.com             # Linux (show timestamp)


# Traceroute - Discover the path packets take

# Linux
traceroute google.com

# Windows
tracert google.com

# Using ICMP instead of UDP (Linux)
sudo traceroute -I google.com

# Show AS numbers
traceroute -A google.com

# MTR - Combined ping + traceroute (live updating)
mtr google.com

# Implement ping in Python (requires root/admin)
import socket
import struct
import time
import select

def calculate_checksum(data):
    """Calculate ICMP checksum"""
    if len(data) % 2:
        data += b'\x00'

    checksum = 0
    for i in range(0, len(data), 2):
        word = (data[i] << 8) + data[i + 1]
        checksum += word

    checksum = (checksum >> 16) + (checksum & 0xFFFF)
    checksum = ~checksum & 0xFFFF
    return checksum

def create_icmp_packet(icmp_id, sequence):
    """Create an ICMP Echo Request packet"""
    # Type 8 = Echo Request, Code 0
    icmp_type = 8
    icmp_code = 0
    checksum = 0

    # Header without checksum
    header = struct.pack('!BBHHH', icmp_type, icmp_code, checksum, icmp_id, sequence)

    # Data payload (timestamp)
    data = struct.pack('!d', time.time())

    # Calculate checksum
    checksum = calculate_checksum(header + data)

    # Rebuild header with checksum
    header = struct.pack('!BBHHH', icmp_type, icmp_code, checksum, icmp_id, sequence)

    return header + data

def ping(host, timeout=2):
    """
    Send ICMP Echo Request and measure RTT
    Note: Requires root/administrator privileges
    """
    try:
        # Resolve hostname
        dest_ip = socket.gethostbyname(host)

        # Create raw socket for ICMP
        icmp_socket = socket.socket(socket.AF_INET, socket.SOCK_RAW, socket.IPPROTO_ICMP)
        icmp_socket.settimeout(timeout)

        # Create and send packet
        icmp_id = 1
        sequence = 1
        packet = create_icmp_packet(icmp_id, sequence)

        send_time = time.time()
        icmp_socket.sendto(packet, (dest_ip, 0))

        # Wait for reply
        ready = select.select([icmp_socket], [], [], timeout)

        if ready[0]:
            recv_packet, addr = icmp_socket.recvfrom(1024)
            recv_time = time.time()

            # Parse reply (skip IP header - 20 bytes)
            icmp_header = recv_packet[20:28]
            icmp_type, code, checksum, p_id, seq = struct.unpack('!BBHHH', icmp_header)

            if icmp_type == 0:  # Echo Reply
                rtt = (recv_time - send_time) * 1000
                return {
                    'success': True,
                    'host': host,
                    'ip': dest_ip,
                    'rtt_ms': round(rtt, 2),
                    'ttl': recv_packet[8]  # TTL from IP header
                }

        return {'success': False, 'host': host, 'error': 'Timeout'}

    except PermissionError:
        return {'success': False, 'error': 'Root/Admin privileges required'}
    except socket.gaierror:
        return {'success': False, 'error': f'Cannot resolve {host}'}
    except Exception as e:
        return {'success': False, 'error': str(e)}

# Example (run with sudo/admin)
print("Note: Running ping requires root/administrator privileges")
print("Example usage: sudo python script.py")
print()
print("Expected output format:")
print({
    'success': True,
    'host': 'google.com',
    'ip': '142.250.185.46',
    'rtt_ms': 15.23,
    'ttl': 117
})

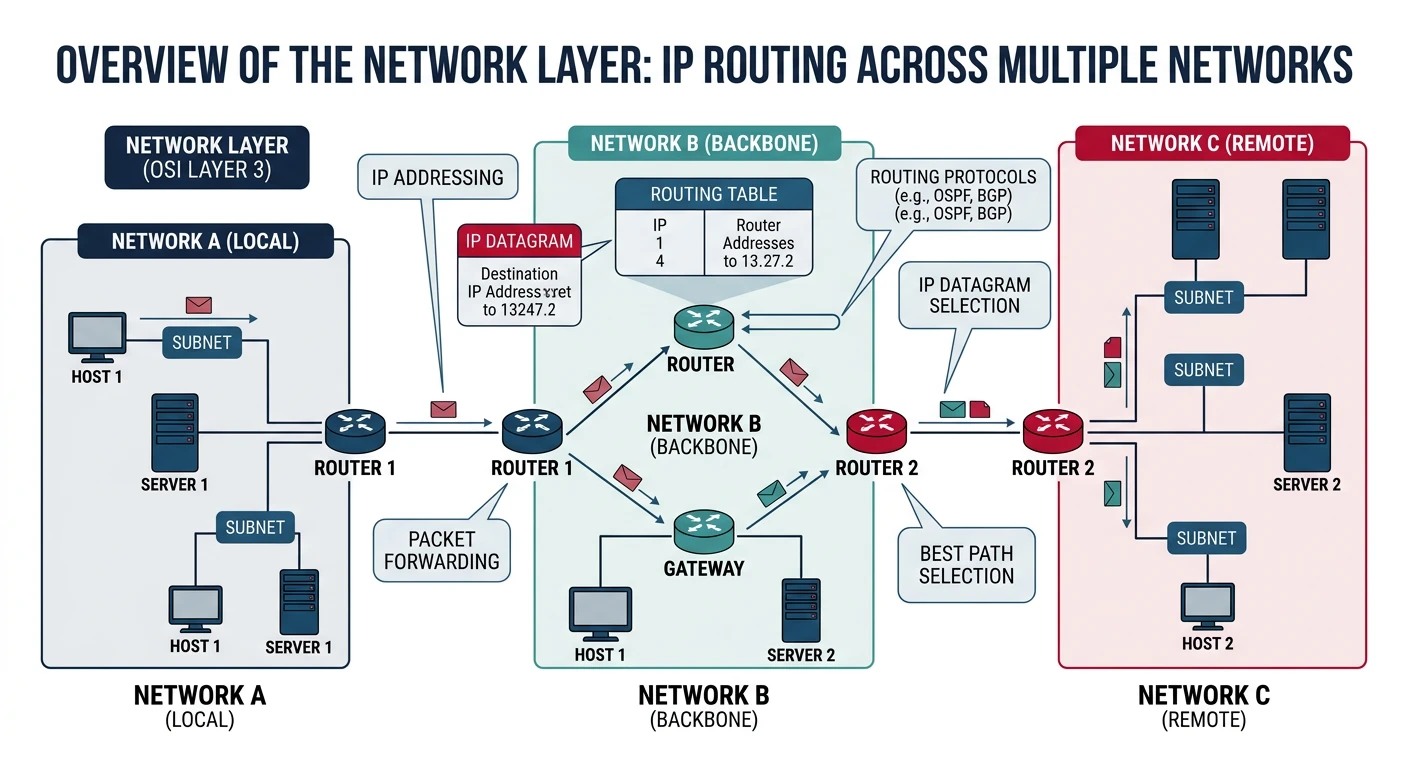

Routing Fundamentals

Routing is the process of selecting paths for traffic in a network. Routers use routing tables to decide where to forward packets.

# View routing table on different systems

# Linux
ip route show
# or
route -n
# or
netstat -rn

# Windows
route print
# or
netstat -rn

# macOS
netstat -rn

# Example Linux output:
# default via 192.168.1.1 dev eth0 proto dhcp metric 100
# 192.168.1.0/24 dev eth0 proto kernel scope link src 192.168.1.100

# Explanation:
# default         - Default route (0.0.0.0/0)
# via 192.168.1.1 - Next hop (gateway)
# dev eth0        - Outgoing interface
# metric 100      - Route preference (lower = preferred)

# Simulate a simple routing table lookup
class Router:
    """Simple router simulation with longest prefix matching"""

    def __init__(self, name):
        self.name = name
        self.routes = []  # List of (network, next_hop, interface)

    def add_route(self, network, next_hop, interface):
        """Add a route to the routing table"""
        import ipaddress
        net = ipaddress.IPv4Network(network)
        self.routes.append({
            'network': net,
            'prefix': network,
            'next_hop': next_hop,
            'interface': interface
        })
        # Sort by prefix length (longest first) for proper matching
        self.routes.sort(key=lambda r: r['network'].prefixlen, reverse=True)

    def lookup(self, destination):
        """Find the best route for a destination (longest prefix match)"""
        import ipaddress
        dest_ip = ipaddress.IPv4Address(destination)

        for route in self.routes:
            if dest_ip in route['network']:
                return {
                    'destination': destination,
                    'matched_route': route['prefix'],
                    'next_hop': route['next_hop'],
                    'interface': route['interface']
                }

        return {'destination': destination, 'result': 'No route found'}

    def show_routes(self):
        """Display routing table"""
        print(f"\nRouting Table for {self.name}")
        print("=" * 60)
        print(f"{'Network':<20} {'Next Hop':<16} {'Interface':<12}")
        print("-" * 60)
        for route in self.routes:
            print(f"{route['prefix']:<20} {route['next_hop']:<16} {route['interface']:<12}")

# Create a router with typical routes
router = Router("R1")

# Add routes (specific to general)
router.add_route("192.168.1.0/24", "directly_connected", "eth0")
router.add_route("192.168.2.0/24", "192.168.1.254", "eth0")
router.add_route("10.0.0.0/8", "192.168.1.253", "eth0")
router.add_route("0.0.0.0/0", "192.168.1.1", "eth0")  # Default route

router.show_routes()

# Test lookups
print("\nRoute Lookups:")
print("-" * 60)
test_destinations = [
    "192.168.1.50",   # Local network
    "192.168.2.100",  # Adjacent network
    "10.50.100.200",  # Remote private network
    "8.8.8.8",        # Internet (Google DNS)
]

for dest in test_destinations:
    result = router.lookup(dest)
    print(f"\n{dest}:")
    for key, value in result.items():
        print(f"  {key}: {value}")

Routing Protocols

BGP: The Internet's Routing Protocol

# Explore BGP and AS information

# Look up ASN for an IP
whois -h whois.radb.net 8.8.8.8

# View BGP looking glass (web tools)
# https://bgp.he.net/
# https://www.ripe.net/analyse/internet-measurements/routing-information-service-ris

# Check your own public IP's ASN
curl ipinfo.io

# Traceroute with AS numbers
traceroute -A google.com

# Example output shows AS path:
# 1  192.168.1.1 [AS0]      0.5ms
# 2  10.0.0.1 [AS12345]     5.2ms
# 3  72.14.238.1 [AS15169]  10.1ms  # Google's AS

NAT: Network Address Translation

NAT allows multiple devices to share a single public IP address. It's what lets your entire home network access the internet through one IP from your ISP.

Outbound (Private → Public):
1. Device 192.168.1.100 sends packet to 8.8.8.8
2. Router receives packet
3. Router changes source IP: 192.168.1.100 → 203.0.113.50 (public IP)
4. Router records mapping in NAT table
5. Packet sent to internet with public source IP

Inbound (Public → Private):
1. Response arrives for 203.0.113.50
2. Router looks up NAT table
3. Router changes dest IP: 203.0.113.50 → 192.168.1.100
4. Packet forwarded to internal device

NAT Table Example:
┌─────────────────────┬──────────────────────┬───────────────┐
│ Internal            │ External             │ Destination   │
│ 192.168.1.100:54321 │ 203.0.113.50:12345   │ 8.8.8.8:53   │
│ 192.168.1.101:54322 │ 203.0.113.50:12346   │ 8.8.8.8:53   │
└─────────────────────┴──────────────────────┴───────────────┘

Types of NAT

# NAT configuration examples (Linux iptables)

# Enable IP forwarding
echo 1 > /proc/sys/net/ipv4/ip_forward

# Basic SNAT (Source NAT) - Masquerade
# All traffic from 192.168.1.0/24 gets NAT'd to eth0's IP
iptables -t nat -A POSTROUTING -s 192.168.1.0/24 -o eth0 -j MASQUERADE

# SNAT with specific public IP
iptables -t nat -A POSTROUTING -s 192.168.1.0/24 -o eth0 -j SNAT --to-source 203.0.113.50

# DNAT (Destination NAT) - Port forwarding
# Forward port 8080 on public IP to internal web server
iptables -t nat -A PREROUTING -i eth0 -p tcp --dport 8080 -j DNAT --to-destination 192.168.1.100:80

# View NAT rules
iptables -t nat -L -n -v

# View active NAT connections
conntrack -L

Hands-On Exercises

Exercise 1: Network Exploration Tools

# Complete IP investigation toolkit

# 1. Find your IP configuration
# Linux
ip addr show
ip route show

# Windows
ipconfig /all

# macOS
ifconfig
netstat -rn

# 2. Test connectivity
ping -c 4 google.com
ping -c 4 8.8.8.8

# 3. Trace the path
traceroute google.com

# 4. DNS lookup
nslookup google.com
dig google.com

# 5. Check what's listening
netstat -tlnp    # Linux
netstat -an      # Windows

# 6. Check your public IP
curl ifconfig.me
curl ipinfo.io/json

Exercise 2: Python IP Tools

# Comprehensive IP utility library
import ipaddress
import socket

class IPTools:
    """Collection of IP utility functions"""

    @staticmethod
    def get_network_info(ip_cidr):
        """Get comprehensive network information"""
        network = ipaddress.IPv4Network(ip_cidr, strict=False)

        return {
            'network': str(network.network_address),
            'broadcast': str(network.broadcast_address),
            'netmask': str(network.netmask),
            'wildcard': str(network.hostmask),
            'prefix_length': network.prefixlen,
            'total_hosts': network.num_addresses,
            'usable_hosts': max(0, network.num_addresses - 2),
            'first_usable': str(list(network.hosts())[0]) if list(network.hosts()) else None,
            'last_usable': str(list(network.hosts())[-1]) if list(network.hosts()) else None,
            'is_private': network.is_private
        }

    @staticmethod
    def ip_in_range(ip, network):
        """Check if IP is in a network range"""
        addr = ipaddress.IPv4Address(ip)
        net = ipaddress.IPv4Network(network, strict=False)
        return addr in net

    @staticmethod
    def get_ip_class(ip):
        """Determine classful address class (historical)"""
        first_octet = int(ip.split('.')[0])

        if first_octet < 128:
            return 'A'
        elif first_octet < 192:
            return 'B'
        elif first_octet < 224:
            return 'C'
        elif first_octet < 240:
            return 'D (Multicast)'
        else:
            return 'E (Reserved)'

    @staticmethod
    def resolve_hostname(hostname):
        """Resolve hostname to IP address"""
        try:
            ip = socket.gethostbyname(hostname)
            return {'hostname': hostname, 'ip': ip, 'success': True}
        except socket.gaierror as e:
            return {'hostname': hostname, 'error': str(e), 'success': False}

    @staticmethod
    def reverse_lookup(ip):
        """Reverse DNS lookup"""
        try:
            hostname = socket.gethostbyaddr(ip)[0]
            return {'ip': ip, 'hostname': hostname, 'success': True}
        except socket.herror as e:
            return {'ip': ip, 'error': str(e), 'success': False}

    @staticmethod
    def summarize_networks(networks):
        """Summarize multiple networks into supernets"""
        nets = [ipaddress.IPv4Network(n) for n in networks]
        return list(ipaddress.collapse_addresses(nets))

# Examples
tools = IPTools()

# Network analysis
print("Network Analysis: 192.168.1.0/24")
print("=" * 50)
info = tools.get_network_info("192.168.1.0/24")
for key, value in info.items():
    print(f"  {key}: {value}")

# IP range check
print("\n\nIP Range Checks:")
print("=" * 50)
test_ips = ["192.168.1.50", "192.168.2.50", "10.0.0.1"]
for ip in test_ips:
    in_range = tools.ip_in_range(ip, "192.168.1.0/24")
    print(f"  {ip} in 192.168.1.0/24: {in_range}")

# Hostname resolution
print("\n\nHostname Resolution:")
print("=" * 50)
hosts = ["google.com", "github.com", "invalid.hostname.test"]
for host in hosts:
    result = tools.resolve_hostname(host)
    if result['success']:
        print(f"  {host} → {result['ip']}")
    else:
        print(f"  {host} → Error: {result['error']}")

# Network summarization (route aggregation)
print("\n\nNetwork Summarization:")
print("=" * 50)
networks_to_summarize = [
    "192.168.0.0/24",
    "192.168.1.0/24",
    "192.168.2.0/24",
    "192.168.3.0/24"
]
print(f"  Original: {networks_to_summarize}")
summarized = tools.summarize_networks(networks_to_summarize)
print(f"  Summarized: {[str(n) for n in summarized]}")

Summary & Next Steps

Continue the Series
