Complete Protocols Master Part 9: Email Protocols

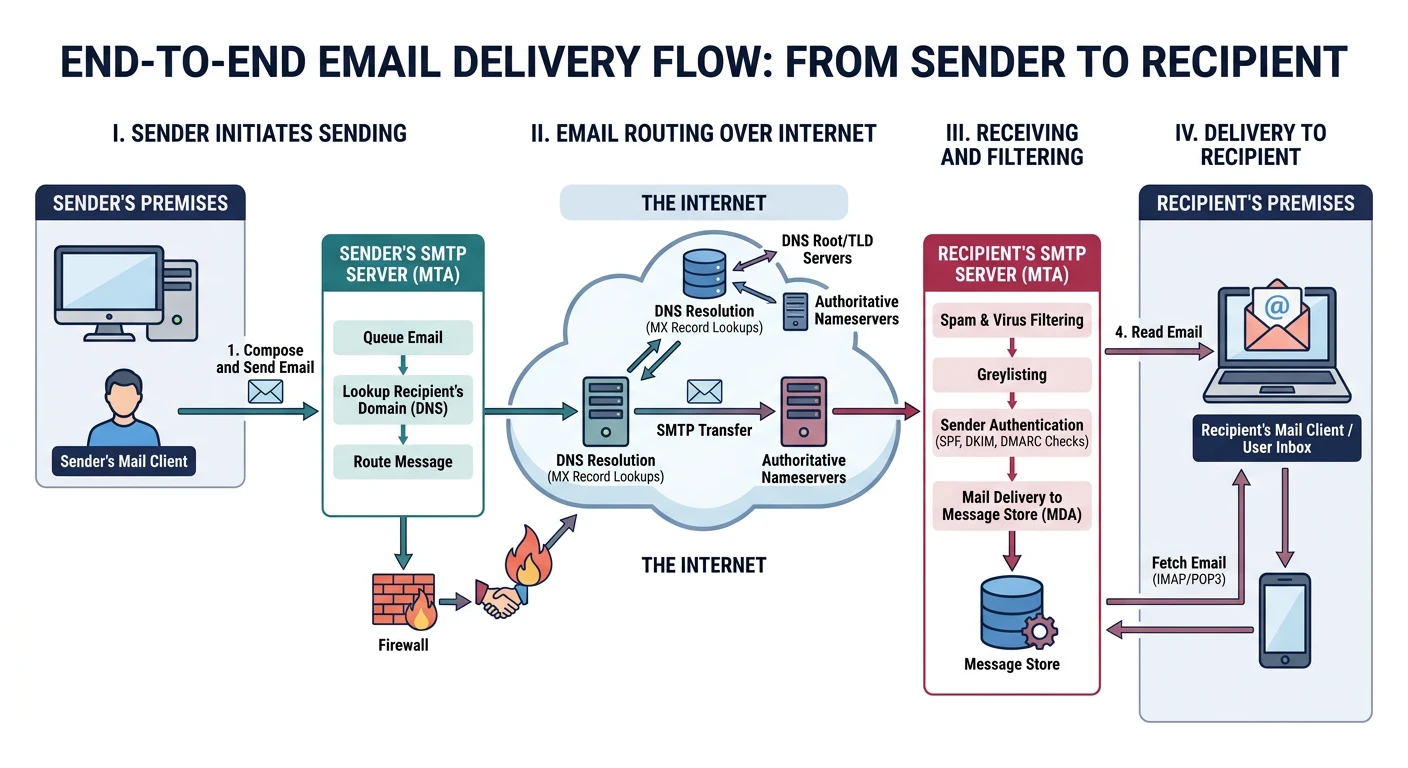

SMTP: Simple Mail Transfer Protocol

SMTP is the protocol for sending email. It's text-based and human-readable, making it easy to debug but also easy to abuse without proper authentication.

SMTP Commands:
EHLO/HELO    - Identify client (EHLO for extensions)
AUTH         - Authenticate (LOGIN, PLAIN)
MAIL FROM:   - Specify sender
RCPT TO:     - Specify recipient(s)
DATA         - Start message content (end with .\r\n)
QUIT         - End session

Response Codes:
220 - Service ready
250 - OK
354 - Start mail input
421 - Service unavailable
550 - Mailbox not found

Ports:
25  - Server-to-server relay
465 - SMTP over SSL
587 - Submission (client-to-server with STARTTLS)

# SMTP session example
S: 220 smtp.example.com ESMTP ready
C: EHLO client.example.net
S: 250-smtp.example.com
S: 250-STARTTLS
S: 250-AUTH LOGIN PLAIN
S: 250 OK
C: STARTTLS
S: 220 Ready to start TLS
[TLS handshake]
C: AUTH LOGIN
S: 334 VXNlcm5hbWU6
C: [base64 username]
S: 334 UGFzc3dvcmQ6
C: [base64 password]
S: 235 Authentication successful
C: MAIL FROM:<alice@example.com>
S: 250 OK
C: RCPT TO:<bob@example.org>
S: 250 OK
C: DATA
S: 354 Start mail input
C: From: Alice <alice@example.com>
C: To: Bob <bob@example.org>
C: Subject: Hello!
C:
C: Hi Bob, this is a test.
C: .
S: 250 OK: queued
C: QUIT
S: 221 Bye

# Python SMTP example
from email.mime.text import MIMEText
from email.mime.multipart import MIMEMultipart

def demonstrate_smtp_message():
    """Show SMTP message structure"""
    msg = MIMEMultipart()
    msg['From'] = 'alice@example.com'
    msg['To'] = 'bob@example.org'
    msg['Subject'] = 'Hello from Python!'

    body = "Hi Bob,\n\nThis is a test email.\n\nBest,\nAlice"
    msg.attach(MIMEText(body, 'plain'))

    print("SMTP Message Structure:")
    print("=" * 50)
    print(msg.as_string())

    print("\nTo send:")
    print("""
    import smtplib
    with smtplib.SMTP('smtp.example.com', 587) as server:
        server.starttls()
        server.login('user', 'password')
        server.send_message(msg)
    """)

demonstrate_smtp_message()

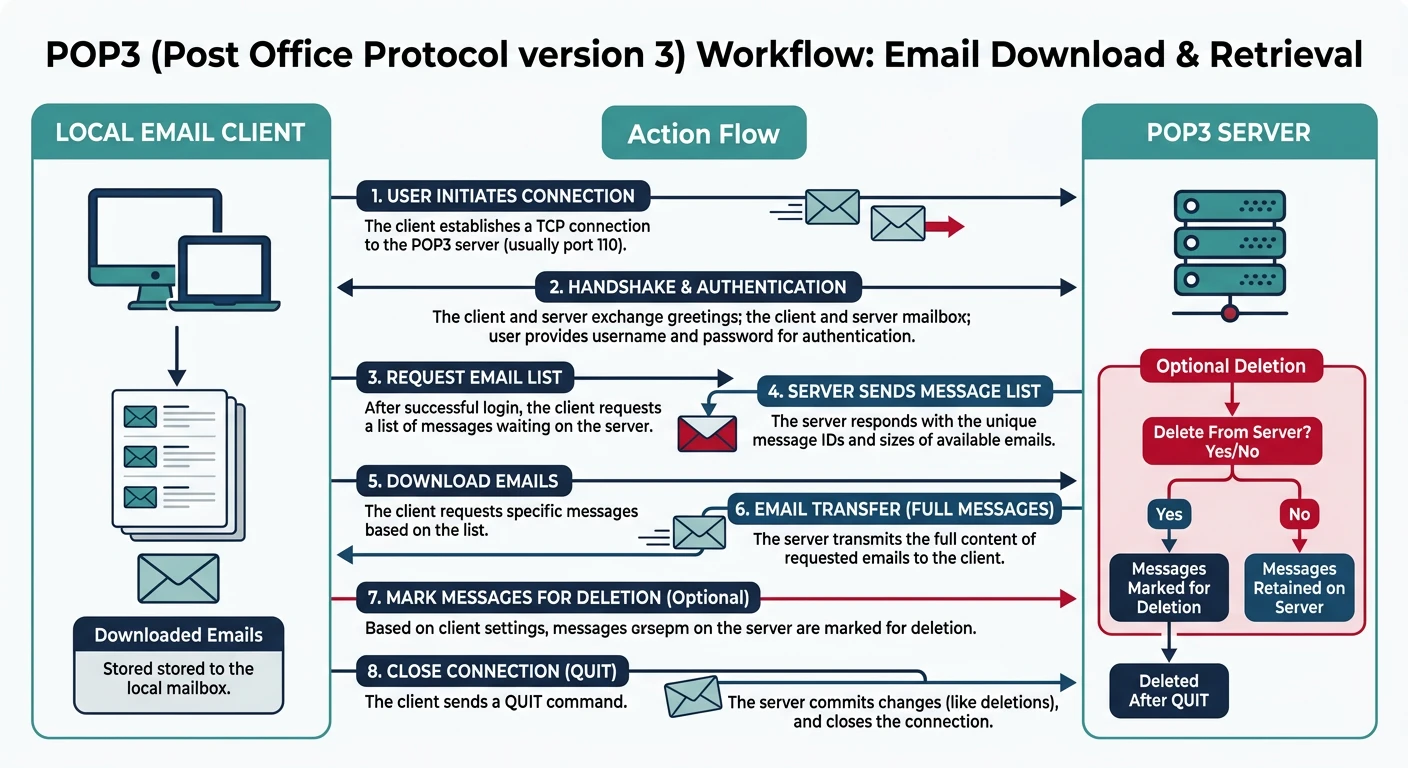

POP3: Post Office Protocol

POP3 is simple|download emails, optionally delete from server. Best for single-device access with local storage.

POP3 Commands:
USER <name>    - Username
PASS <pwd>     - Password
STAT           - Mailbox status
LIST           - List messages
RETR <n>       - Retrieve message n
DELE <n>       - Delete message n
QUIT           - Commit and close

Session:
S: +OK POP3 ready
C: USER bob
S: +OK
C: PASS secret
S: +OK 3 messages
C: STAT
S: +OK 3 12048
C: RETR 1
S: +OK
S: [message content]
S: .
C: DELE 1
S: +OK deleted
C: QUIT
S: +OK bye

Ports: 110 (plain), 995 (SSL)

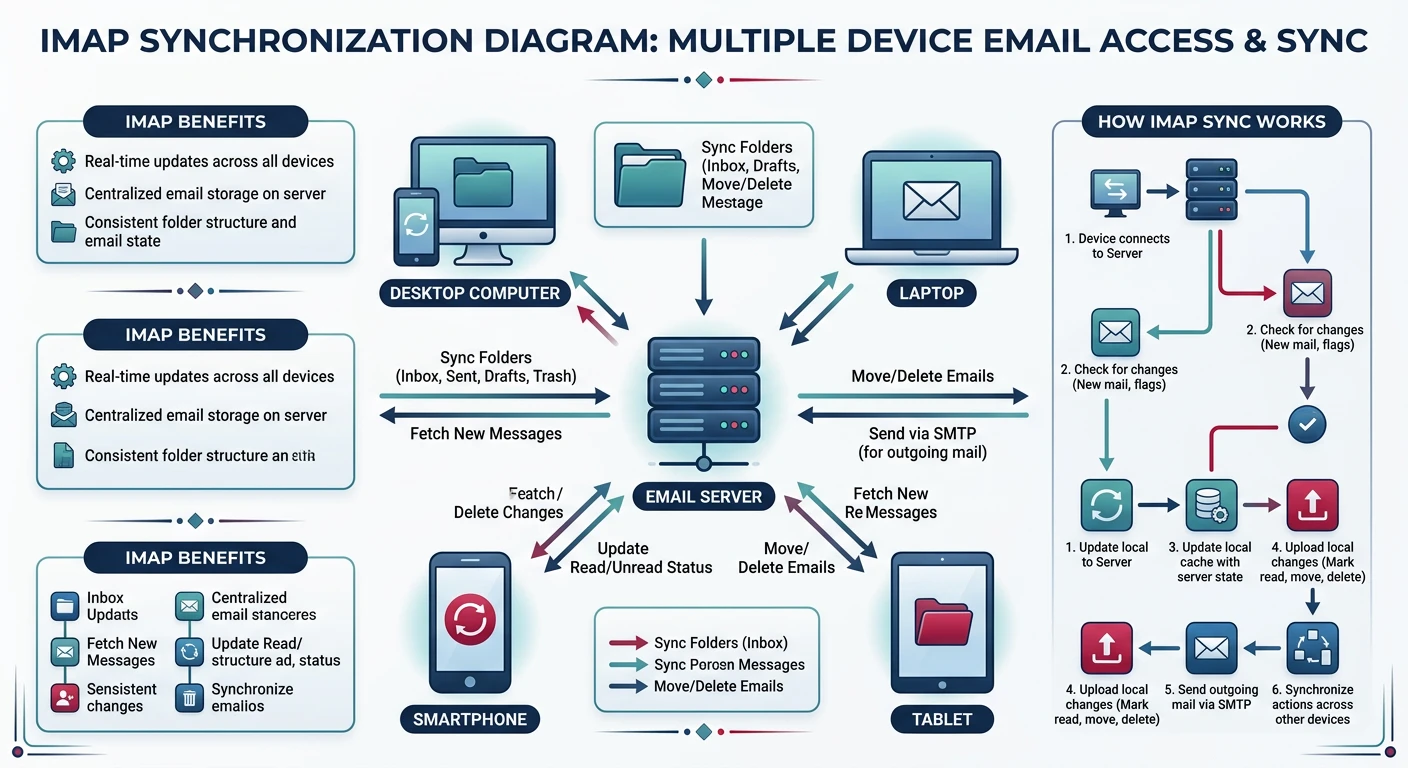

IMAP: Internet Message Access Protocol

IMAP keeps email on the server and synchronizes across devices. It supports folders, server-side search, and partial message fetching.

# IMAP session example
S: * OK IMAP4rev1 ready
C: a001 LOGIN bob secret
S: a001 OK LOGIN completed
C: a002 SELECT INBOX
S: * 172 EXISTS
S: * 1 RECENT
S: a002 OK SELECT completed
C: a003 FETCH 172 (FLAGS BODY[HEADER])
S: * 172 FETCH (FLAGS (\Recent) BODY[HEADER] {...})
S: a003 OK FETCH completed
C: a004 STORE 172 +FLAGS (\Seen)
S: a004 OK STORE completed
C: a005 LOGOUT
S: * BYE
S: a005 OK LOGOUT completed

Key Commands: LOGIN, SELECT, FETCH, STORE, SEARCH, COPY, IDLE
Ports: 143 (STARTTLS), 993 (SSL)

# IMAP operations demo
def demonstrate_imap_operations():
    """Demonstrate IMAP concepts"""
    operations = [
        ("LOGIN", "Authenticate"),
        ("SELECT INBOX", "Open mailbox"),
        ("SEARCH UNSEEN", "Find unread"),
        ("FETCH n (BODY[HEADER])", "Get headers"),
        ("FETCH n (BODY[TEXT])", "Get body"),
        ("STORE n +FLAGS (\\Seen)", "Mark read"),
        ("COPY n Archive", "Copy to folder"),
        ("IDLE", "Wait for new mail (push)")
    ]

    print("IMAP Operations:")
    print("=" * 50)
    for cmd, desc in operations:
        print(f"  {cmd:30} - {desc}")

    print("\nPython example:")
    print("""
    import imaplib

    mail = imaplib.IMAP4_SSL('imap.example.com', 993)
    mail.login('user', 'password')
    mail.select('INBOX')

    status, messages = mail.search(None, 'UNSEEN')
    for num in messages[0].split():
        status, data = mail.fetch(num, '(RFC822)')
        # Process email...

    mail.logout()
    """)

demonstrate_imap_operations()

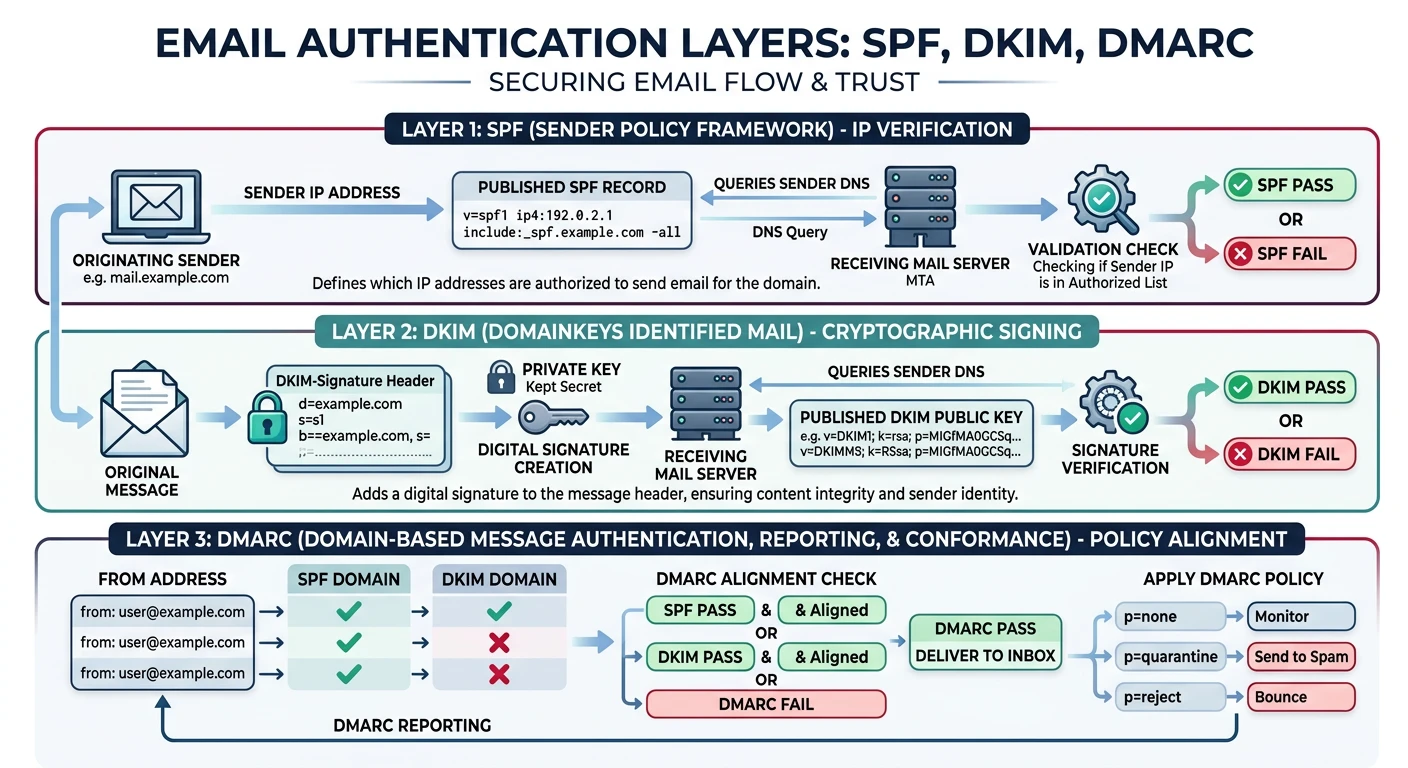

Email Security: SPF, DKIM, DMARC

Email was designed without authentication|the From header can be anything! SPF, DKIM, and DMARC work together to prevent spoofing.

SPF: DNS TXT record listing authorized sending IPs

example.com. TXT "v=spf1 ip4:192.0.2.0/24 include:_spf.google.com -all"

Components:
v=spf1           - Version
ip4:192.0.2.0/24 - Allow IP range
include:...      - Include another SPF
a                - Allow A record IPs
mx               - Allow MX record IPs
-all             - Hard fail others
~all             - Soft fail others

Check: Does sending IP match SPF record for envelope sender domain?
Limitation: Doesn't check From: header, breaks with forwarding

DKIM: Cryptographically signs email headers + body

DKIM-Signature: v=1; a=rsa-sha256; d=example.com; s=selector1;
  h=from:to:subject:date;
  bh=base64_body_hash;
  b=base64_signature

Public key in DNS:
selector1._domainkey.example.com. TXT "v=DKIM1; k=rsa; p=MIGfMA0..."

Advantages:
| Survives forwarding (signature travels with email)
| Verifies content integrity
| More robust than SPF alone

DMARC: Ties SPF + DKIM together with policy and reporting

_dmarc.example.com. TXT "v=DMARC1; p=reject; rua=mailto:dmarc@example.com"

Parameters:
p=none       - Monitor only
p=quarantine - Send to spam
p=reject     - Block entirely
rua=         - Aggregate report email
ruf=         - Forensic report email

ALIGNMENT (Critical):
SPF checks: envelope sender (MAIL FROM)
DKIM checks: signing domain (d=)
DMARC requires: at least one must ALIGN with visible From: header!

Recommended rollout:
1. p=none (monitor)
2. p=quarantine pct=10 (test 10%)
3. p=quarantine pct=100
4. p=reject (full protection)

# Email authentication check simulation
def check_email_auth(email_info):
    """Simulate SPF/DKIM/DMARC checks"""
    results = {'spf': 'unknown', 'dkim': 'unknown', 'dmarc': 'unknown'}

    # SPF: Is sending IP authorized?
    envelope_domain = email_info['envelope_from'].split('@')[1]
    if email_info['sending_ip'] in email_info.get('spf_ips', []):
        results['spf'] = 'pass'
    else:
        results['spf'] = 'fail'

    # DKIM: Is signature valid?
    results['dkim'] = 'pass' if email_info.get('dkim_valid') else 'fail'

    # DMARC: Alignment check
    header_domain = email_info['header_from'].split('@')[1]
    dkim_domain = email_info.get('dkim_domain', '')

    spf_aligned = envelope_domain == header_domain
    dkim_aligned = dkim_domain == header_domain

    if (results['spf'] == 'pass' and spf_aligned) or \
       (results['dkim'] == 'pass' and dkim_aligned):
        results['dmarc'] = 'pass'
    else:
        results['dmarc'] = 'fail'

    return results

# Test: Legitimate email
print("Legitimate Email:")
result = check_email_auth({
    'header_from': 'alice@example.com',
    'envelope_from': 'bounce@example.com',
    'sending_ip': '192.0.2.10',
    'spf_ips': ['192.0.2.10'],
    'dkim_valid': True,
    'dkim_domain': 'example.com'
})
for k, v in result.items():
    print(f"  {k.upper()}: {v}")

# Test: Spoofed email
print("\nSpoofed Email:")
result = check_email_auth({
    'header_from': 'ceo@example.com',
    'envelope_from': 'attacker@evil.com',
    'sending_ip': '198.51.100.5',
    'spf_ips': ['192.0.2.10'],
    'dkim_valid': False,
    'dkim_domain': ''
})
for k, v in result.items():
    print(f"  {k.upper()}: {v}")
print("  Action: REJECT (DMARC policy)")

Hands-On Exercises

# Check email authentication records
dig example.com TXT | grep spf           # SPF
dig selector._domainkey.example.com TXT  # DKIM
dig _dmarc.example.com TXT               # DMARC
dig example.com MX                       # Mail servers

# Tools: mxtoolbox.com, mail-tester.com
