While high-level languages abstract away hardware details, assembly gives you direct control over the CPU. Every line translates to (usually) one machine instruction.

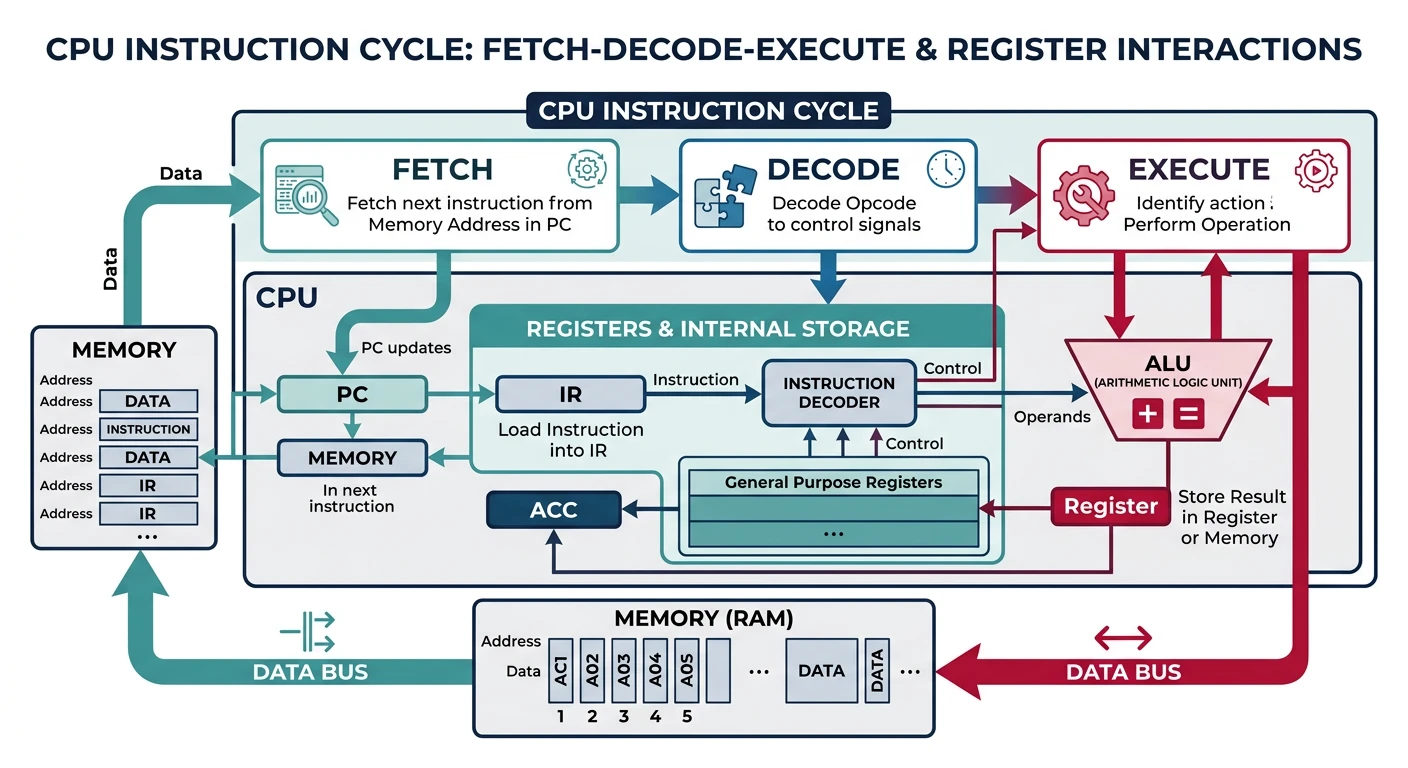

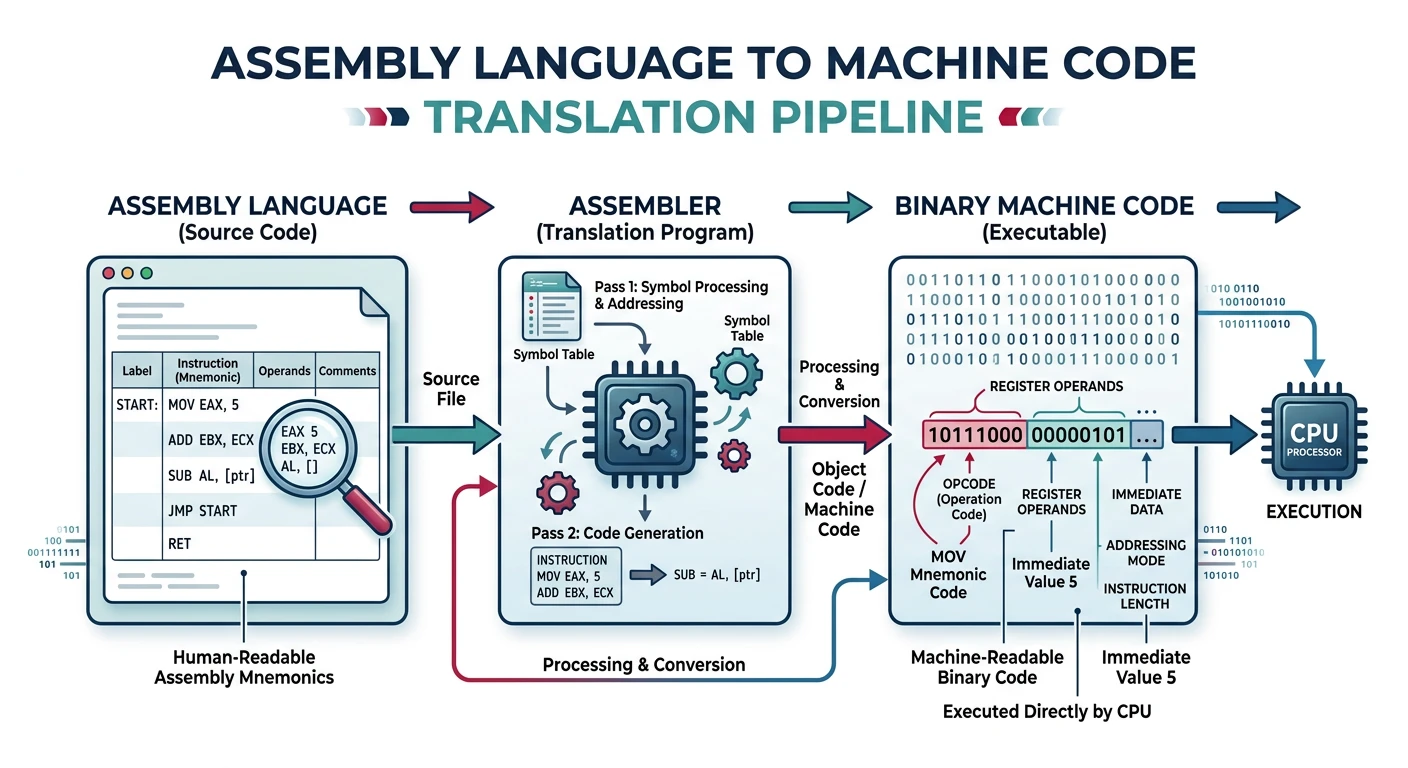

The Language Hierarchy
Concept Map
High-level → Assembly → Machine Code → Hardware
C/Python: Assembly: Machine Code: CPU Action:
───────── ───────── ──────────── ───────────
x = a + b MOV EAX, [a] 8B 45 F8 Load from memory
ADD EAX, [b] 03 45 FC Add from memory
MOV [x], EAX 89 45 F4 Store to memory
Each level adds abstraction, hiding complexity from the programmer.
Why Learn Assembly?
- Debugging — Understand crash dumps and core files
- Performance — Identify bottlenecks at the instruction level
- Security — Analyze malware, write exploits, understand vulnerabilities
- Systems Programming — Write bootloaders, OS kernels, device drivers
- Reverse Engineering — Understand compiled binaries
Registers
Registers are the CPU's fastest storage—tiny but incredibly fast memory cells built directly into the processor. Understanding registers is fundamental to assembly programming.
x86-64 General Purpose Registers

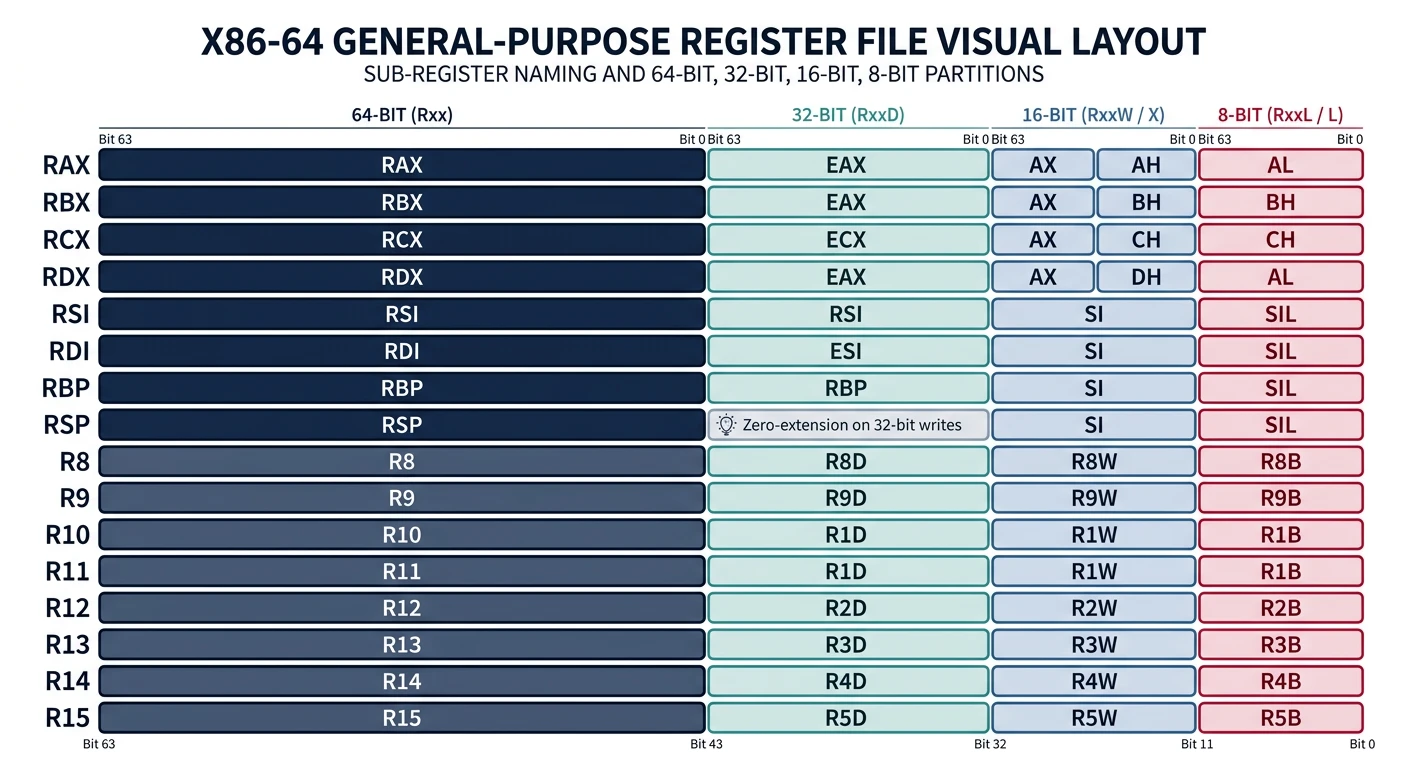

x86-64 Register Architecture:
┌──────────────────────────────────────────────────────────────────────┐
│ 64-bit RAX │
├───────────────────────────────────┬──────────────────────────────────┤
│ (high 32 bits) │ EAX (32-bit) │
│ ├─────────────────┬────────────────┤
│ │ │ AX (16-bit) │
│ │ ├────────┬───────┤
│ │ │AH (8b) │AL (8b)│
└───────────────────────────────────┴─────────────────┴────────┴───────┘
Bits 63-32 (not directly named) Bits 31-16 15-8 7-0
All 16 general-purpose registers:
┌────────────────┬────────────────┬─────────────────────────────────────┐
│ 64-bit │ 32-bit │ Common Usage │
├────────────────┼────────────────┼─────────────────────────────────────┤
│ RAX │ EAX │ Accumulator, return value │
│ RBX │ EBX │ Base (callee-saved) │
│ RCX │ ECX │ Counter, 4th argument │
│ RDX │ EDX │ Data, 3rd argument │
│ RSI │ ESI │ Source index, 2nd argument │
│ RDI │ EDI │ Destination index, 1st argument │
│ RBP │ EBP │ Base pointer (frame pointer) │
│ RSP │ ESP │ Stack pointer │
│ R8-R15 │ R8D-R15D │ Extended registers (64-bit mode) │
└────────────────┴────────────────┴─────────────────────────────────────┘
Important: Writing to a 32-bit register (like EAX) automatically zeros the upper 32 bits of the corresponding 64-bit register (RAX). Writing to 8-bit or 16-bit parts does NOT zero upper bits!
Special Registers
Special Purpose Registers:
┌──────────────┬─────────────────────────────────────────────────────────┐
│ Register │ Purpose │
├──────────────┼─────────────────────────────────────────────────────────┤
│ RIP │ Instruction Pointer - address of NEXT instruction │
│ │ Cannot be directly modified (use JMP, CALL, RET) │
├──────────────┼─────────────────────────────────────────────────────────┤
│ RSP │ Stack Pointer - top of the stack │
│ │ Modified by PUSH, POP, CALL, RET │
├──────────────┼─────────────────────────────────────────────────────────┤
│ RBP │ Base Pointer - base of current stack frame │
│ │ Used to access function parameters and locals │
├──────────────┼─────────────────────────────────────────────────────────┤
│ RFLAGS │ Status flags - result of operations (see below) │
└──────────────┴─────────────────────────────────────────────────────────┘
Flags Register (RFLAGS)
RFLAGS Register - Status and Control Flags:
Bit: │ 11│ 10│ 9│ 8│ 7│ 6│ 5│ 4│ 3│ 2│ 1│ 0│
├───┼───┼───┼───┼───┼───┼───┼───┼───┼───┼───┼───┤
Flag: │ OF│ DF│ IF│ TF│ SF│ ZF│ -│ AF│ -│ PF│ -│ CF│
Key Flags:
┌──────┬────────────────────┬─────────────────────────────────────────┐
│ Flag │ Name │ Set When... │
├──────┼────────────────────┼─────────────────────────────────────────┤
│ ZF │ Zero Flag │ Result is zero │
│ SF │ Sign Flag │ Result is negative (MSB = 1) │
│ CF │ Carry Flag │ Unsigned overflow/borrow │
│ OF │ Overflow Flag │ Signed overflow │
│ PF │ Parity Flag │ Result has even number of 1 bits │
└──────┴────────────────────┴─────────────────────────────────────────┘
Example: SUB EAX, EBX (EAX = EAX - EBX)
If result is 0: ZF=1, SF=0
If result is -5: ZF=0, SF=1
If unsigned overflow occurred: CF=1
If signed overflow occurred: OF=1
Flags in Action: Conditional Jumps
Assembly Example
; Compare and branch
CMP EAX, EBX ; Computes EAX - EBX, sets flags, discards result
; Unsigned comparisons (use CF and ZF)
JA label ; Jump if Above (CF=0 AND ZF=0)
JB label ; Jump if Below (CF=1)
JE label ; Jump if Equal (ZF=1)
JNE label ; Jump if Not Equal (ZF=0)
; Signed comparisons (use SF, OF, and ZF)
JG label ; Jump if Greater (signed)
JL label ; Jump if Less (signed)
JGE label ; Jump if Greater or Equal
JLE label ; Jump if Less or Equal
Stack Operations
The stack is a region of memory that grows downward (from high to low addresses). It's used for function calls, local variables, and saving registers.
Push & Pop

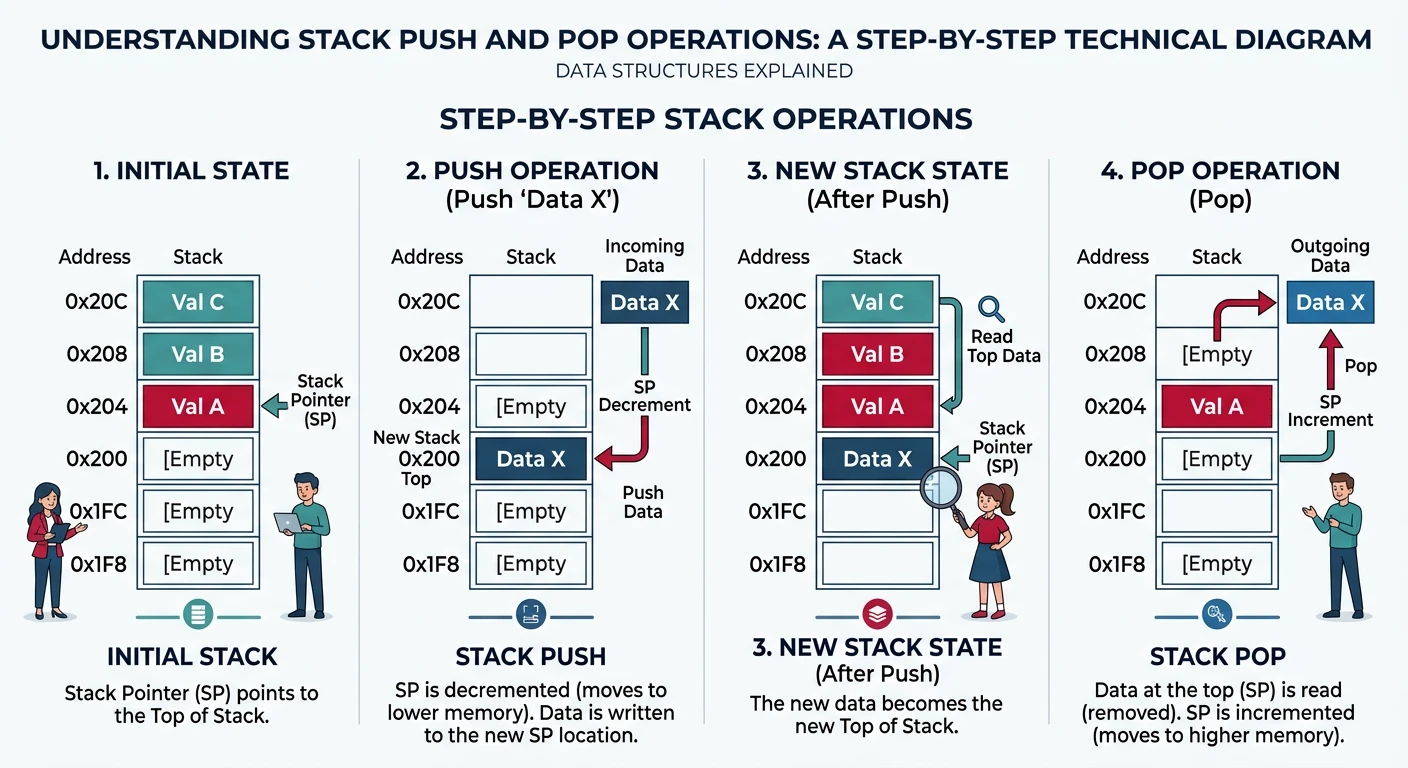

PUSH and POP Operations:
PUSH RAX: POP RAX:
───────── ────────
1. RSP = RSP - 8 1. RAX = [RSP]
2. [RSP] = RAX 2. RSP = RSP + 8
Before PUSH: After PUSH: After POP:
Higher Addresses Higher Addresses Higher Addresses
│ │ │
│ │ │
├─────────┤ ├─────────┤ ├─────────┤
RSP►│ old top │ │ old top │ RSP►│ old top │
├─────────┤ RSP►├─────────┤ ├─────────┤
│ │ │ RAX │ │ (old) │
│ │ ├─────────┤ │ │
Lower Addresses Lower Addresses Lower Addresses
Stack grows DOWN (toward lower addresses)!
Stack Frames
Each function call creates a stack frame (also called activation record) containing:

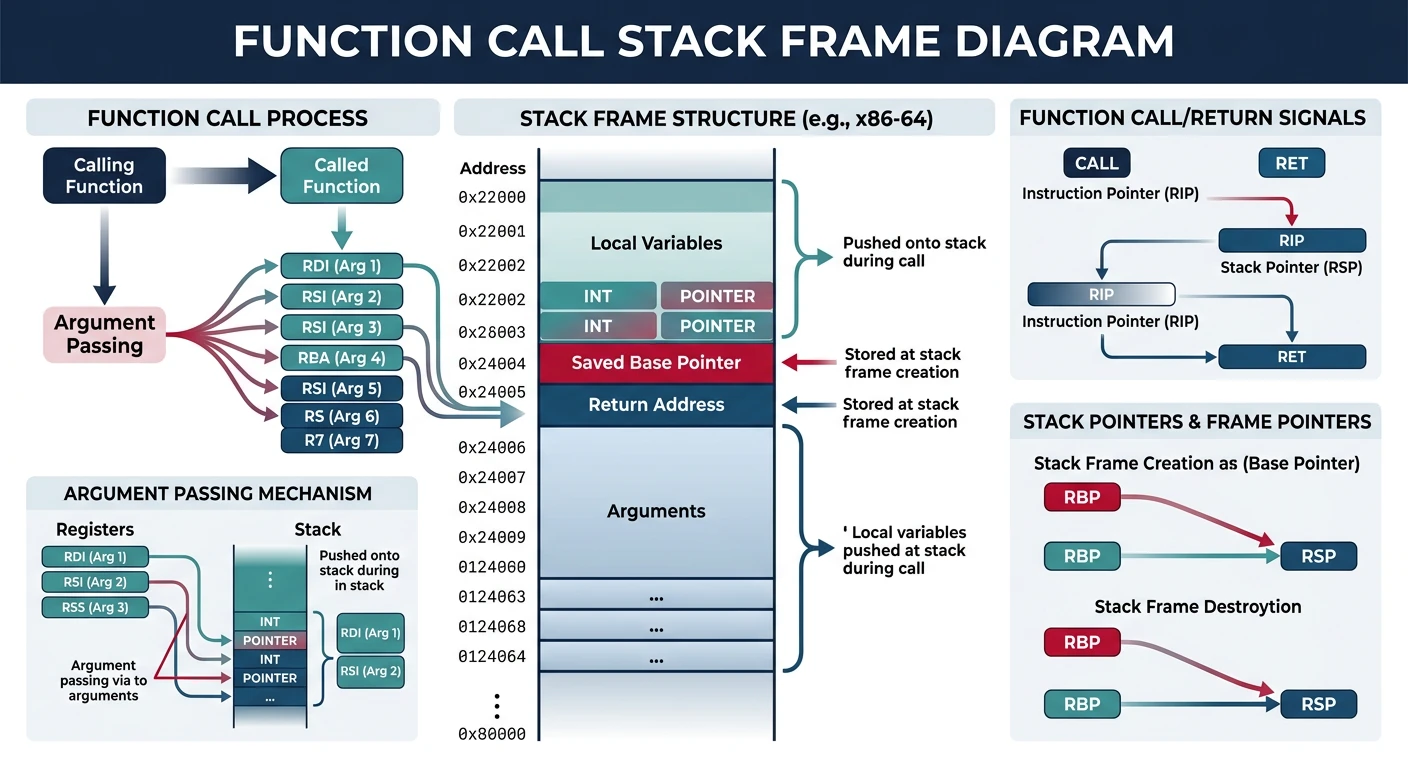

Stack Frame Structure (x86-64 System V ABI):
Higher Addresses
│
├─────────────────┤
│ Caller's Frame │
├─────────────────┤
│ Return Address │ ← Pushed by CALL instruction
├─────────────────┤
RBP ───►│ Saved RBP │ ← Points to caller's RBP
├─────────────────┤
│ Local var 1 │ ← RBP - 8
├─────────────────┤
│ Local var 2 │ ← RBP - 16
├─────────────────┤
│ Local var 3 │ ← RBP - 24
├─────────────────┤
│ (padding/align) │
├─────────────────┤
RSP ───►│ (stack top) │
│ │
Lower Addresses
Function Prologue (setup stack frame):
push rbp ; Save caller's base pointer
mov rbp, rsp ; Set up our base pointer
sub rsp, 32 ; Allocate space for locals
Function Epilogue (cleanup):
mov rsp, rbp ; Deallocate locals
pop rbp ; Restore caller's base pointer
ret ; Return to caller
Local Variables
Accessing Local Variables:
C function:
int example(int a, int b) {
int x = 10; // Local variable
int y = 20; // Local variable
return x + y + a + b;
}
Assembly (x86-64 System V):
example:
push rbp
mov rbp, rsp
sub rsp, 16 ; Space for 2 ints (with alignment)
; a is in EDI, b is in ESI (first 2 integer args)
mov DWORD PTR [rbp-4], edi ; Save a
mov DWORD PTR [rbp-8], esi ; Save b
mov DWORD PTR [rbp-12], 10 ; x = 10
mov DWORD PTR [rbp-16], 20 ; y = 20
mov eax, [rbp-12] ; Load x
add eax, [rbp-16] ; + y
add eax, [rbp-4] ; + a
add eax, [rbp-8] ; + b
leave ; mov rsp,rbp; pop rbp
ret
Calling Conventions
A calling convention defines how functions receive arguments and return values, and which registers must be preserved across calls.
cdecl Convention (32-bit x86)
cdecl Calling Convention (Legacy 32-bit):
┌────────────────────────────────────────────────────────────────┐
│ Arguments: Pushed right-to-left onto stack │
│ Return value: EAX (or EAX:EDX for 64-bit values) │
│ Caller saves: EAX, ECX, EDX (can be trashed) │
│ Callee saves: EBX, ESI, EDI, EBP (must preserve) │
│ Stack cleanup: Caller cleans up arguments │
└────────────────────────────────────────────────────────────────┘
Example: result = add(5, 3)
push 3 ; Second argument (right to left)
push 5 ; First argument
call add ; Call the function
add esp, 8 ; Caller cleans stack (2 args × 4 bytes)
mov [result], eax
System V AMD64 ABI (64-bit Linux/macOS)
System V AMD64 Calling Convention:
┌───────────────────────────────────────────────────────────────────────┐
│ Integer/pointer arguments (in order): │
│ 1st: RDI 2nd: RSI 3rd: RDX 4th: RCX 5th: R8 6th: R9 │
│ Additional arguments pushed right-to-left on stack │
├───────────────────────────────────────────────────────────────────────┤
│ Floating-point arguments: XMM0-XMM7 │
├───────────────────────────────────────────────────────────────────────┤
│ Return value: RAX (integer), XMM0 (float) │
│ For 128-bit: RAX:RDX │
├───────────────────────────────────────────────────────────────────────┤
│ Caller-saved (volatile): RAX, RCX, RDX, RSI, RDI, R8-R11 │
│ Callee-saved (preserved): RBX, RBP, R12-R15 │
├───────────────────────────────────────────────────────────────────────┤
│ Stack alignment: 16-byte aligned before CALL │
│ Red zone: 128 bytes below RSP usable without adjusting RSP │
└───────────────────────────────────────────────────────────────────────┘
Example: result = compute(a, b, c, d, e, f)
; Arguments: a=1, b=2, c=3, d=4, e=5, f=6
mov edi, 1 ; a → RDI
mov esi, 2 ; b → RSI
mov edx, 3 ; c → RDX
mov ecx, 4 ; d → RCX
mov r8d, 5 ; e → R8
mov r9d, 6 ; f → R9
call compute
; Result in RAX
Stack Alignment Warning: The stack must be 16-byte aligned BEFORE the CALL instruction. Since CALL pushes an 8-byte return address, your function should ensure the stack is 8-mod-16 before calling other functions!
Windows x64 Calling Convention
Windows x64 Calling Convention:
┌───────────────────────────────────────────────────────────────────────┐
│ Integer/pointer arguments (in order): │
│ 1st: RCX 2nd: RDX 3rd: R8 4th: R9 │
│ Additional arguments pushed right-to-left on stack │
│ (Different from System V!) │
├───────────────────────────────────────────────────────────────────────┤
│ Shadow space: Caller must reserve 32 bytes above return address │
│ (Even if function has fewer than 4 arguments!) │
├───────────────────────────────────────────────────────────────────────┤
│ Callee-saved: RBX, RBP, RDI, RSI, R12-R15, XMM6-XMM15 │
└───────────────────────────────────────────────────────────────────────┘
Stack layout for Windows x64:
├─────────────┤
│ arg 5+ │ ← If more than 4 args
├─────────────┤
│ Shadow[3] │ ← Reserved for R9
├─────────────┤
│ Shadow[2] │ ← Reserved for R8
├─────────────┤
│ Shadow[1] │ ← Reserved for RDX
├─────────────┤
│ Shadow[0] │ ← Reserved for RCX
├─────────────┤
RSP ───►│ Return addr │
├─────────────┤
Practical Assembly Examples
x86-64 Assembly Examples
; Example 1: Simple function that adds two numbers
; int add(int a, int b) { return a + b; }
global add
section .text
add:
; a is in EDI, b is in ESI (System V)
mov eax, edi ; Copy a to EAX
add eax, esi ; EAX = a + b
ret ; Return value in EAX
; Example 2: Loop - sum array elements
; int sum_array(int* arr, int count)
global sum_array
section .text
sum_array:
; RDI = arr pointer, ESI = count
xor eax, eax ; sum = 0 (XOR is fast way to zero)
test esi, esi ; Check if count == 0
jle .done ; If count <= 0, return 0
.loop:
add eax, [rdi] ; sum += *arr
add rdi, 4 ; arr++ (4 bytes per int)
dec esi ; count--
jnz .loop ; Continue if count != 0
.done:
ret
; Example 3: String length (like strlen)
; size_t my_strlen(const char* str)
global my_strlen
section .text
my_strlen:
; RDI = str pointer
mov rax, rdi ; Copy pointer
.loop:
cmp BYTE [rax], 0 ; Is current char null?
je .done ; If yes, exit
inc rax ; Move to next char
jmp .loop ; Continue
.done:
sub rax, rdi ; length = end - start
ret
ARM64 Assembly Examples
; ARM64 Example: Add two numbers
; int add(int a, int b)
.global add
.text
add:
// w0 = a, w1 = b (first two args)
add w0, w0, w1 // w0 = a + b
ret // Return (result in w0)
; ARM64 Example: Sum array
; int sum_array(int* arr, int count)
.global sum_array
.text
sum_array:
// x0 = arr, w1 = count
mov w2, #0 // sum = 0
cbz w1, .done // If count == 0, done
.loop:
ldr w3, [x0], #4 // Load *arr, then arr += 4
add w2, w2, w3 // sum += *arr
subs w1, w1, #1 // count-- and set flags
bne .loop // If count != 0, continue
.done:
mov w0, w2 // Return sum
ret
; ARM64 Conditional execution
; max = (a > b) ? a : b
.global max
max:
cmp w0, w1 // Compare a and b
csel w0, w0, w1, gt // Select a if greater, else b
ret
Debugging Assembly with GDB
Essential GDB Commands for Assembly
Debugging
# Compile with debug symbols
gcc -g -o program program.c
# Start GDB
gdb ./program
# Useful commands:
(gdb) break main # Set breakpoint at main
(gdb) run # Start program
(gdb) disassemble # Show assembly of current function
(gdb) disassemble main # Show assembly of specific function
(gdb) info registers # Show all register values
(gdb) print $rax # Print specific register
(gdb) print/x $rsp # Print in hexadecimal
(gdb) x/10i $rip # Examine 10 instructions from RIP
(gdb) x/4xg $rsp # Examine 4 quad words at RSP
(gdb) x/s $rdi # Examine string at RDI
(gdb) stepi # Step one instruction
(gdb) nexti # Step one instruction (skip calls)
(gdb) finish # Run until function returns
(gdb) layout asm # Show assembly view
(gdb) layout regs # Show registers + source
Exercises
Practice Exercises
Hands-On
- Register Trace: What's in RAX after:
mov eax, -1?
- Stack Analysis: Draw the stack after executing:
push 1
push 2
push 3
pop rax
pop rbx
- Write Assembly: Implement
int abs(int x) in x86-64 assembly
- Calling Convention: How would you call
printf("%d %d", 10, 20) in System V ABI?
- Reverse Engineering: What does this code do?
xor eax, eax
.loop:
cmp byte [rdi], 0
je .done
inc eax
inc rdi
jmp .loop
.done:
ret
Conclusion & Key Takeaways
You now have a solid foundation in assembly language—from registers and stack operations to calling conventions used in real systems.
What You've Learned:
- Registers — General purpose (RAX-R15), special (RIP, RSP, RBP), and flags
- Stack — Grows downward, PUSH/POP operations, stack frames
- Calling Conventions — System V (Linux/macOS) vs Windows x64
- x86-64 Assembly — Data movement, arithmetic, control flow
- ARM64 Assembly — RISC approach, conditional execution
- Debugging — Using GDB to analyze assembly code
Continue the Computer Architecture & OS Series
Part 3: Instruction Set Architecture (ISA)
RISC vs CISC, instruction formats, addressing modes, x86 vs ARM.
Read Article
Part 5: Assemblers, Linkers & Loaders
Object files, ELF format, static and dynamic linking.
Read Article
Part 2: Digital Logic & CPU Building Blocks
Logic gates, ALU, registers, datapath, and microarchitecture fundamentals.
Read Article
