Part 24: Capstone Projects

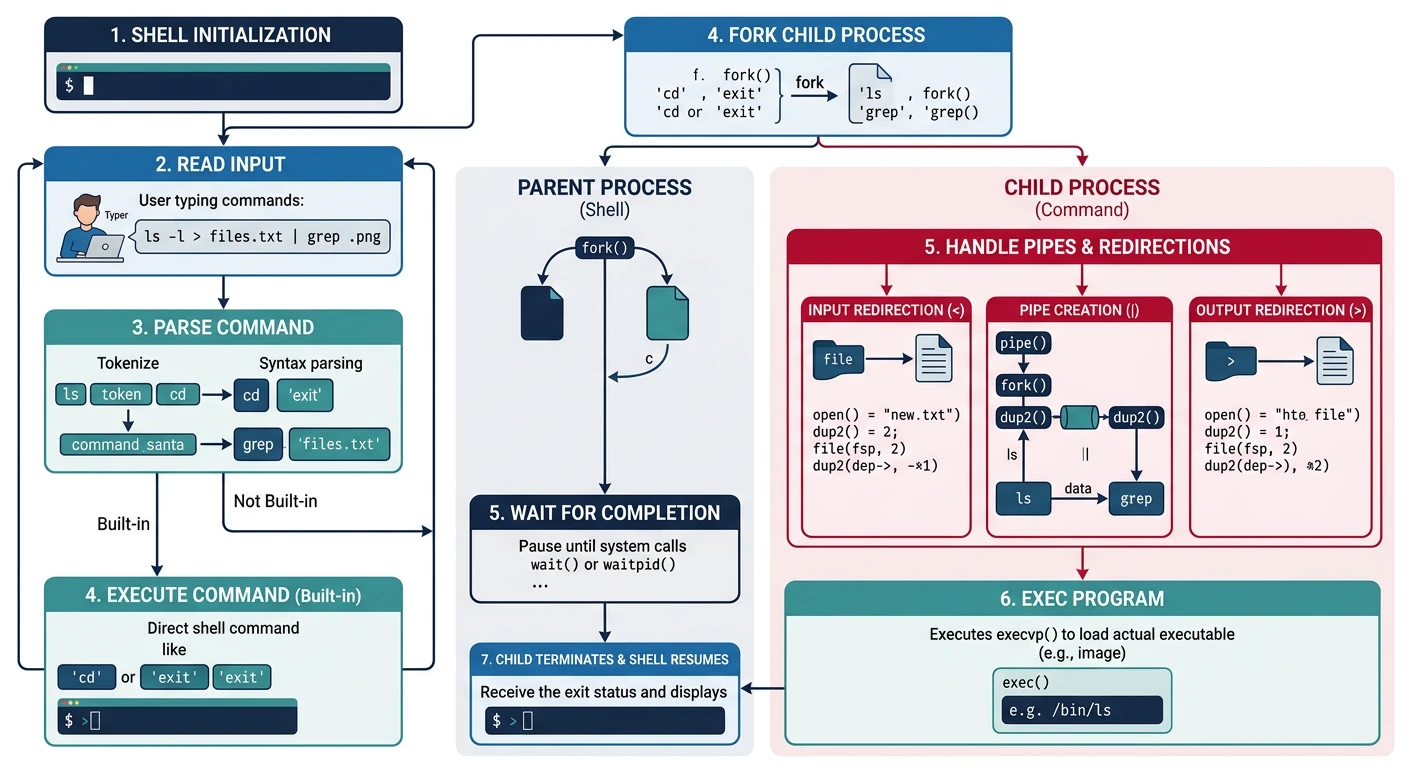

Project 1: Unix Shell

Build a simple command-line shell supporting commands, pipes, and I/O redirection.

// Mini Shell - Core structure
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <sys/wait.h>

#define MAX_LINE 1024
#define MAX_ARGS 64

void execute_command(char **args) {
    pid_t pid = fork();

    if (pid == 0) {
        // Child process
        execvp(args[0], args);
        perror("execvp failed");
        exit(1);
    } else if (pid > 0) {
        // Parent waits
        int status;
        waitpid(pid, &status, 0);
    } else {
        perror("fork failed");
    }
}

int main() {
    char line[MAX_LINE];
    char *args[MAX_ARGS];

    while (1) {
        printf("mysh> ");
        if (!fgets(line, MAX_LINE, stdin)) break;

        // Parse input into args array...
        // Handle built-ins (cd, exit)...
        // Handle pipes and redirection...

        execute_command(args);
    }
    return 0;
}

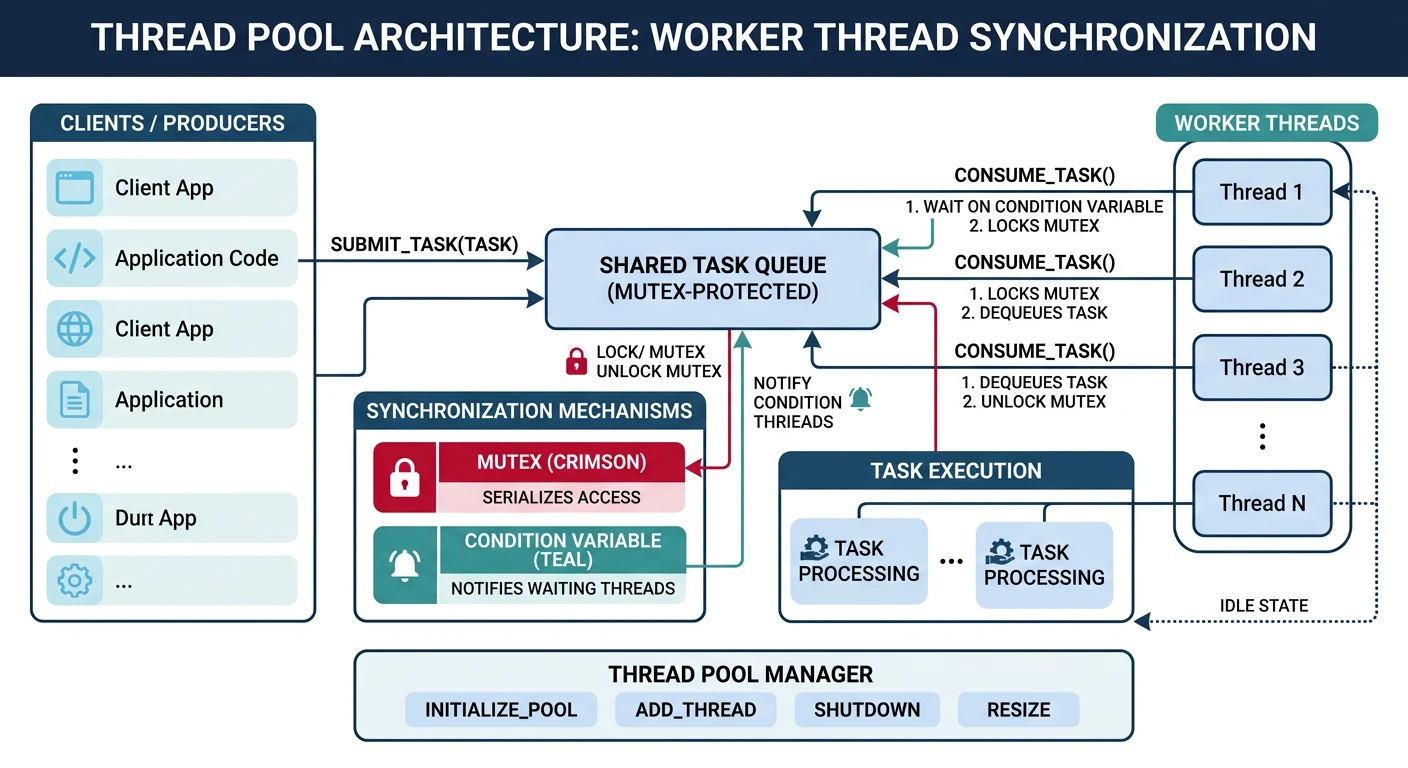

Project 2: Thread Pool

Implement a reusable thread pool for efficient task execution.

// Thread Pool - Core structure
#include <pthread.h>
#include <stdlib.h>

typedef struct {
    void (*function)(void *);
    void *argument;
} task_t;

typedef struct {
    pthread_t *threads;
    task_t *task_queue;
    int queue_size;
    int queue_front, queue_rear, queue_count;
    pthread_mutex_t lock;
    pthread_cond_t not_empty;
    pthread_cond_t not_full;
    int shutdown;
} threadpool_t;

void *worker_thread(void *arg) {
    threadpool_t *pool = (threadpool_t *)arg;

    while (1) {
        pthread_mutex_lock(&pool->lock);

        while (pool->queue_count == 0 && !pool->shutdown) {
            pthread_cond_wait(&pool->not_empty, &pool->lock);
        }

        if (pool->shutdown) {
            pthread_mutex_unlock(&pool->lock);
            break;
        }

        // Dequeue task and execute
        task_t task = pool->task_queue[pool->queue_front];
        pool->queue_front = (pool->queue_front + 1) % pool->queue_size;
        pool->queue_count--;

        pthread_cond_signal(&pool->not_full);
        pthread_mutex_unlock(&pool->lock);

        (task.function)(task.argument);
    }
    return NULL;
}

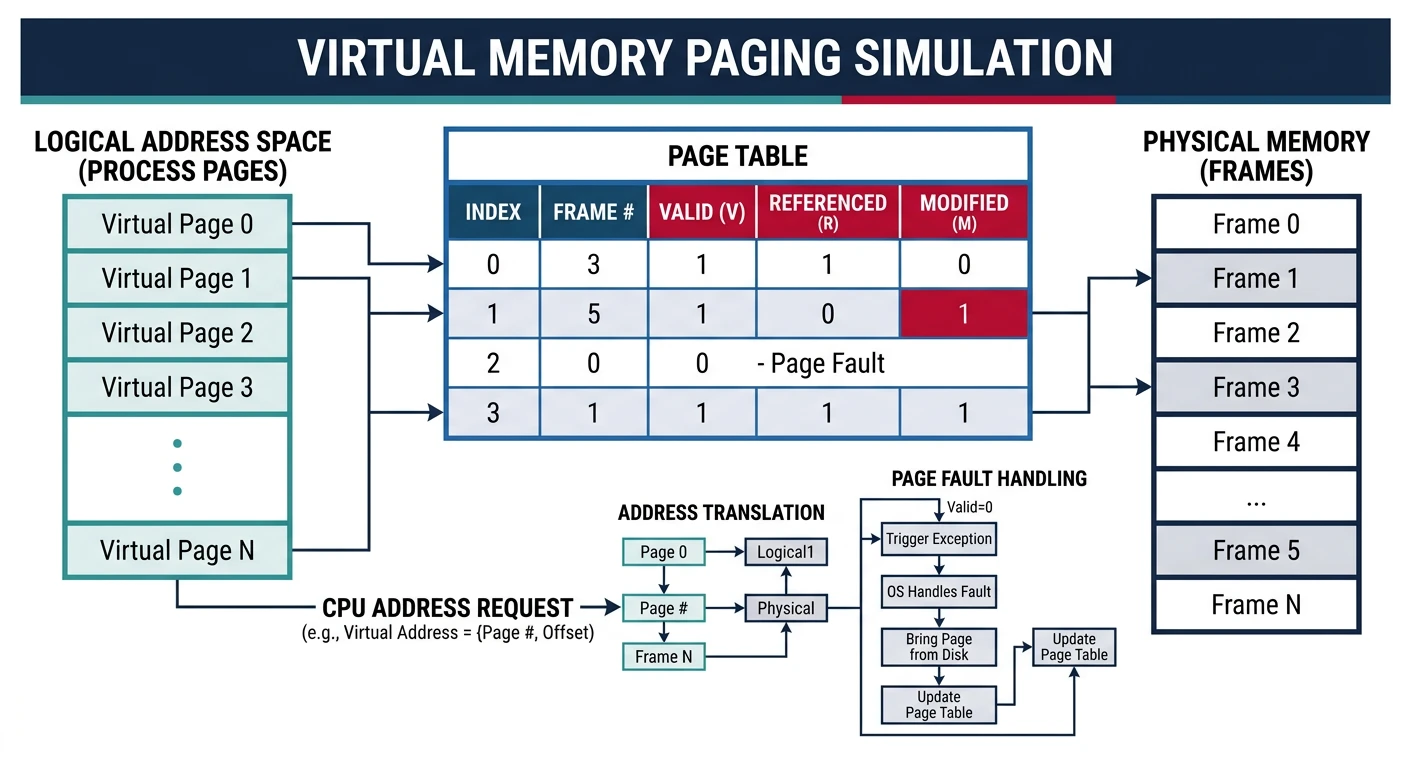

Project 3: Paging Simulator

Simulate virtual memory with page tables and replacement algorithms.

// Paging Simulator - Core structure
#include <stdio.h>
#include <stdlib.h>

#define NUM_PAGES 256
#define NUM_FRAMES 64

typedef struct {
    int valid;
    int frame_number;
    int referenced;
    int modified;
} page_table_entry_t;

typedef struct {
    int page_number;
    int loaded;
} frame_t;

page_table_entry_t page_table[NUM_PAGES];
frame_t physical_memory[NUM_FRAMES];
int page_faults = 0;

int clock_hand = 0;  // For CLOCK algorithm

int clock_replace() {
    while (1) {
        if (!page_table[physical_memory[clock_hand].page_number].referenced) {
            int victim = clock_hand;
            clock_hand = (clock_hand + 1) % NUM_FRAMES;
            return victim;
        }
        page_table[physical_memory[clock_hand].page_number].referenced = 0;
        clock_hand = (clock_hand + 1) % NUM_FRAMES;
    }
}

void access_page(int page_number) {
    if (!page_table[page_number].valid) {
        page_faults++;
        int frame = clock_replace();
        // Evict old page, load new page...
        page_table[page_number].valid = 1;
        page_table[page_number].frame_number = frame;
    }
    page_table[page_number].referenced = 1;
}

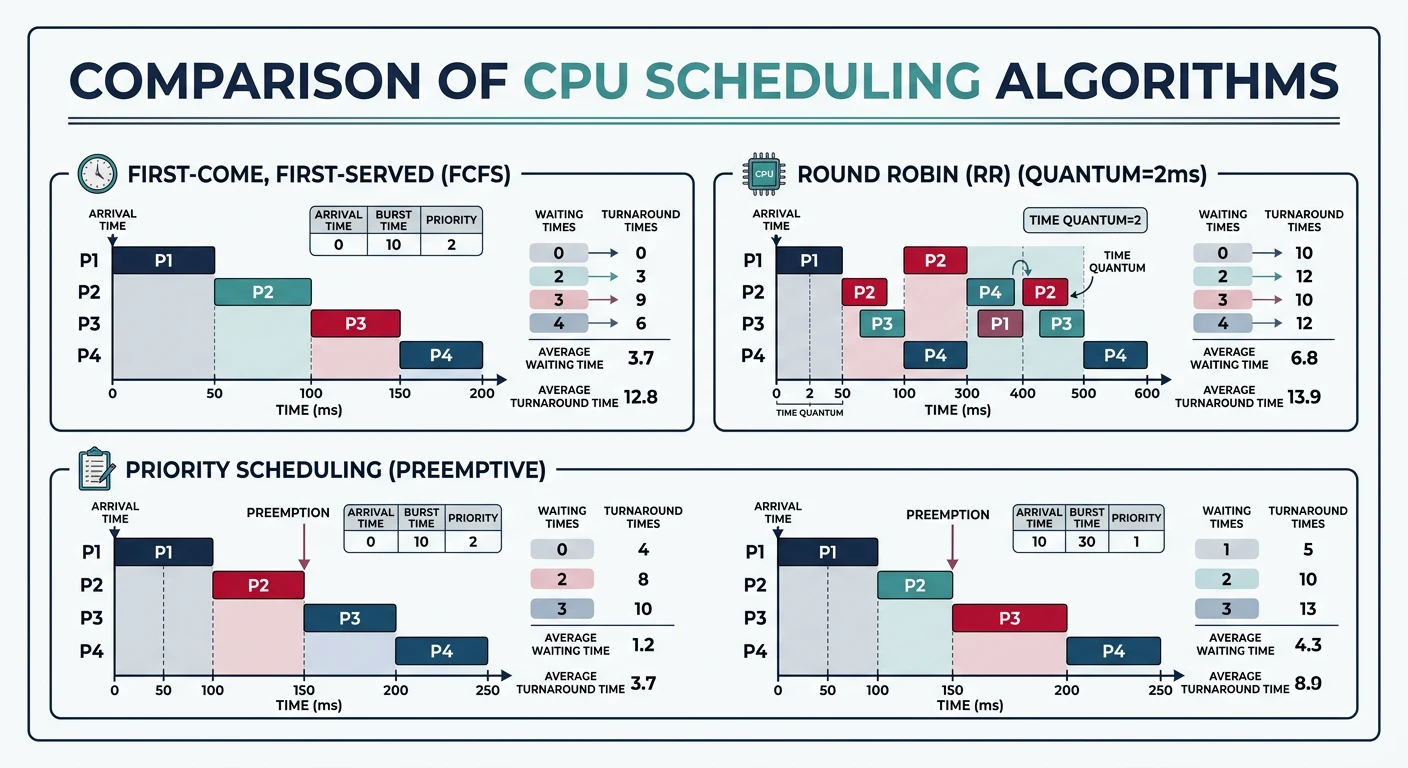

Project 4: CPU Scheduler

Simulate different scheduling algorithms and compare their performance.

// Scheduler Simulator
typedef struct {
    int pid;
    int arrival_time;
    int burst_time;
    int remaining_time;
    int completion_time;
    int waiting_time;
    int turnaround_time;
} process_t;

void round_robin(process_t *processes, int n, int quantum) {
    int time = 0;
    int completed = 0;
    int *queue = malloc(n * sizeof(int));
    int front = 0, rear = 0;

    // Add processes as they arrive
    // Execute for quantum or until burst complete
    // Track waiting time and turnaround time
    // Calculate average metrics

    printf("Avg Waiting Time: %.2f\n", avg_waiting);
    printf("Avg Turnaround Time: %.2f\n", avg_turnaround);
}

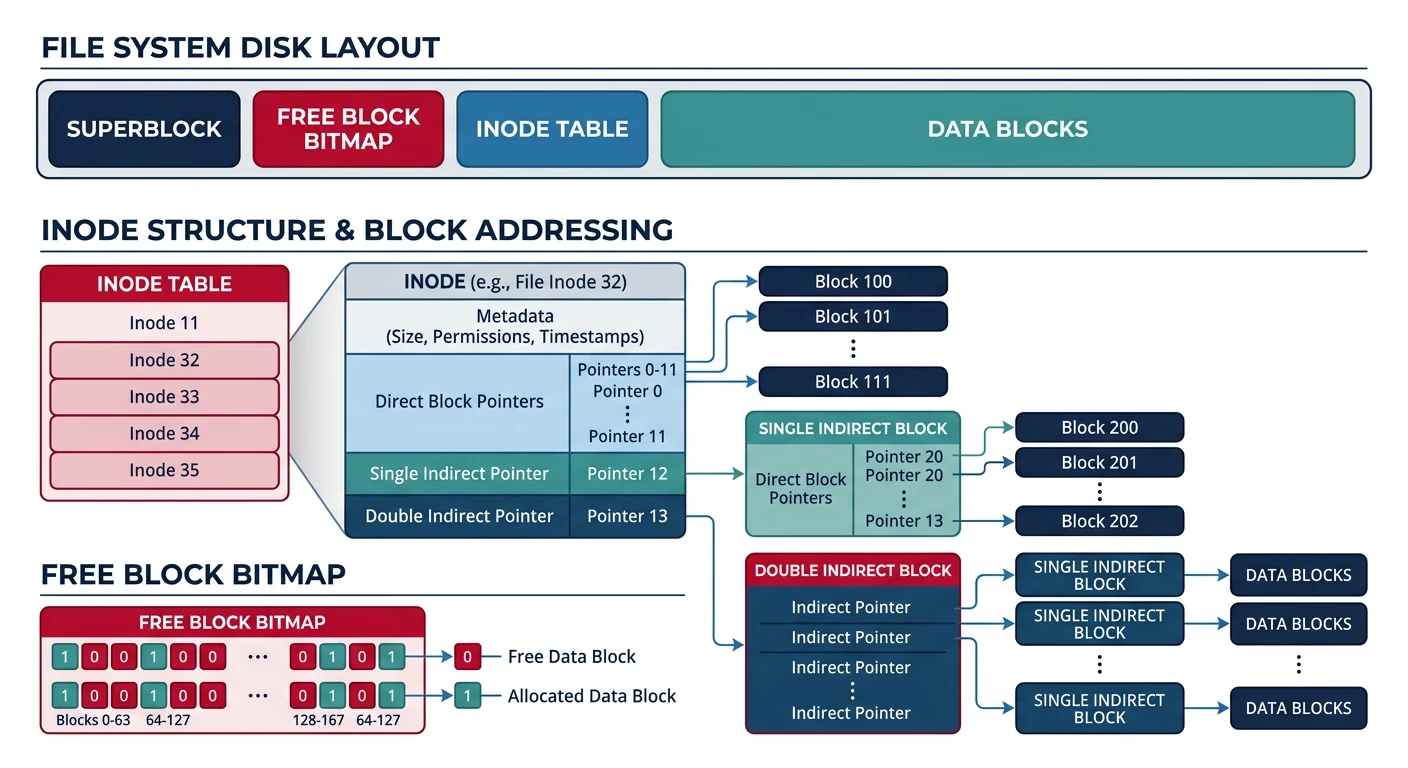

Project 5: Simple File System

Implement a basic file system with inodes, directories, and data blocks.

// Simple File System structures
#define BLOCK_SIZE 4096
#define NUM_BLOCKS 1024
#define NUM_INODES 128

typedef struct {
    int type;        // 0=free, 1=file, 2=directory
    int size;
    int blocks[12];  // Direct blocks
    int indirect;    // Indirect block
    char name[256];
} inode_t;

typedef struct {
    char data[BLOCK_SIZE];
} block_t;

inode_t inodes[NUM_INODES];
block_t disk[NUM_BLOCKS];
int free_block_bitmap[NUM_BLOCKS];

int fs_create(const char *name);
int fs_write(int fd, const void *buf, int size);
int fs_read(int fd, void *buf, int size);
int fs_delete(const char *name);

Project 6: Memory Allocator

Build your own malloc() implementation with different allocation strategies.

// Custom Memory Allocator
typedef struct block_header {
    size_t size;
    int free;
    struct block_header *next;
} block_header_t;

static block_header_t *free_list = NULL;
static void *heap_start = NULL;

void *my_malloc(size_t size) {
    // First-fit: find first block that fits
    block_header_t *curr = free_list;

    while (curr) {
        if (curr->free && curr->size >= size) {
            curr->free = 0;
            // Optionally split block if much larger
            return (void *)(curr + 1);
        }
        curr = curr->next;
    }

    // No suitable block, extend heap with sbrk()
    return extend_heap(size);
}

void my_free(void *ptr) {
    if (!ptr) return;
    block_header_t *header = (block_header_t *)ptr - 1;
    header->free = 1;
    // Coalesce with adjacent free blocks
}

Project Extensions

Challenge Extensions:
══════════════════════════════════════════════════════════════

Shell:
  • Tab completion
  • Signal handling (Ctrl+C, Ctrl+Z)
  • Shell scripting support

Thread Pool:
  • Dynamic resizing
  • Task priorities
  • Future/Promise pattern

Paging:
  • Working set model
  • Multi-level page tables
  • TLB simulation

File System:
  • Journaling
  • Symbolic links
  • FUSE integration (real mountable FS)

Series Conclusion

Congratulations on completing the Computer Architecture & Operating Systems Mastery series! You've journeyed from digital logic gates to kernel internals.
