Part 21: Virtualization & Containers

Virtualization Basics

Virtualization creates abstract versions of physical resources—allowing multiple virtual machines to share one physical machine.

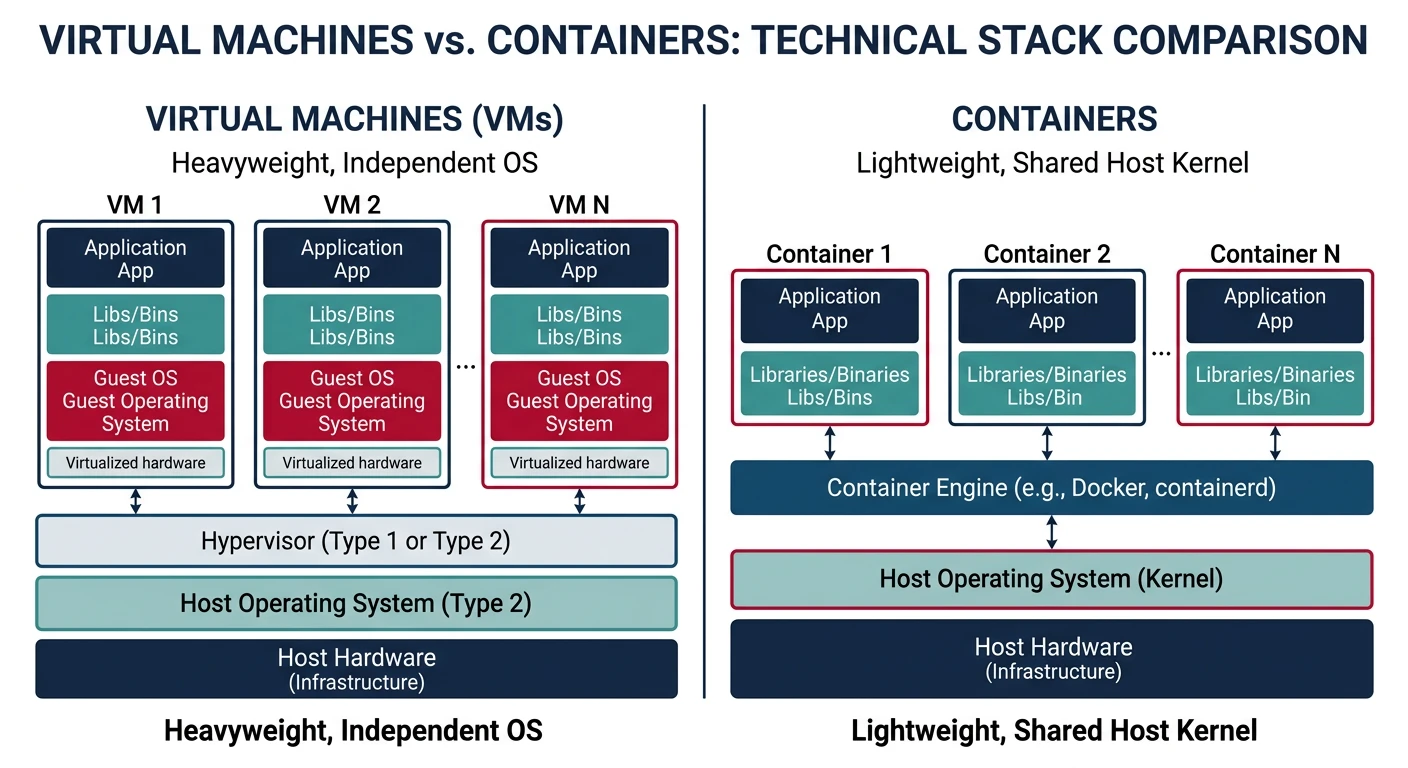

Virtual Machines:                    Containers:
══════════════════════════════════════════════════════════════

┌────────┐ ┌────────┐       ┌────────┐ ┌────────┐
│  App   │ │  App   │       │  App   │ │  App   │
├────────┤ ├────────┤       ├────────┤ ├────────┤
│  Bins  │ │  Bins  │       │  Bins  │ │  Bins  │
├────────┤ ├────────┤       └────────┘ └────────┘
│ Guest │ │ Guest │       ┌───────────────────┐
│  OS   │ │  OS   │       │  Container Engine │
└────────┘ └────────┘       └───────────────────┘
┌───────────────────┐       ┌───────────────────┐
│    Hypervisor     │       │    Host Kernel    │
└───────────────────┘       └───────────────────┘
┌───────────────────┐       ┌───────────────────┐
│     Hardware      │       │     Hardware      │
└───────────────────┘       └───────────────────┘


Comparison:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Aspect         VMs              Containers
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Isolation      Strong (HW)      Process-level
Overhead       ~2-5% CPU        ~0.1% CPU
Boot time      Minutes          Milliseconds
Size           GBs              MBs
Kernel         Each VM          Shared

Hypervisors

A hypervisor (Virtual Machine Monitor) manages VMs, providing them with virtualized hardware.

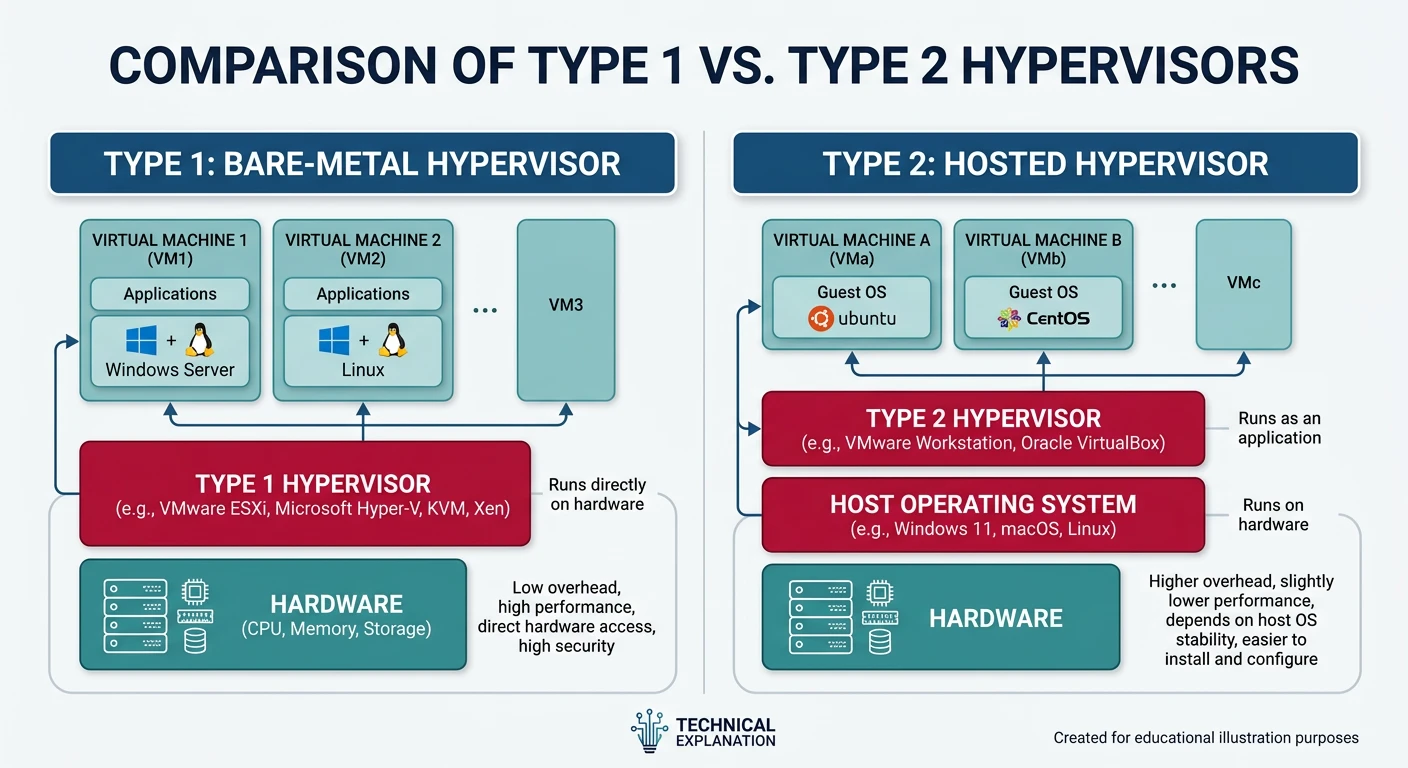

Hypervisor Types:
══════════════════════════════════════════════════════════════

TYPE 1 (Bare Metal):           TYPE 2 (Hosted):
┌───────┐ ┌───────┐           ┌───────┐ ┌───────┐
│  VM1  │ │  VM2  │           │  VM1  │ │  VM2  │
└───────┘ └───────┘           └───────┘ └───────┘
┌─────────────────┐           ┌─────────────────┐
│   Hypervisor    │           │   Hypervisor    │ (app)
└─────────────────┘           ├─────────────────┤
┌─────────────────┐           │    Host OS      │
│    Hardware     │           └─────────────────┘
└─────────────────┘           ┌─────────────────┐
                               │    Hardware     │
                               └─────────────────┘

Examples:
• Type 1: VMware ESXi, Xen, KVM, Hyper-V Server
• Type 2: VirtualBox, VMware Workstation, Parallels

KVM (Kernel-based VM) is hybrid - Linux kernel IS the hypervisor!

Hardware Virtualization

Modern CPUs provide hardware virtualization extensions (Intel VT-x, AMD-V) for efficient VM execution.

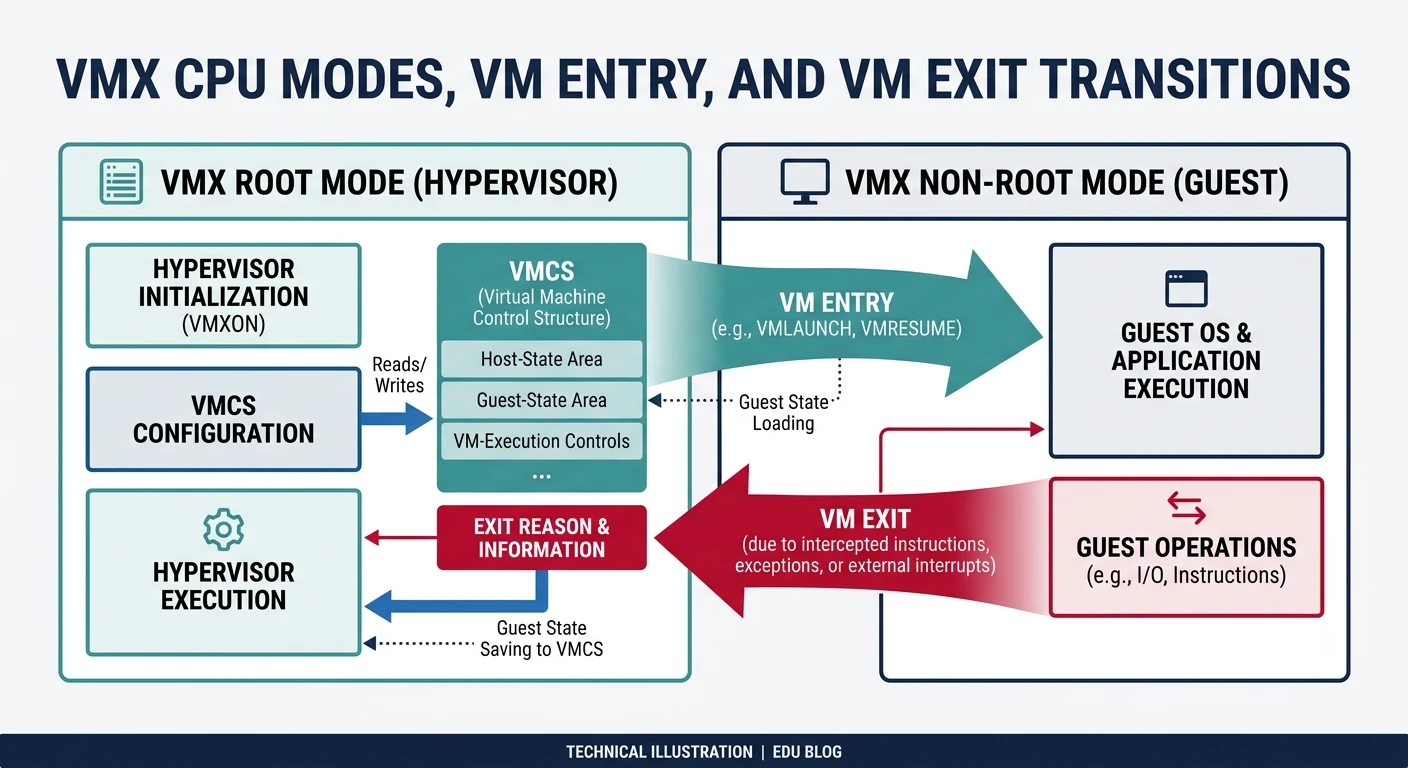

CPU Virtualization Extensions:
══════════════════════════════════════════════════════════════

1. Root Mode (VMX root) - Hypervisor runs here
2. Non-root Mode (VMX non-root) - Guest VMs run here

VM Exit: Guest needs hypervisor help (I/O, privileged op)
         Non-root → Root (expensive: ~1000 cycles)

VM Entry: Return control to guest
         Root → Non-root


VMCS (Virtual Machine Control Structure):
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
• Guest state (registers, CR3, etc.)
• Host state (where to return on VM exit)
• Control fields (what causes VM exits)
• Exit information (why exit occurred)

# Check CPU virtualization support
$ grep -E 'vmx|svm' /proc/cpuinfo
flags: ... vmx ...   # Intel VT-x
# or
flags: ... svm ...   # AMD-V

# Check KVM module loaded
$ lsmod | grep kvm
kvm_intel            348160  0
kvm                  950272  1 kvm_intel

Linux Namespaces

Namespaces isolate system resources, making processes see different views of the system.

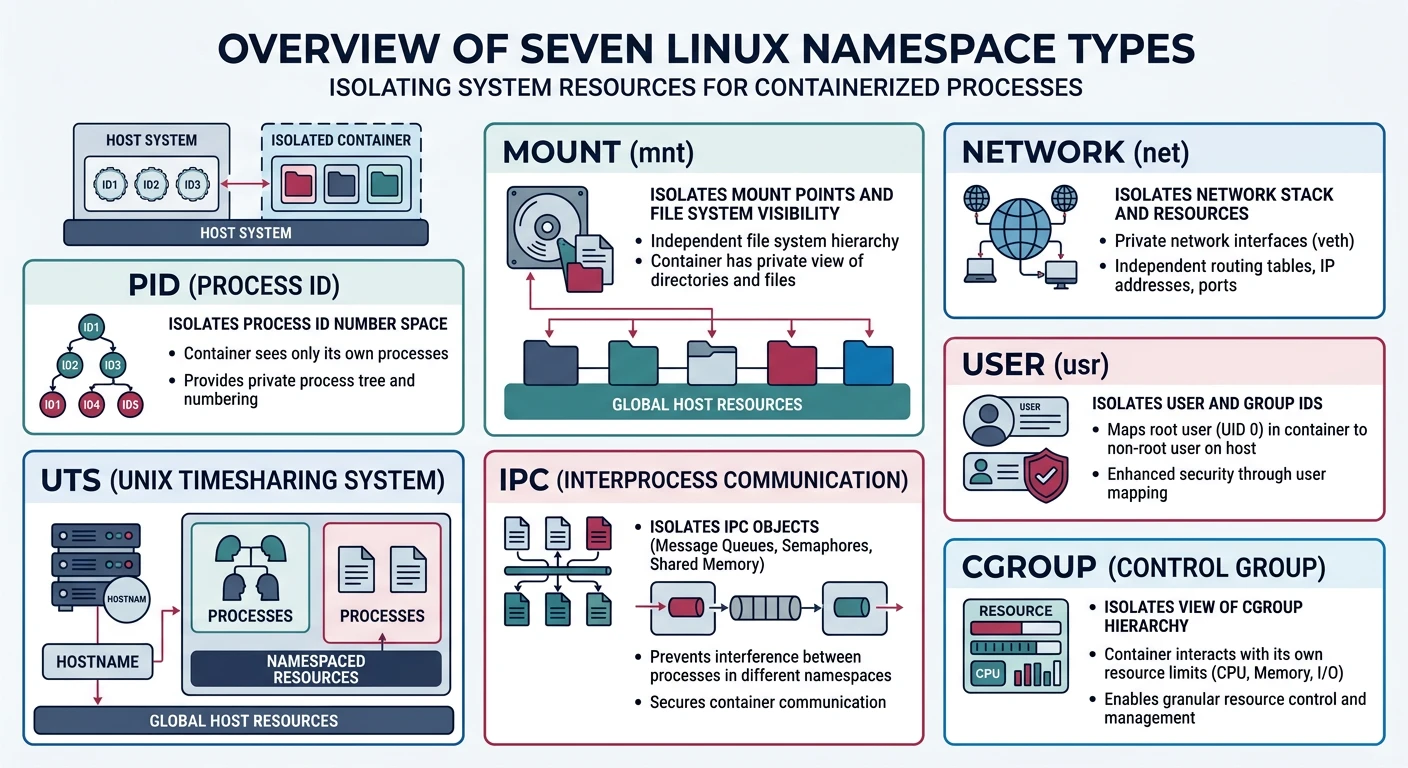

Linux Namespaces (7 types):
══════════════════════════════════════════════════════════════

1. PID Namespace
   • Isolated process ID numbers
   • Container sees PID 1 as init
   • Host sees container processes with different PIDs

2. Mount Namespace
   • Isolated filesystem mounts
   • Container has different root filesystem
   • Can't see host mounts

3. Network Namespace
   • Isolated network stack
   • Own interfaces, routes, iptables
   • Container can have eth0 while host has different eth0

4. UTS Namespace
   • Isolated hostname and domain name
   • Container can have different hostname

5. IPC Namespace
   • Isolated System V IPC, message queues
   • Processes can't see each other's IPC

6. User Namespace
   • Isolated user/group IDs
   • Container root (UID 0) maps to unprivileged host user

7. Cgroup Namespace
   • Isolated view of cgroup hierarchy

# Create new PID namespace
$ sudo unshare --pid --fork --mount-proc bash
$ ps aux
USER  PID  %CPU %MEM  COMMAND
root    1   0.0  0.0  bash     # PID 1 inside namespace!

# View namespaces of a process
$ ls -la /proc/$$/ns/
lrwxrwxrwx 1 user user 0 Jan 15 10:00 mnt -> mnt:[4026531840]
lrwxrwxrwx 1 user user 0 Jan 15 10:00 pid -> pid:[4026531836]
lrwxrwxrwx 1 user user 0 Jan 15 10:00 net -> net:[4026531969]

Control Groups (cgroups)

cgroups limit, account, and isolate resource usage (CPU, memory, I/O).

cgroups Resource Controllers:
══════════════════════════════════════════════════════════════

cpu       - CPU time allocation
memory    - Memory limits (OOM killer priority)
io        - Block I/O throttling
pids      - Max number of processes
cpuset    - CPU and memory node pinning

# Create cgroup and limit memory to 100MB
$ sudo mkdir /sys/fs/cgroup/mygroup
$ echo 100M | sudo tee /sys/fs/cgroup/mygroup/memory.max
$ echo $$ | sudo tee /sys/fs/cgroup/mygroup/cgroup.procs

# Check container resource usage
$ docker stats
CONTAINER   CPU %   MEM USAGE / LIMIT
my_app      0.50%   64MiB / 512MiB

Containers & Docker

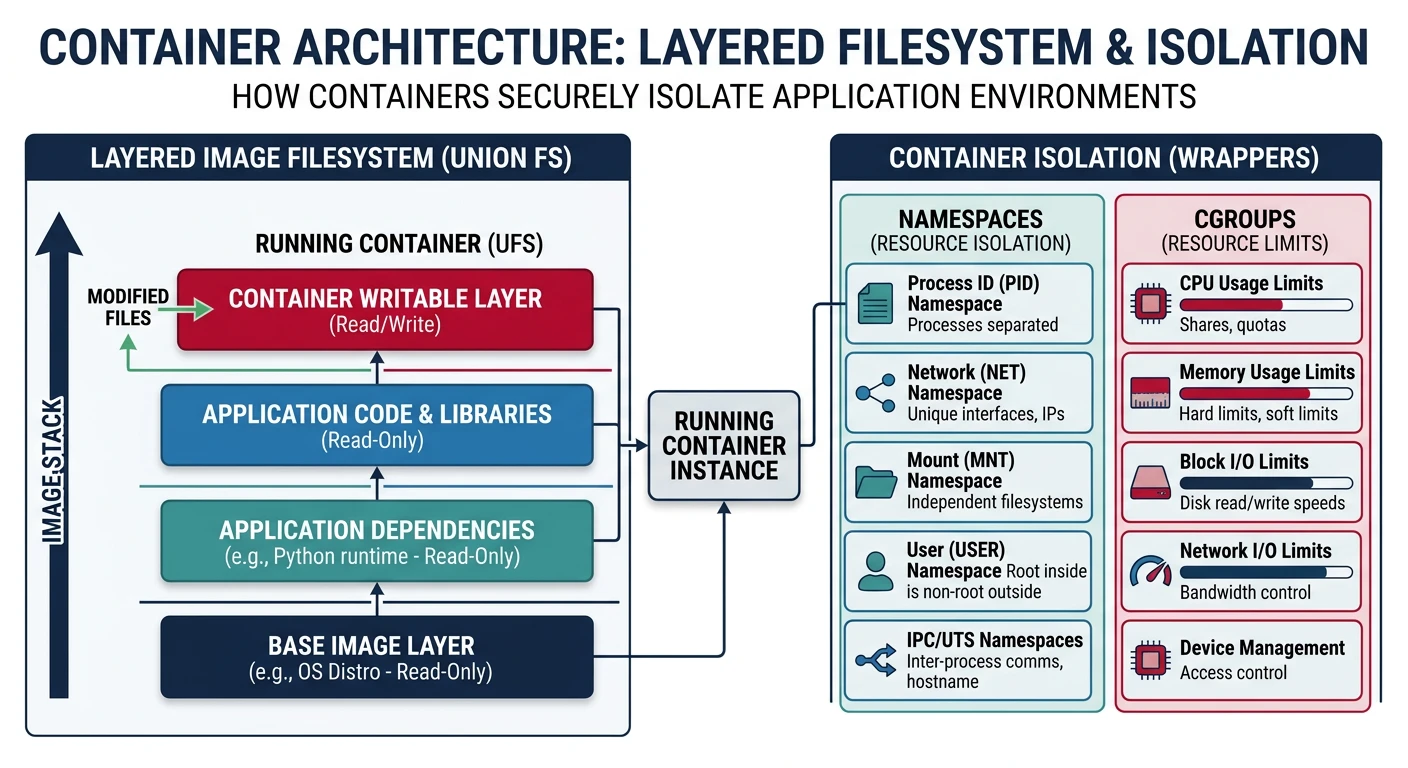

Containers combine namespaces + cgroups + layered filesystem to create isolated environments.

# Docker basics
$ docker run -it ubuntu:22.04 bash   # Run container
$ docker ps                          # List running
$ docker images                      # List images

# Container = Image + Writable layer
# Image layers are read-only, shared between containers

# Dockerfile example
FROM python:3.11-slim
WORKDIR /app
COPY requirements.txt .
RUN pip install -r requirements.txt
COPY . .
CMD ["python", "app.py"]

Container Orchestration

Kubernetes manages containerized applications across clusters of machines.

Kubernetes Architecture:
══════════════════════════════════════════════════════════════

Control Plane:                 Worker Nodes:
┌───────────────────┐          ┌───────────────┐
│ API Server      │          │    kubelet    │
│ Scheduler       │  ─────→  │    kube-proxy │
│ Controller Mgr  │          │    containerd │
│ etcd (state)    │          └───────────────┘
└───────────────────┘               │
                            ┌────┴────┐
                            │   Pods   │
                            └──────────┘

Key Concepts:
• Pod: Smallest deployable unit (1+ containers)
• Service: Stable network endpoint for pods
• Deployment: Manages pod replicas, rolling updates
• ConfigMap/Secret: Configuration management

Conclusion & Next Steps

Virtualization powers modern cloud computing. We've covered:

• VMs vs Containers: Full isolation vs lightweight sharing
• Hypervisors: Type 1 bare-metal vs Type 2 hosted
• Hardware Virtualization: Intel VT-x, AMD-V, VM exits
• Namespaces: Isolating PID, network, mounts, users
• cgroups: Resource limits and accounting
• Containers: Docker and container internals
• Orchestration: Kubernetes architecture
