Part 16: Virtual Memory & Paging

Virtual Addressing

Virtual memory gives each process its own private address space, mapped to physical memory by the MMU (Memory Management Unit).

Why Virtual Memory?
══════════════════════════════════════════════════════════════

1. ISOLATION
   • Each process has private address space
   • Process A cannot access Process B's memory
   • Buggy program can't crash the whole system

2. ABSTRACTION
   • Programs don't need to know physical addresses
   • Same virtual addresses work on any machine
   • Simplifies programming model

3. EFFICIENT MEMORY USE
   • Only active pages need physical RAM
   • Inactive pages can live on disk (swap)
   • Sparse address spaces don't waste RAM

4. SHARING
   • Multiple processes can share same physical pages
   • Shared libraries loaded once, mapped many times
   • fork() uses copy-on-write (COW)

5. FLEXIBILITY
   • Memory can be relocated without program changes
   • OS can defragment physical memory transparently

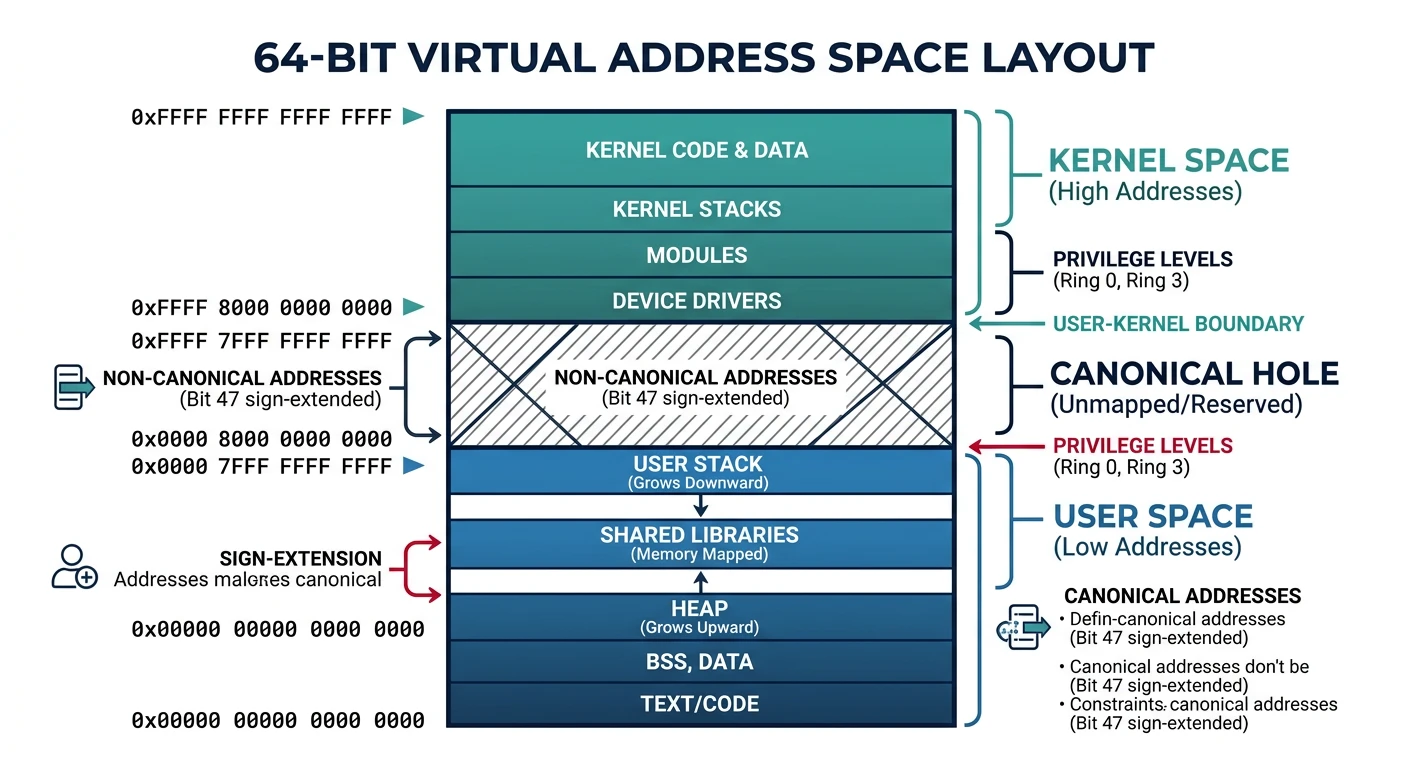

64-bit Virtual Address Space:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
0xFFFFFFFFFFFFFFFF ┌─────────────────────┐
                   │    Kernel Space     │ (upper half)
                   │                     │
0xFFFF800000000000 ├─────────────────────┤
                   │    (non-canonical)  │ Hole - unused
0x00007FFFFFFFFFFF ├─────────────────────┤
                   │     User Space      │ (lower half)
                   │  256 TB available!  │
0x0000000000000000 └─────────────────────┘

Page Tables

The page table maps virtual pages to physical frames. Modern systems use multi-level page tables to save memory.

Page Table Entry (PTE):
══════════════════════════════════════════════════════════════

┌───────────────────────────────────────────────────────────┐
│  Frame Number (40 bits)  │ Flags (12 bits)               │
└───────────────────────────────────────────────────────────┘

Common Flag Bits:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Bit   Name      Meaning
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
 0    Present   Page is in physical memory (not swapped)
 1    R/W       0=read-only, 1=read-write
 2    U/S       0=supervisor only, 1=user accessible
 3    PWT       Page-level write-through
 4    PCD       Page-level cache disable
 5    Accessed  Page was read (set by hardware)
 6    Dirty     Page was written (set by hardware)
 7    PAT       Page Attribute Table
 8    Global    Don't flush from TLB on context switch
63    NX        No-execute (prevent code execution)

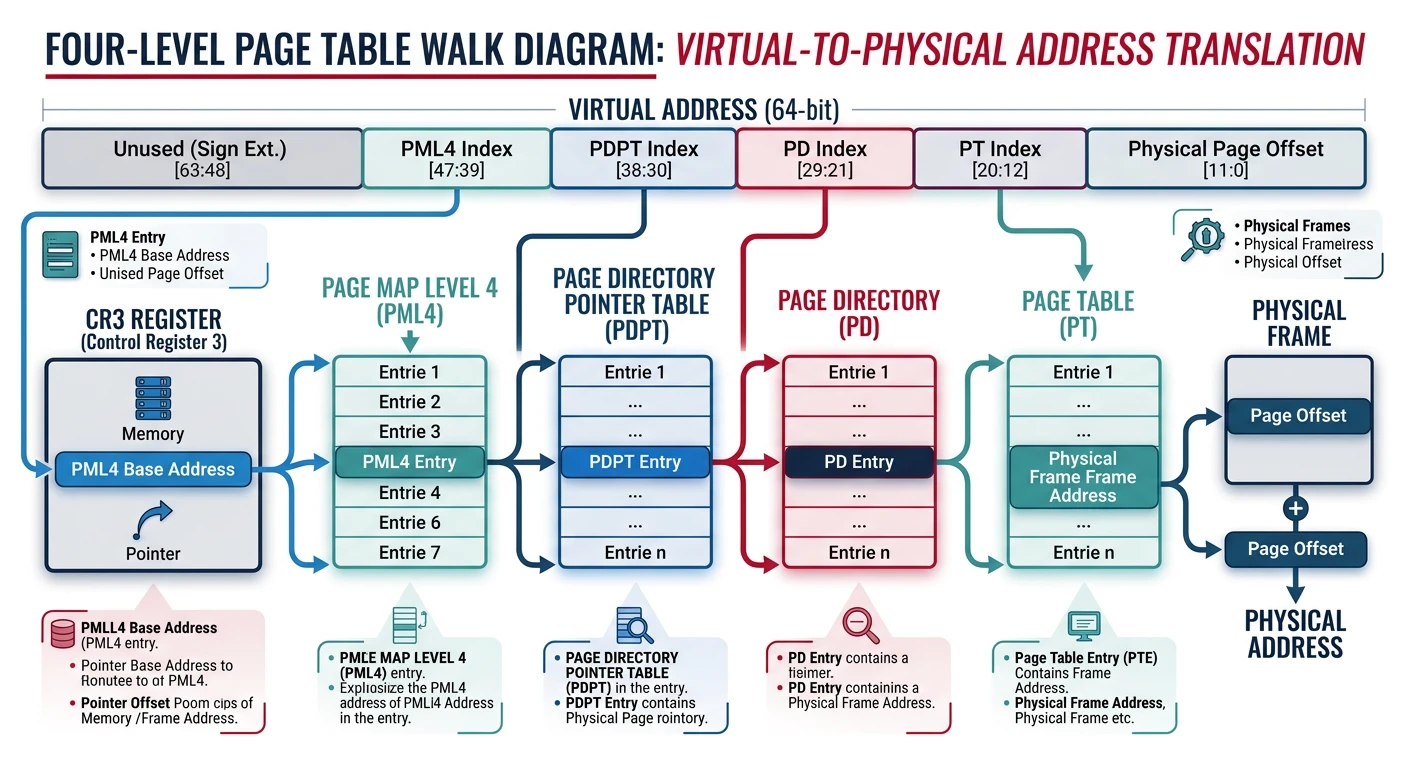

4-Level Page Table (x86-64):
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Virtual Address (48 bits used):
┌────────┬────────┬────────┬────────┬──────────┐
│ PML4   │  PDPT  │   PD   │   PT   │  Offset  │
│ 9 bits │ 9 bits │ 9 bits │ 9 bits │ 12 bits  │
└────────┴────────┴────────┴────────┴──────────┘

       CR3 (Page Table Base)
         │
         ▼
    ┌─────────┐
    │  PML4   │ ─── 512 entries
    └────┬────┘
         │ [PML4 index]
         ▼
    ┌─────────┐
    │  PDPT   │ ─── 512 entries
    └────┬────┘
         │ [PDPT index]
         ▼
    ┌─────────┐
    │   PD    │ ─── 512 entries
    └────┬────┘
         │ [PD index]
         ▼
    ┌─────────┐
    │   PT    │ ─── 512 entries
    └────┬────┘
         │ [PT index]
         ▼
    Physical Frame + Offset = Physical Address

Translation Lookaside Buffer (TLB)

The TLB is a cache for page table entries. Without it, every memory access would require 4 extra memory accesses!

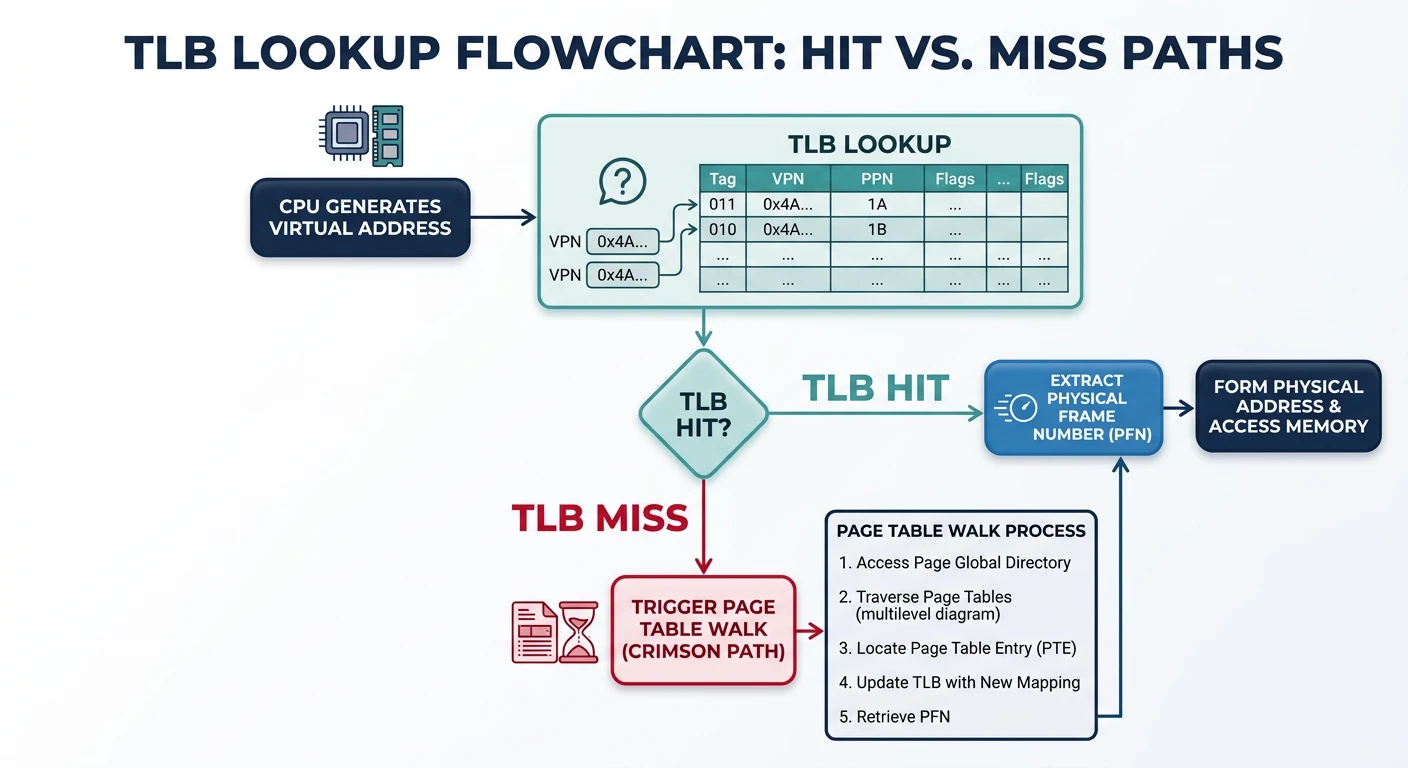

TLB Lookup Process:
══════════════════════════════════════════════════════════════

                        ┌─────────────┐
Virtual Address ───────→│    TLB      │
                        │   Cache     │
                        └──────┬──────┘
                               │
              ┌────────────────┼────────────────┐
              │                │                │
           TLB HIT         TLB MISS         TLB MISS
         (~1 cycle)      (hardware)        (software)
              │                │                │
              ▼                ▼                ▼
        Get frame#       Page Table        OS Handler
        immediately       Walk            (older CPUs)
                       (15-30 cycles)
                               │
                               ▼
                        Update TLB
                               │
                               ▼
                        Physical Address


Typical TLB Specifications:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Component        Entries    Miss Penalty
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
L1 iTLB          64-128     ~7 cycles (L2 TLB hit)
L1 dTLB          64-128     ~7 cycles
L2 TLB (unified) 512-2048   ~30 cycles (page walk)

TLB hit rate typically >99% due to locality!

# View TLB statistics on Linux
$ perf stat -e dTLB-loads,dTLB-load-misses ./my_program
     1,234,567,890      dTLB-loads
           123,456      dTLB-load-misses  # 0.01% miss rate

# Flush TLB (happens on context switch, CR3 reload)
# Each process has different page tables → TLB must be flushed
# PCID (Process Context ID) allows keeping multiple process entries

Demand Paging

Demand paging loads pages into memory only when accessed. No need to load entire program at startup!

Demand Paging Concept:
══════════════════════════════════════════════════════════════

Traditional (Eager) Loading:
┌─────────────────────────────────────────────────────────────┐
│ Load ALL pages of program into RAM before starting          │
│ • Slow startup                                              │
│ • Wastes memory on unused code paths                        │
└─────────────────────────────────────────────────────────────┘

Demand Paging (Lazy Loading):
┌─────────────────────────────────────────────────────────────┐
│ Load pages ONLY when accessed (page fault triggers load)    │
│ • Fast startup (load only what's needed)                    │
│ • Memory efficient (unused pages never loaded)              │
└─────────────────────────────────────────────────────────────┘


Page States:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

1. Not in memory, not on disk
   • Uninitialized (zero page on first access)

2. Not in memory, on disk
   • Swapped out, or file-backed but not loaded
   • Page fault → load from disk

3. In memory, clean
   • Loaded and unmodified
   • Can be discarded (file-backed) or swapped

4. In memory, dirty
   • Modified since load
   • Must write to disk before eviction

Page Faults

A page fault occurs when accessing a page not in physical memory. The OS handles it and resumes execution.

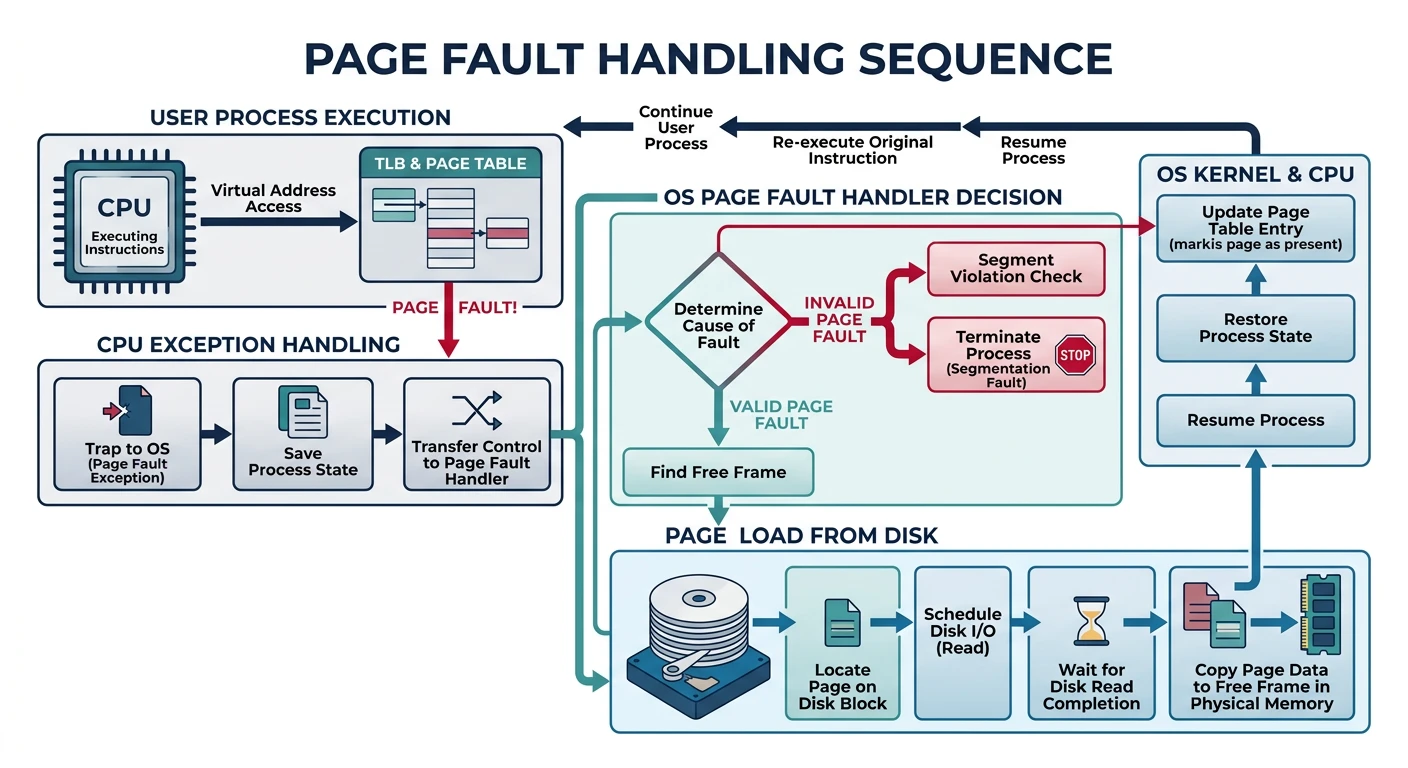

Page Fault Sequence:
══════════════════════════════════════════════════════════════

1. CPU executes instruction accessing virtual address
2. MMU checks TLB - MISS
3. MMU walks page table - finds Present bit = 0
4. MMU raises PAGE FAULT exception
5. CPU traps to OS page fault handler

6. OS determines fault type:
   ┌─────────────────────────────────────────────────────────┐
   │ VALID PAGE FAULT (legitimate, recoverable):            │
   │ • Page swapped out → load from swap                    │
   │ • File-backed page → load from file                    │
   │ • Zero page (BSS) → allocate zeroed frame              │
   │ • Copy-on-write → copy page, update mapping            │
   ├─────────────────────────────────────────────────────────┤
   │ INVALID PAGE FAULT (error, unrecoverable):             │
   │ • Address not in process's address space               │
   │ • Permission violation (write to read-only)            │
   │ → Send SIGSEGV (segmentation fault) to process         │
   └─────────────────────────────────────────────────────────┘

7. For valid fault:
   a. Find free frame (may need to evict another page)
   b. Load page into frame (I/O - SLOW!)
   c. Update page table entry (Present=1, frame number)
   d. Resume faulting instruction


Page Fault Cost:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
SSD page fault:  ~50-100 microseconds
HDD page fault:  ~5-10 milliseconds
Memory access:   ~100 nanoseconds

Page fault is 1000-100,000× slower than memory access!

Page Replacement Algorithms

When RAM is full, which page do we evict? The page replacement algorithm decides.

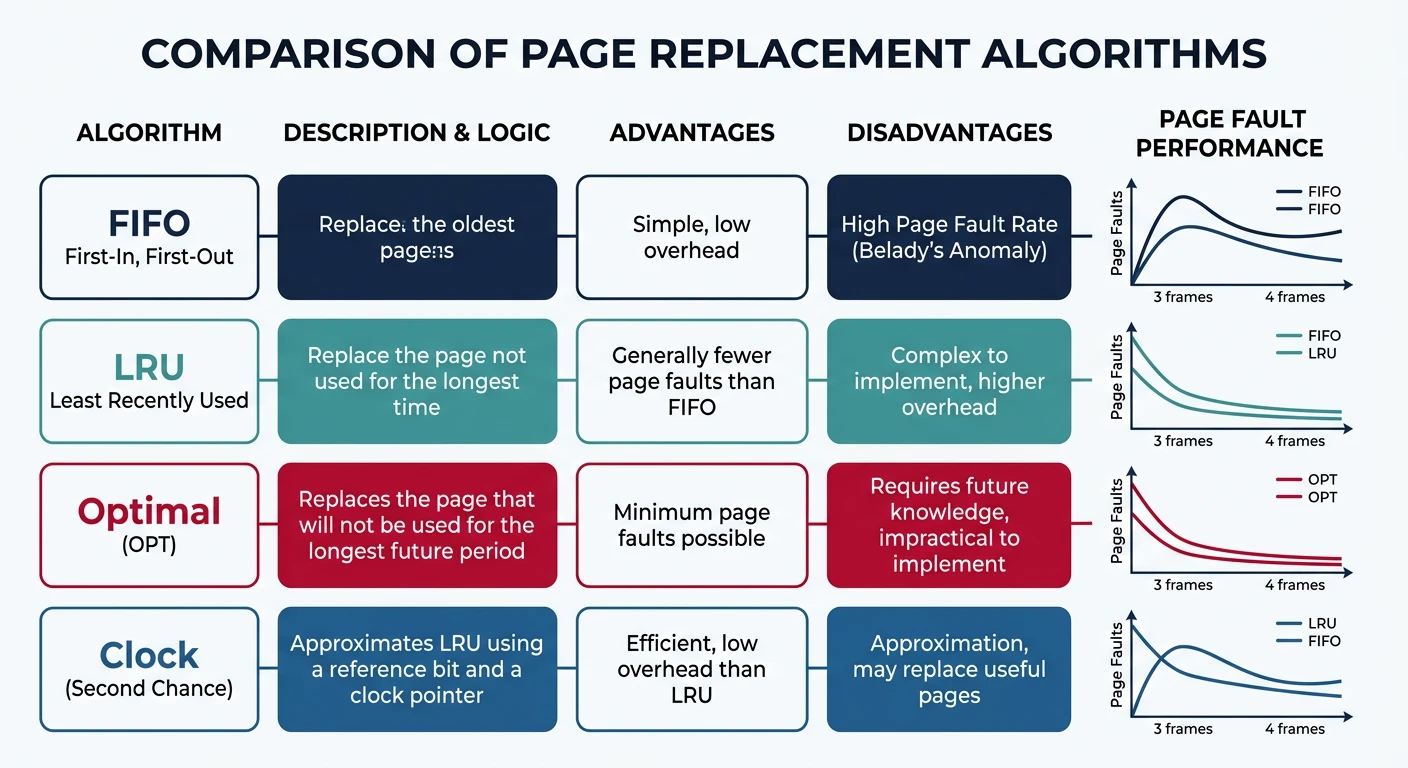

Page Replacement Algorithms:
══════════════════════════════════════════════════════════════

1. OPTIMAL (OPT) - Theoretical best
   • Evict page that won't be used for longest time
   • Requires future knowledge - impossible in practice!
   • Used as benchmark for other algorithms

2. FIFO (First-In, First-Out)
   • Evict oldest page
   • Simple queue implementation
   • Belady's Anomaly: More frames can cause MORE faults!

3. LRU (Least Recently Used)
   • Evict page unused for longest time
   • Good approximation of OPT (uses past as future predictor)
   • Expensive: must track access order

4. CLOCK (Second Chance)
   • Approximates LRU with less overhead
   • Pages arranged in circular list with reference bit
   • On eviction: if ref=1, clear and skip; if ref=0, evict


CLOCK Algorithm Visualization:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

        ┌──── Clock hand (victim pointer)
        ▼
    ┌───────┐
    │ P1: 1 │ ← Reference bit = 1 (recently used)
    └───────┘
   /         \
┌───────┐   ┌───────┐
│ P4: 0 │   │ P2: 1 │
└───────┘   └───────┘
   \         /
    ┌───────┐
    │ P3: 0 │ ← ref=0, EVICT this page!
    └───────┘

Hardware sets reference bit on access.
OS clears bits during clock sweep.

# View page replacement statistics on Linux
$ vmstat 1
procs -----------memory---------- ---swap-- -----io----
 r  b   swpd   free   buff  cache   si   so    bi    bo
 1  0  12345  98765  54321 234567    0    5   100    50
                                     ↑    ↑
                                  swap  swap
                                  in    out

# si (swap in) = pages loaded from swap
# so (swap out) = pages written to swap (evicted)

Thrashing

Thrashing occurs when the system spends more time paging than executing. Performance collapses.

Thrashing:
══════════════════════════════════════════════════════════════

CPU Utilization vs Degree of Multiprogramming:

     CPU Utilization
     │
100% │           ┌───────┐
     │          /         \
     │         /           \
     │        /             \
     │       /               \  ← Thrashing!
     │      /                 \
     │     /                   \
  0% │────/─────────────────────\────────
     └───────────────────────────────────→
           # of Processes
              ↑
         Optimal point


What Causes Thrashing:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
1. Too many processes competing for limited RAM
2. Each process's working set > available memory
3. Pages constantly swapped in and out
4. I/O wait dominates CPU time

Working Set: Pages a process actively uses in a time window.
If Σ(working sets) > physical RAM → Thrashing!


Solutions:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
1. Add more RAM (hardware solution)
2. Kill memory-hungry processes
3. Reduce degree of multiprogramming (swap out entire processes)
4. Use working set model for scheduling
5. Page fault frequency (PFF) control:
   - High fault rate → give more frames
   - Low fault rate → take away frames

Memory-Mapped Files

Memory-mapped files map file contents directly into virtual address space. Access file like memory!

/* Memory-Mapped File Example */
#include <sys/mman.h>
#include <fcntl.h>
#include <stdio.h>
#include <unistd.h>

int main() {
    int fd = open("data.bin", O_RDWR);

    /* Map file into memory */
    char *data = mmap(
        NULL,           /* Let OS choose address */
        4096,           /* Map 4KB */
        PROT_READ | PROT_WRITE,  /* Read/write access */
        MAP_SHARED,     /* Changes written back to file */
        fd,             /* File descriptor */
        0               /* Offset in file */
    );

    /* Access file like memory! */
    printf("First byte: %c\n", data[0]);
    data[0] = 'X';  /* Modify - will be written to file */

    /* Unmap when done */
    munmap(data, 4096);
    close(fd);
    return 0;
}

/*
Benefits:
- No explicit read()/write() calls
- Kernel handles caching efficiently
- Multiple processes can share mapping
- Perfect for large files (only load needed pages)

Use cases:
- Database engines
- Shared libraries (.so files)
- Inter-process communication
*/

Conclusion & Next Steps

Virtual memory is a cornerstone of modern operating systems. We've covered:

• Virtual Addressing: Process isolation and flexibility
• Page Tables: Multi-level translation structures
• TLB: Critical cache for address translation
• Demand Paging: Load pages only when needed
• Page Faults: Exception handling and recovery
• Page Replacement: FIFO, LRU, Clock algorithms
• Thrashing: When paging overwhelms the system
• Memory-Mapped Files: File I/O through memory
