Part 20: OS Security & Protection

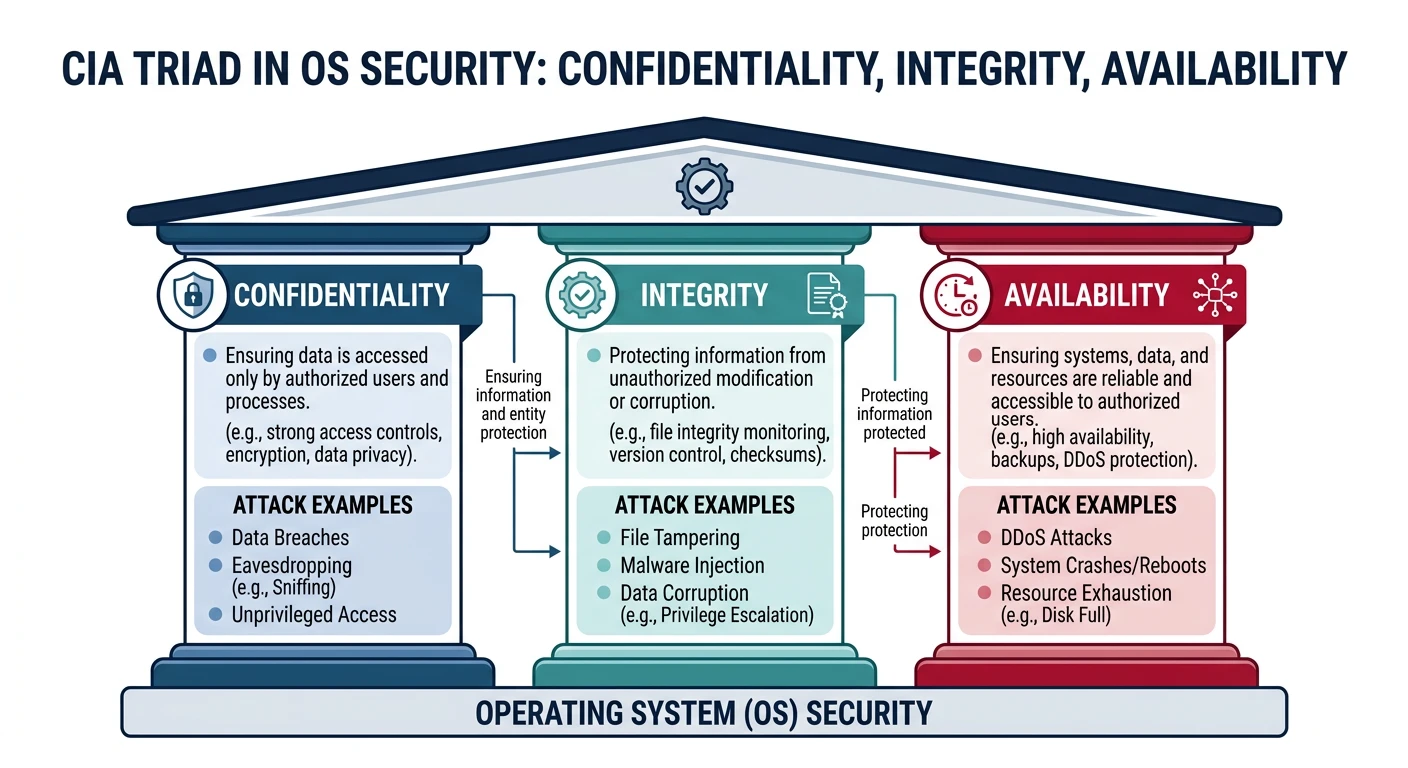

Security Goals

OS security aims to enforce the CIA triad plus additional properties.

Core Security Goals:
══════════════════════════════════════════════════════════════

1. CONFIDENTIALITY
   • Prevent unauthorized information disclosure
   • Process A can't read Process B's memory
   • Users can't read other users' files

2. INTEGRITY
   • Prevent unauthorized modification
   • Only owner can modify their files
   • Only kernel can modify page tables

3. AVAILABILITY
   • System remains usable
   • Prevent denial-of-service attacks
   • Resource limits and quotas

4. AUTHENTICITY
   • Verify identity of users/programs
   • Login authentication
   • Code signing verification


Attack Types:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
• Privilege escalation (user → root)
• Information leakage (read secrets)
• Code injection (run attacker code)
• Denial of service (crash/slow system)

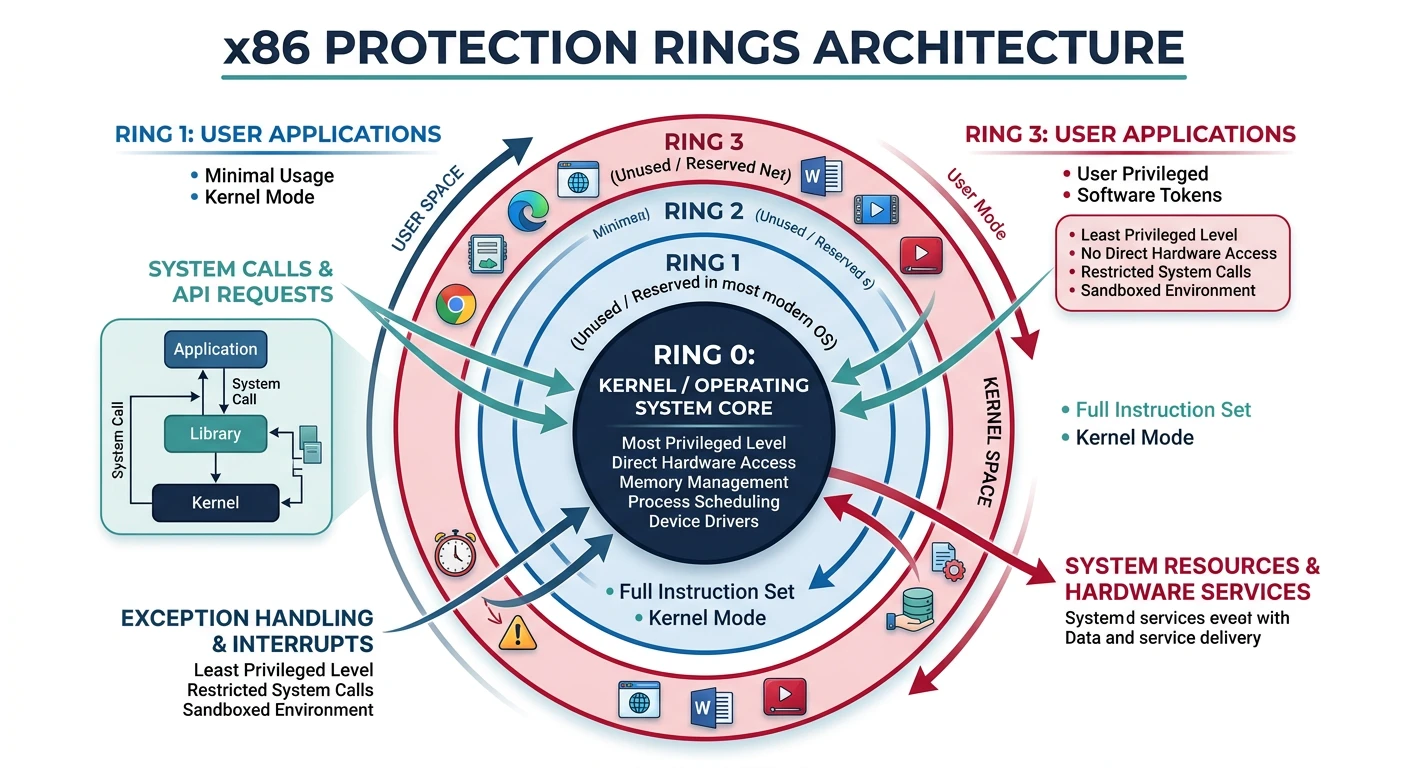

Privilege Levels & Rings

x86 processors provide protection rings enforced by hardware.

x86 Protection Rings:
══════════════════════════════════════════════════════════════

              ┌───────────────────────┐
              │    Ring 3 (User)    │  Least privileged
              │   Applications      │
              │                     │
              │  ┌───────────────┐  │
              │  │   Ring 2     │  │  (unused)
              │  │ ┌─────────┐ │  │
              │  │ │ Ring 1  │ │  │  (unused)
              │  │ │┌───────┐│ │  │
              │  │ ││Ring 0 ││ │  │  Most privileged
              │  │ ││Kernel ││ │  │  Full HW access
              │  │ │└───────┘│ │  │
              │  │ └─────────┘ │  │
              │  └───────────────┘  │
              └───────────────────────┘

Modern usage: Only Ring 0 (kernel) and Ring 3 (user)

Privilege enforcement:
• CPL (Current Privilege Level) in CS register
• Privileged instructions (IN, OUT, HLT) only in Ring 0
• Memory access checked against page permissions
• System call (int 0x80, syscall) transitions Ring 3→0

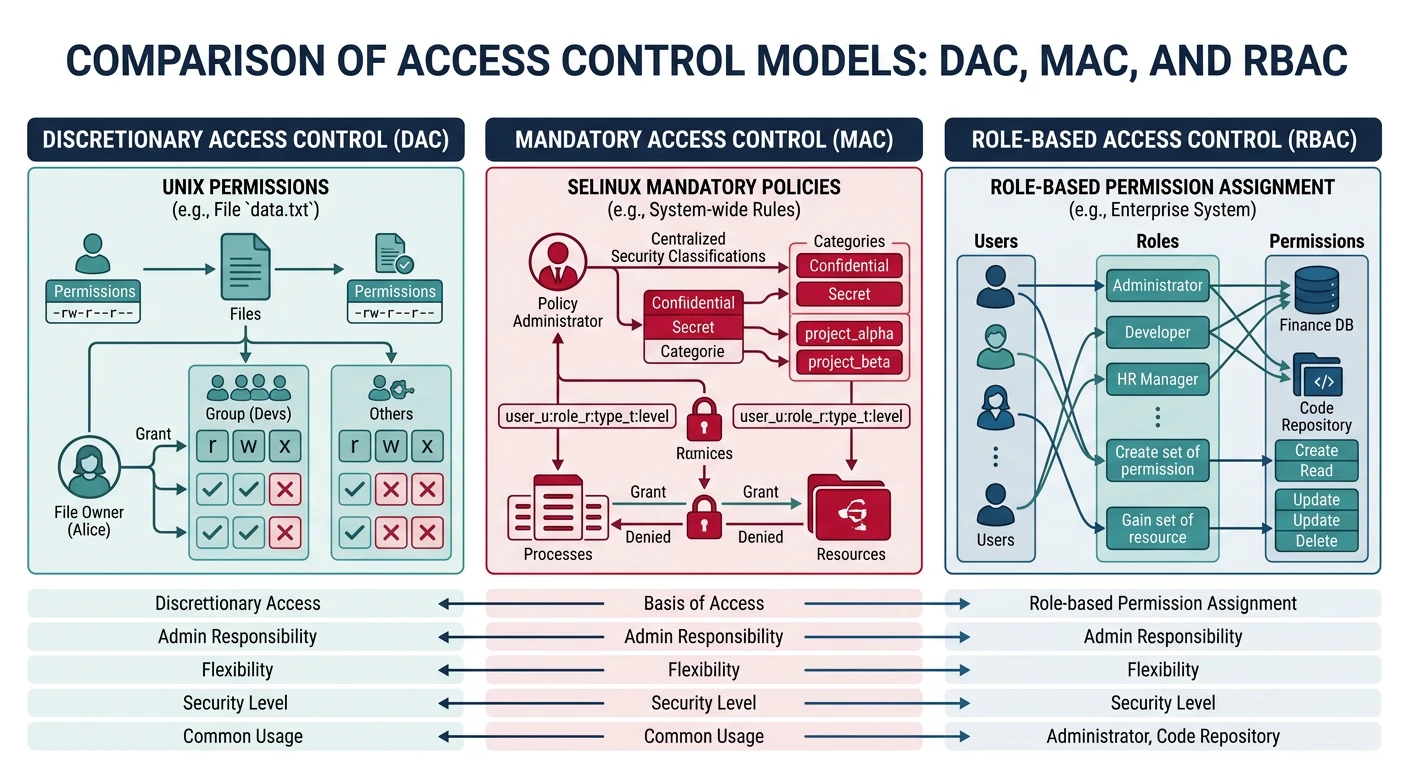

Access Control

Access control determines what subjects (users, processes) can do to objects (files, memory).

Access Control Models:
══════════════════════════════════════════════════════════════

1. DAC (Discretionary Access Control) - Unix/Linux
   Owner decides permissions

   $ ls -l secret.txt
   -rw-r----- 1 alice staff 1234 Jan 15 secret.txt
    │││││││││
    ││││││└── other: no permissions
    │││└───── group: read only
    └───────── owner: read+write

2. MAC (Mandatory Access Control) - SELinux, AppArmor
   System-wide policy, users can't override

   # SELinux context
   $ ls -Z /etc/passwd
   system_u:object_r:passwd_file_t:s0 /etc/passwd

3. RBAC (Role-Based Access Control)
   Permissions assigned to roles, users get roles

   admin_role: read, write, delete all files
   user_role: read own files, write own files
   guest_role: read public files

# Unix permission commands
$ chmod 750 file.txt   # rwxr-x--- (owner=7, group=5, other=0)
$ chown alice:staff file.txt

# Check effective permissions
$ test -r file.txt && echo "readable"

# SELinux status
$ getenforce
Enforcing

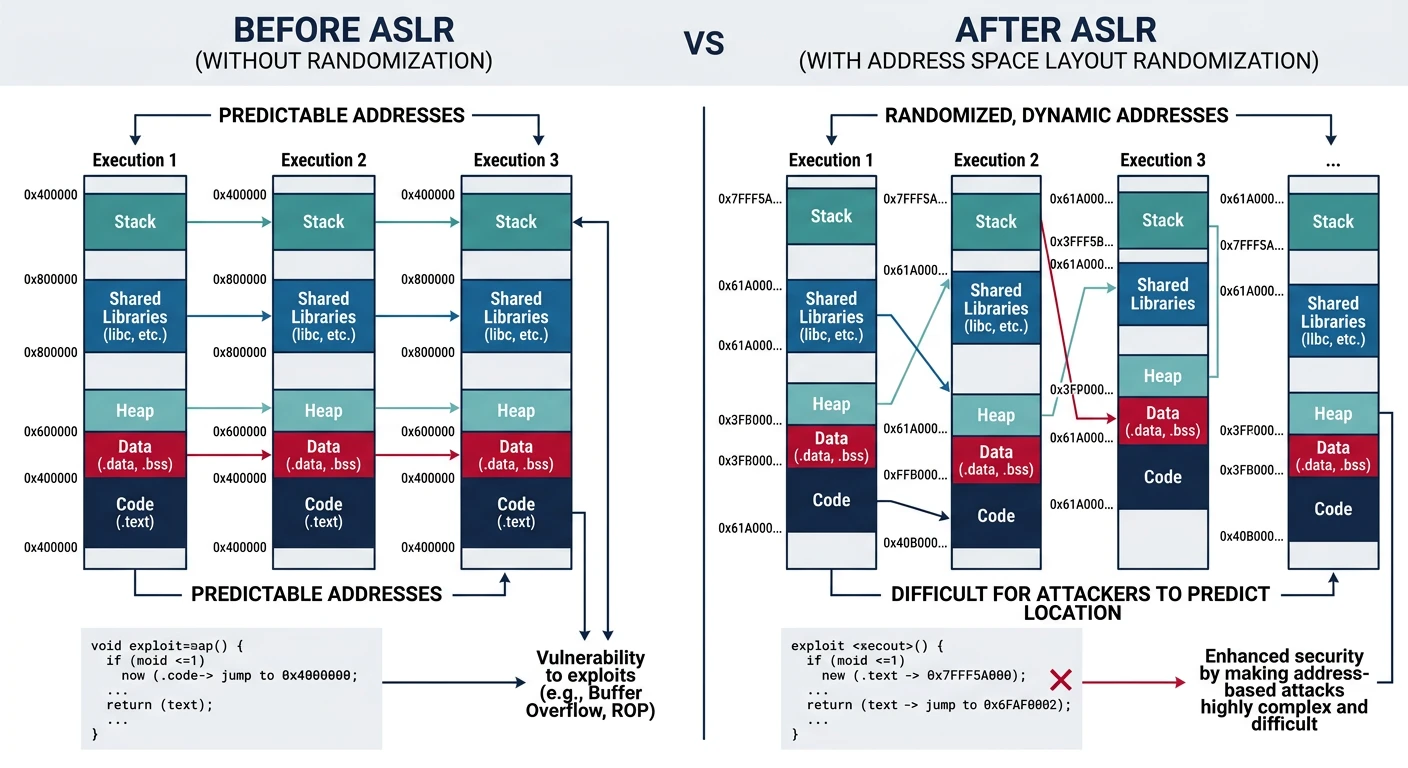

ASLR & DEP

ASLR and DEP are crucial exploit mitigations in modern operating systems.

Without ASLR (predictable):
══════════════════════════════════════════════════════════════
0x08048000  Code (always here)
0x08060000  Data (always here)
0x40000000  libc.so (always here)
0xBFFFFFFF  Stack (always here)

Attacker knows where everything is!

With ASLR (randomized each run):
══════════════════════════════════════════════════════════════
Run 1:            Run 2:
0x55A3B000 Code   0x55F12000 Code
0x55A5D000 Data   0x55F34000 Data
0x7F4A2000 libc   0x7F8C1000 libc
0x7FFCA000 Stack  0x7FF91000 Stack

Attacker can't predict addresses!

# Check ASLR status on Linux
$ cat /proc/sys/kernel/randomize_va_space
2   # 0=off, 1=stack/libs, 2=full (heap too)

# See randomization in action
$ cat /proc/self/maps | head -3
55a3b7d01000-55a3b7d03000 r--p ... /bin/cat
# Run again - different addresses!

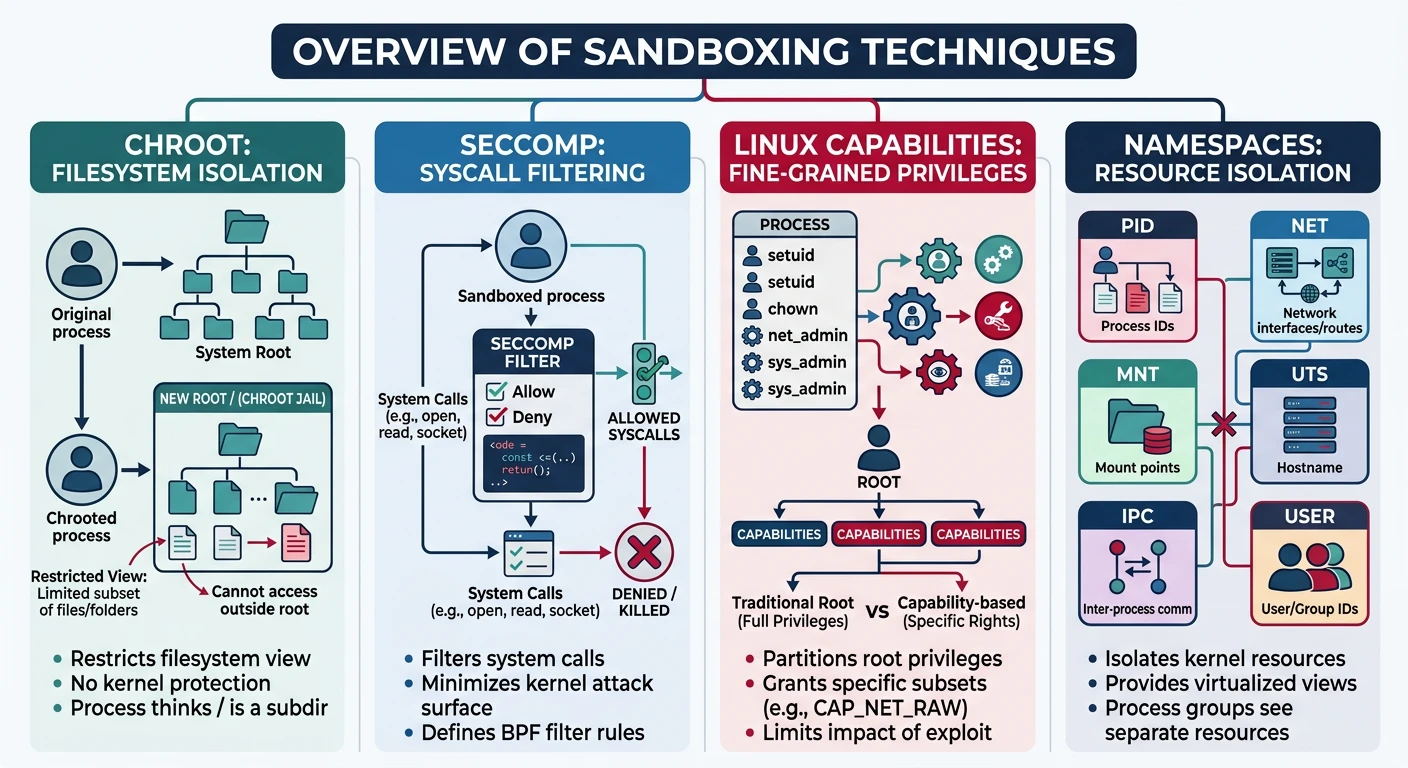

Sandboxing

Sandboxing confines untrusted code to limit damage if compromised.

Sandboxing Techniques:
══════════════════════════════════════════════════════════════

1. CHROOT (Change Root)
   Process sees different root directory
   /jail/bin/bash thinks /jail is /

2. SECCOMP (Secure Computing)
   Restrict system calls process can make
   Web renderer: only read(), write(), mmap()
   Can't open files, network, spawn processes

3. CAPABILITIES
   Split root powers into fine-grained caps
   CAP_NET_BIND_SERVICE: bind port <1024
   CAP_SYS_ADMIN: mount filesystems
   Don't give full root - give minimal caps

4. NAMESPACES (Linux)
   Isolate system resources
   PID namespace: process sees only its tree
   Network namespace: isolated network stack
   Mount namespace: different filesystem view

# Seccomp example - allow only exit
$ cat seccomp-test.c
prctl(PR_SET_SECCOMP, SECCOMP_MODE_STRICT);
// Now only read(), write(), exit(), sigreturn() allowed!

# View process capabilities
$ getpcaps $$
1234: = cap_chown,cap_dac_override,...

# Drop capabilities
$ capsh --drop=cap_net_raw -- -c "ping localhost"
ping: permission denied

Secure Boot

Secure Boot ensures only trusted code runs from power-on, creating a chain of trust.

Boot Chain of Trust:
══════════════════════════════════════════════════════════════

Power On
    │
    ▼
┌───────────────────┐
│ UEFI Firmware    │ ← Root of trust (in ROM)
│ (Secure Boot)    │   Contains trusted keys
└───────┬───────────┘
        │ Verify signature
        ▼
┌───────────────────┐
│ Bootloader       │ ← Signed by Microsoft/vendor
│ (GRUB, Windows)  │
└───────┬───────────┘
        │ Verify signature
        ▼
┌───────────────────┐
│ Kernel           │ ← Signed by OS vendor
└───────┬───────────┘
        │ Verify modules
        ▼
┌───────────────────┐
│ Kernel Modules   │ ← Signed drivers only
└───────────────────┘

If any signature fails → Boot halts!

Common Vulnerabilities

Understanding common vulnerabilities helps build secure systems.

Classic Attack Types:
══════════════════════════════════════════════════════════════

1. BUFFER OVERFLOW
   char buf[64];
   strcpy(buf, user_input);  // No bounds check!

   Mitigation: Stack canaries, ASLR, bounds checking

2. USE-AFTER-FREE
   free(ptr);
   *ptr = malicious;  // Dangling pointer!

   Mitigation: Memory-safe languages, sanitizers

3. INTEGER OVERFLOW
   size_t len = user_len + header_size;  // Can wrap!
   char *buf = malloc(len);  // Too small!

   Mitigation: Checked arithmetic, safe APIs

4. RACE CONDITIONS (TOCTOU)
   if (access(file, W_OK))  // Check
       open(file, O_WRONLY); // Use - file may have changed!

   Mitigation: Atomic operations, proper locking

5. SIDE-CHANNEL ATTACKS
   Spectre/Meltdown: CPU speculation leaks data
   Timing attacks: Execution time reveals secrets

   Mitigation: Constant-time code, speculation barriers

Conclusion & Next Steps

OS security is a continuous battle. We've covered:

• Security Goals: CIA triad and authenticity
• Privilege Levels: Hardware rings and kernel/user separation
• Access Control: DAC, MAC, and RBAC models
• ASLR & DEP: Exploit mitigations via randomization
• Sandboxing: Confining untrusted code
• Secure Boot: Chain of trust from power-on
• Vulnerabilities: Buffer overflow, use-after-free, side-channels
