Part 11: CPU Scheduling Algorithms

Scheduling Criteria

Different scheduling algorithms optimize for different metrics. No single algorithm is best for all situations.

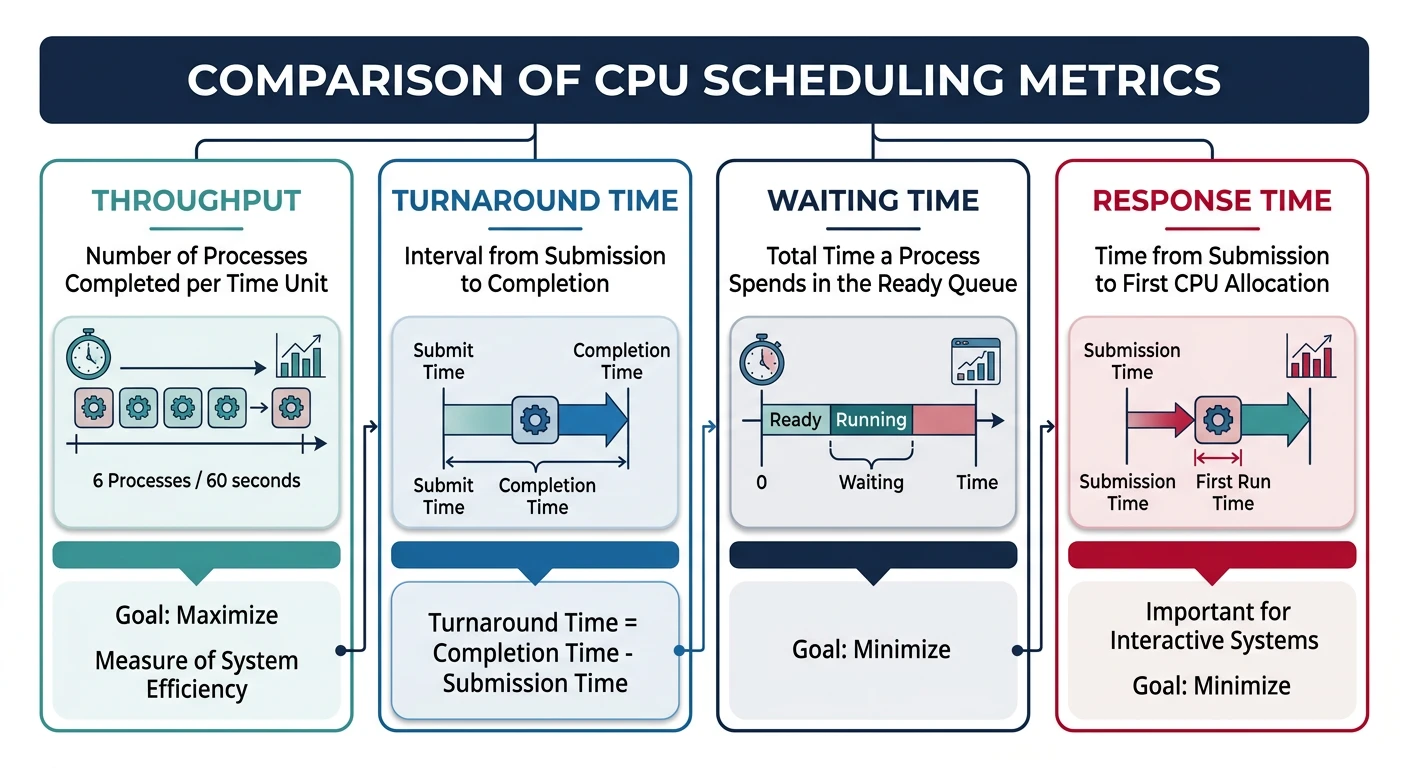

Scheduling Metrics:
══════════════════════════════════════════════════════════════

1. CPU UTILIZATION
   • Percentage of time CPU is busy (not idle)
   • Goal: Keep CPU as busy as possible (40-90% typical)

2. THROUGHPUT
   • Number of processes completed per unit time
   • Goal: Maximize (complete more work)

3. TURNAROUND TIME
   • Total time from submission to completion
   • Turnaround = Completion Time - Arrival Time
   • Goal: Minimize

4. WAITING TIME
   • Time spent waiting in ready queue (not running)
   • Waiting = Turnaround - Burst Time
   • Goal: Minimize

5. RESPONSE TIME
   • Time from submission to first response
   • Critical for interactive systems
   • Goal: Minimize (users notice >100ms delays)

Example:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Process arrives at t=0, starts at t=5, completes at t=15
Burst time (actual CPU needed) = 10

Turnaround = 15 - 0 = 15
Waiting    = 15 - 10 = 5  (or 5 - 0 = 5)
Response   = 5 - 0 = 5

First-Come First-Served (FCFS)

The simplest scheduling algorithm: processes run in the order they arrive. Non-preemptive—once a process starts, it runs to completion.

FCFS Scheduling:
══════════════════════════════════════════════════════════════

Processes:
┌─────────┬──────────────┬────────────┐
│ Process │ Arrival Time │ Burst Time │
├─────────┼──────────────┼────────────┤
│   P1    │      0       │     24     │
│   P2    │      1       │      3     │
│   P3    │      2       │      3     │
└─────────┴──────────────┴────────────┘

Gantt Chart (FCFS order):
┌────────────────────────────┬─────┬─────┐
│            P1              │ P2  │ P3  │
└────────────────────────────┴─────┴─────┘
0                           24    27    30

Results:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Process  Completion  Turnaround    Waiting
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  P1         24       24-0=24       24-24=0
  P2         27       27-1=26       26-3=23
  P3         30       30-2=28       28-3=25
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Average Turnaround: (24+26+28)/3 = 26
Average Waiting:    (0+23+25)/3 = 16

CONVOY EFFECT: Short jobs (P2, P3) wait behind long job (P1)!

Shortest Job First (SJF)

Schedule the process with the smallest burst time next. Proven optimal for minimizing average waiting time, but requires knowing burst times in advance.

SJF Scheduling (Same processes as FCFS):
══════════════════════════════════════════════════════════════

Gantt Chart (shortest first):
┌─────┬─────┬────────────────────────────┐
│ P2  │ P3  │            P1              │
└─────┴─────┴────────────────────────────┘
0     3     6                           30

Results:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Process  Completion  Turnaround    Waiting
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  P1         30       30-0=30       30-24=6
  P2          3        3-1=2         2-3=-1→0*
  P3          6        6-2=4         4-3=1
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Average Turnaround: (30+2+4)/3 = 12  (vs 26 for FCFS!)
Average Waiting:    (6+0+1)/3 = 2.3  (vs 16 for FCFS!)

*P2 arrived at t=1, started at t=1 (P1 hadn't started yet in
 this non-preemptive version starting fresh)


SRTF (Shortest Remaining Time First) - Preemptive SJF:
══════════════════════════════════════════════════════════════
If new process arrives with shorter burst than current
remaining time → preempt current process.

Arrival: P1(0,24), P2(1,3), P3(2,3)

Timeline:
t=0: P1 starts (only one)
t=1: P2 arrives, 3 < 23 remaining → preempt P1, run P2
t=2: P3 arrives, 3 = 2 remaining → no preempt (tie)
t=4: P2 done, P3 runs (3 < 23)
t=7: P3 done, P1 resumes
t=30: P1 done

┌───┬─────┬─────┬──────────────────────────┐
│P1 │ P2  │ P3  │          P1              │
└───┴─────┴─────┴──────────────────────────┘
0   1     4     7                          30

Round Robin

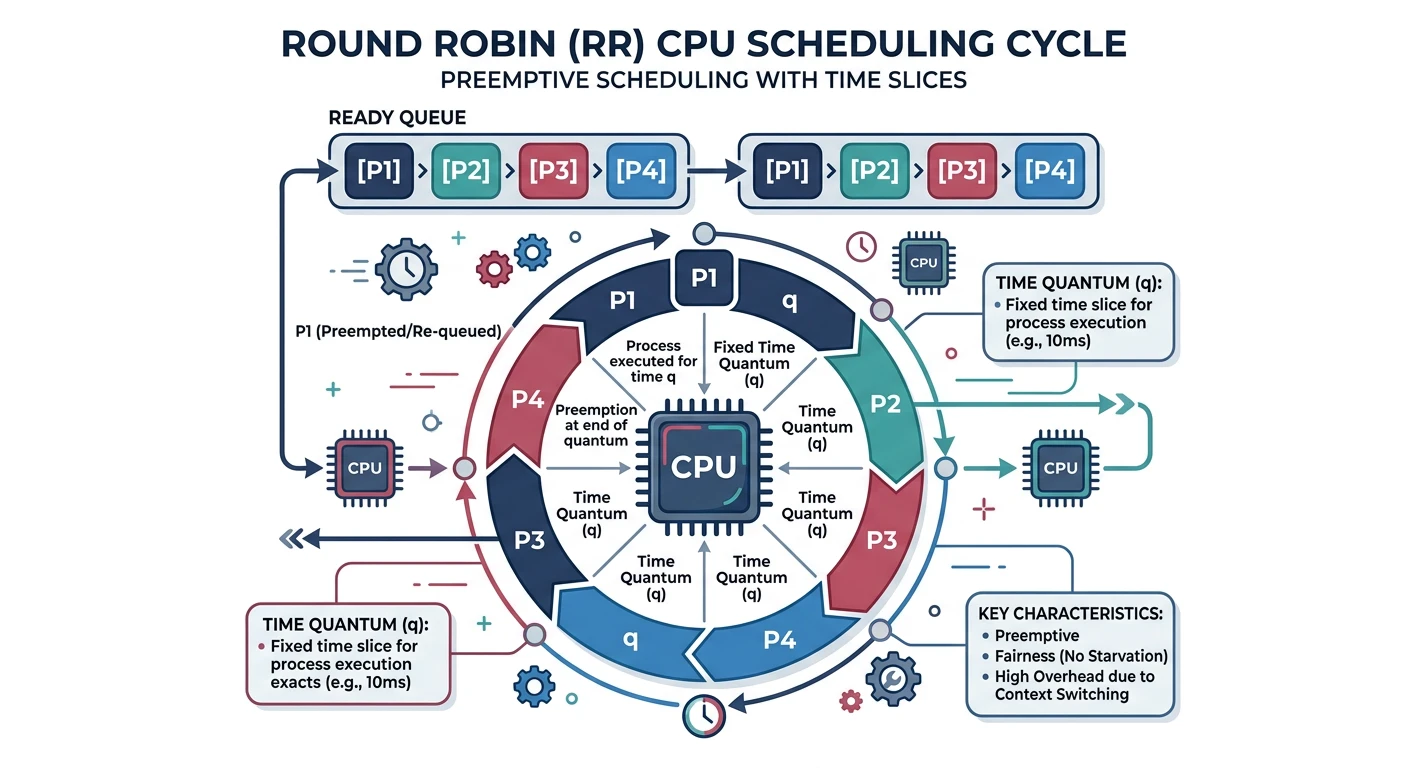

Round Robin (RR) gives each process a fixed time slice (quantum), then moves to the next. Preemptive and fair—every process gets equal CPU time.

Round Robin (quantum = 4):
══════════════════════════════════════════════════════════════

Processes (all arrive at t=0):
P1: 24ms, P2: 3ms, P3: 3ms

Ready Queue Evolution:
t=0:  [P1, P2, P3]  → Run P1 for 4ms
t=4:  [P2, P3, P1]  → Run P2 for 3ms (finishes)
t=7:  [P3, P1]      → Run P3 for 3ms (finishes)
t=10: [P1]          → Run P1 for 4ms
t=14: [P1]          → Run P1 for 4ms
t=18: [P1]          → Run P1 for 4ms
t=22: [P1]          → Run P1 for 4ms
t=26: [P1]          → Run P1 for 4ms (finishes, 4 remaining)

Wait, P1 needs 24ms total: 24 = 4+4+4+4+4+4 = 6 quanta
After t=4: P1 has 20ms left
After 5 more quanta (20ms): P1 done at t=4+3+3+20 = t=30

Gantt Chart:
┌────┬───┬───┬────┬────┬────┬────┬────┬────┐
│ P1 │P2 │P3 │ P1 │ P1 │ P1 │ P1 │ P1 │ P1 │
└────┴───┴───┴────┴────┴────┴────┴────┴────┘
0    4   7  10   14   18   22   26   30

Results:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
P1: Turnaround = 30, Waiting = 30-24 = 6
P2: Turnaround = 7,  Waiting = 7-3 = 4
P3: Turnaround = 10, Waiting = 10-3 = 7
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Average Turnaround: (30+7+10)/3 = 15.67
Average Waiting:    (6+4+7)/3 = 5.67

Time Quantum Selection:
══════════════════════════════════════════════════════════════

Too Large (q → ∞):
• Becomes FCFS (no preemption)
• Poor response time

Too Small (q → 0):
• Too many context switches
• Overhead dominates useful work
• "Processor sharing" - everyone progresses but slowly

Rule of thumb: 80% of CPU bursts should complete within one quantum
Typical values: 10-100 milliseconds

Context Switch Overhead:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Quantum    Context Switches    Overhead (if switch = 0.1ms)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
100ms      10/sec              0.1%
10ms       100/sec             1%
1ms        1000/sec            10%  ← Too much overhead!

Priority Scheduling

Each process has a priority; highest priority runs first. Can be preemptive or non-preemptive.

Priority Scheduling:
══════════════════════════════════════════════════════════════

Processes (lower number = higher priority):
┌─────────┬──────────┬────────────┐
│ Process │ Priority │ Burst Time │
├─────────┼──────────┼────────────┤
│   P1    │    3     │     10     │
│   P2    │    1     │      1     │  ← Highest priority
│   P3    │    4     │      2     │
│   P4    │    5     │      1     │
│   P5    │    2     │      5     │
└─────────┴──────────┴────────────┘

Execution order: P2 → P5 → P1 → P3 → P4

Gantt Chart:
┌───┬───────┬────────────┬────┬───┐
│P2 │  P5   │     P1     │ P3 │P4 │
└───┴───────┴────────────┴────┴───┘
0   1       6           16   18  19

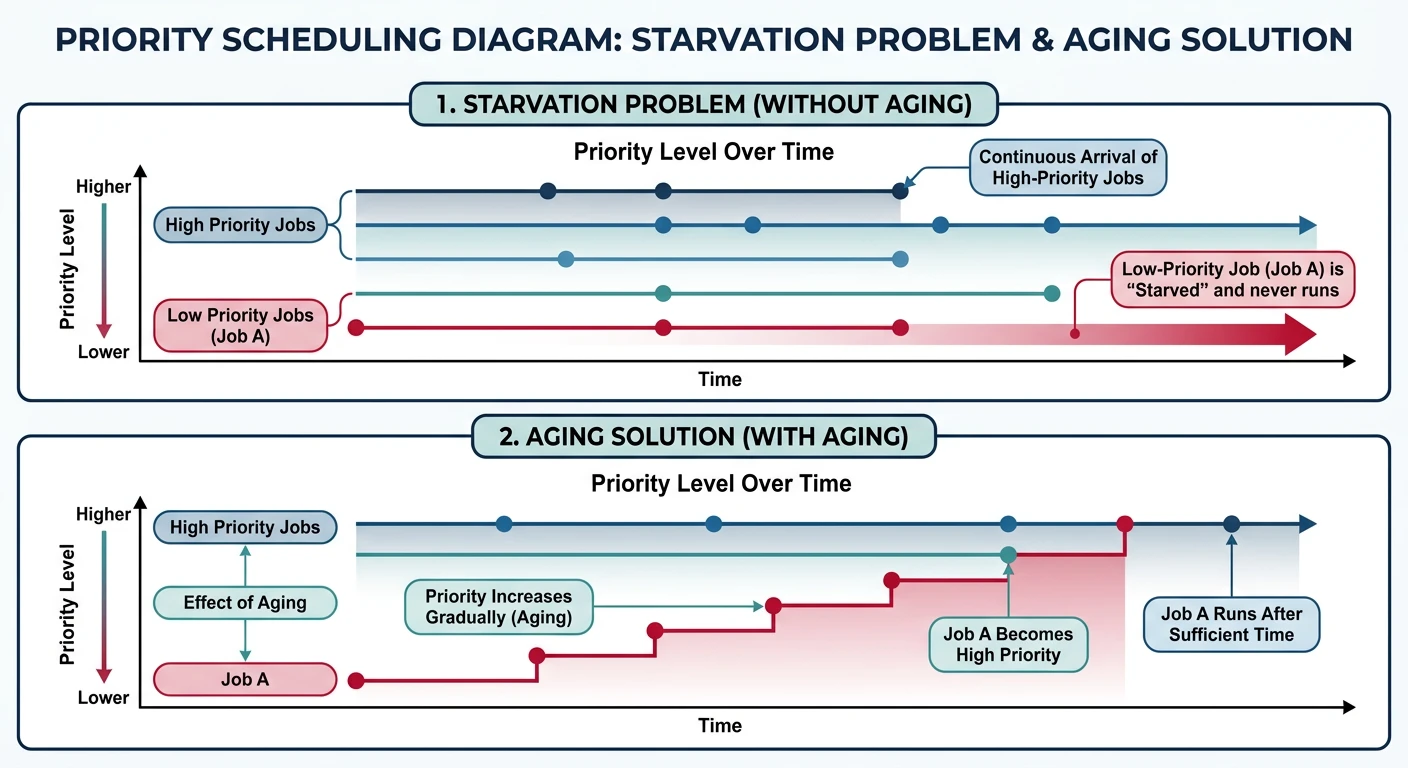

STARVATION PROBLEM:
══════════════════════════════════════════════════════════════
Low priority processes may NEVER run if high priority
processes keep arriving.

Example: MIT's IBM 7094 in 1973 - low priority job submitted
in 1967 still hadn't run!

SOLUTION: AGING
• Gradually increase priority of waiting processes
• Eventually even lowest priority will become highest
• Prevents indefinite starvation

Aging Example:
Priority increases by 1 every 15 minutes of waiting
Process at priority 127 → after 32 hours → priority 0 (highest)

Multilevel Queue Scheduling

Multiple ready queues with different priorities and scheduling algorithms. Processes are permanently assigned to a queue based on type.

Multilevel Queue:
══════════════════════════════════════════════════════════════

┌─────────────────────────────────────────┐ Highest Priority
│ Queue 1: Real-Time Processes            │
│ (FCFS or Priority within queue)         │
├─────────────────────────────────────────┤
│ Queue 2: System Processes               │
│ (Priority scheduling)                   │
├─────────────────────────────────────────┤
│ Queue 3: Interactive Processes          │
│ (Round Robin, q=20ms)                   │
├─────────────────────────────────────────┤
│ Queue 4: Batch Processes                │
│ (FCFS)                                  │
└─────────────────────────────────────────┘ Lowest Priority

Rules:
• Higher queue always preempts lower
• No process in lower queue runs if higher queue non-empty
• Each queue can use different algorithm


Multilevel FEEDBACK Queue:
══════════════════════════════════════════════════════════════
Processes can MOVE between queues based on behavior!

┌─────────────────────────────────────────┐
│ Queue 0: RR, quantum = 8ms              │ ← New processes start here
│                                         │
│    Didn't finish? ─────────────────┐    │
└─────────────────────────────────────│───┘
                                      ▼
┌─────────────────────────────────────────┐
│ Queue 1: RR, quantum = 16ms             │
│                                         │
│    Didn't finish? ─────────────────┐    │
└─────────────────────────────────────│───┘
                                      ▼
┌─────────────────────────────────────────┐
│ Queue 2: FCFS (batch queue)             │ ← CPU-bound processes end here
└─────────────────────────────────────────┘

Benefits:
• Interactive processes (short bursts) stay in high queues
• CPU-bound processes sink to lower queues
• Self-adjusting based on actual behavior

Completely Fair Scheduler (CFS)

Linux's default scheduler since 2.6.23. Instead of time slices, CFS tracks virtual runtime—how much CPU time each process has received.

Completely Fair Scheduler (CFS):
══════════════════════════════════════════════════════════════

Idea: Track "virtual runtime" (vruntime) for each process.
Always run the process with SMALLEST vruntime.

Virtual Runtime:
vruntime += actual_runtime × (default_weight / process_weight)

• Higher weight (lower nice) → vruntime increases slower
• Lower weight (higher nice) → vruntime increases faster

Example with nice values:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Process  Nice   Weight    After 10ms real time
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  P1      0     1024      vruntime += 10ms
  P2     -5     3121      vruntime += 3.3ms   (runs more)
  P3     +5      335      vruntime += 30.5ms  (runs less)

P2 gets ~3x more CPU than P1, P1 gets ~3x more than P3


Data Structure: Red-Black Tree
══════════════════════════════════════════════════════════════
                    [P3: 50ms]
                   /          \
            [P1: 30ms]      [P5: 80ms]
            /        \
     [P2: 20ms]  [P4: 45ms]

• Ordered by vruntime (leftmost = smallest = runs next)
• O(log n) insert, delete, find-min
• Leftmost node cached for O(1) access

Scheduling:
1. Pick leftmost node (smallest vruntime)
2. Run for "time slice" (dynamic, based on load)
3. Update vruntime
4. Reinsert into tree
5. Repeat

# View scheduler settings on Linux
$ cat /proc/sys/kernel/sched_latency_ns
24000000  # Target latency: 24ms

$ cat /proc/sys/kernel/sched_min_granularity_ns
3000000   # Minimum time slice: 3ms

# Check a process's nice value
$ ps -o pid,ni,comm -p $$
  PID  NI COMMAND
12345   0 bash

# Change nice value
$ nice -n 10 ./cpu_intensive_task  # Lower priority
$ sudo nice -n -10 ./important_task  # Higher priority (need root)

Real-Time Scheduling

Real-time systems have strict timing requirements. Missing a deadline can be catastrophic (hard real-time) or degrading (soft real-time).

Real-Time Scheduling:
══════════════════════════════════════════════════════════════

HARD REAL-TIME:
• Deadline MUST be met (100% guarantee)
• Examples: Pacemakers, aircraft controls, ABS brakes
• Missing deadline = system failure

SOFT REAL-TIME:
• Deadline SHOULD be met (best effort)
• Examples: Video playback, audio processing
• Missing deadline = degraded quality


Linux Real-Time Policies:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Policy        Priority    Description
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
SCHED_FIFO    1-99       FIFO within priority, no preemption
SCHED_RR      1-99       Round-robin within priority
SCHED_OTHER   0          CFS (normal processes)
SCHED_BATCH   0          CFS, throughput-oriented
SCHED_IDLE    0          Only when system idle

Real-time (FIFO/RR) ALWAYS preempts normal (OTHER/BATCH/IDLE)


Rate Monotonic Scheduling (RMS):
══════════════════════════════════════════════════════════════
For periodic tasks: Higher frequency → Higher priority

Tasks:
T1: Period=50ms, Execution=25ms  → Priority HIGH
T2: Period=100ms, Execution=35ms → Priority LOW

Schedulable if: Σ(Ci/Pi) ≤ n(2^(1/n) - 1)
For n=2: 25/50 + 35/100 = 0.5 + 0.35 = 0.85 ≤ 0.83

0.85 > 0.83 → Might miss deadlines! (need EDF or faster CPU)

Conclusion & Next Steps

CPU scheduling is fundamental to OS performance. We've covered:

• FCFS: Simple but suffers from convoy effect
• SJF: Optimal average waiting but requires prediction
• Round Robin: Fair and responsive with proper quantum
• Priority: Flexible but needs aging to prevent starvation
• Multilevel Feedback: Adaptive based on process behavior
• CFS: Linux's fair scheduler using virtual runtime
• Real-Time: Guaranteed deadlines for critical systems
