Part 10: Threads & Concurrency

Thread Basics

Threads vs Processes

Process vs Thread:
══════════════════════════════════════════════════════════════

PROCESS                              THREAD
────────────────────────────────     ────────────────────────────────
Own address space                    Shared address space
Own file descriptors                 Shared file descriptors
Own signal handlers                  Shared signal handlers
Own heap                             Shared heap

Own stack                            Own stack (each thread)
Own registers/PC                     Own registers/PC (each thread)
Own thread ID (TID)                  Own thread ID (TID)

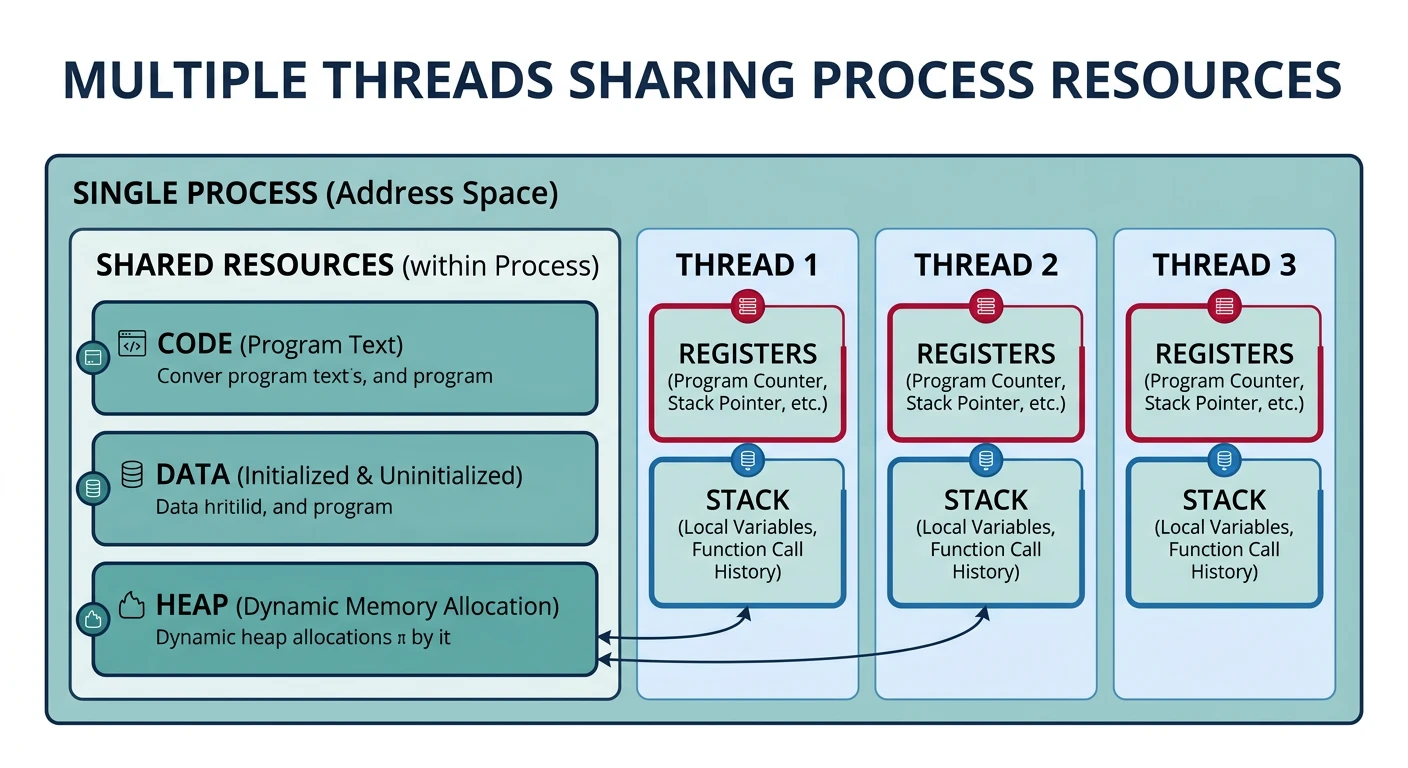

Memory Layout Comparison:
══════════════════════════════════════════════════════════════

SEPARATE PROCESSES:                  SINGLE PROCESS, MULTIPLE THREADS:

Process A        Process B           Shared Process Space
┌─────────┐     ┌─────────┐         ┌─────────────────────────┐
│ Stack A │     │ Stack B │         │ Stack (Thread 1)        │
├─────────┤     ├─────────┤         ├─────────────────────────┤
│ Heap A  │     │ Heap B  │         │ Stack (Thread 2)        │
├─────────┤     ├─────────┤         ├─────────────────────────┤
│ Data A  │     │ Data B  │         │ Stack (Thread 3)        │
├─────────┤     ├─────────┤         ├═════════════════════════┤
│ Code A  │     │ Code B  │         │ Heap (SHARED)           │
└─────────┘     └─────────┘         ├─────────────────────────┤
                                    │ Data (SHARED)           │
Isolated!                           ├─────────────────────────┤
                                    │ Code (SHARED)           │
                                    └─────────────────────────┘

Benefits of Threads

Benefits of Multithreading:
══════════════════════════════════════════════════════════════

1. RESPONSIVENESS
   Main thread handles UI, worker threads do computation
   → UI stays responsive during heavy processing

   Example: Browser
   • Main thread: Render page, handle clicks
   • Network thread: Fetch resources
   • JavaScript thread: Run scripts

2. RESOURCE SHARING
   Threads share memory → Easy communication
   • No need for pipes, sockets, or shared memory setup
   • Just read/write shared variables (with synchronization!)

3. ECONOMY
   ┌─────────────────────────────────────────────────────────┐
   │ Operation              Process      Thread              │
   │ ─────────────────────────────────────────────────────── │
   │ Creation time          ~10ms        ~100μs (100× faster)│
   │ Context switch         ~5-10μs      ~1-2μs (5× faster) │
   │ Memory overhead        MBs          KBs (stack only)   │
   └─────────────────────────────────────────────────────────┘

4. SCALABILITY
   Threads can run on multiple CPU cores simultaneously
   → True parallelism on multicore systems

   4-core CPU, 4 threads → 4× speedup (ideal case)

Challenges

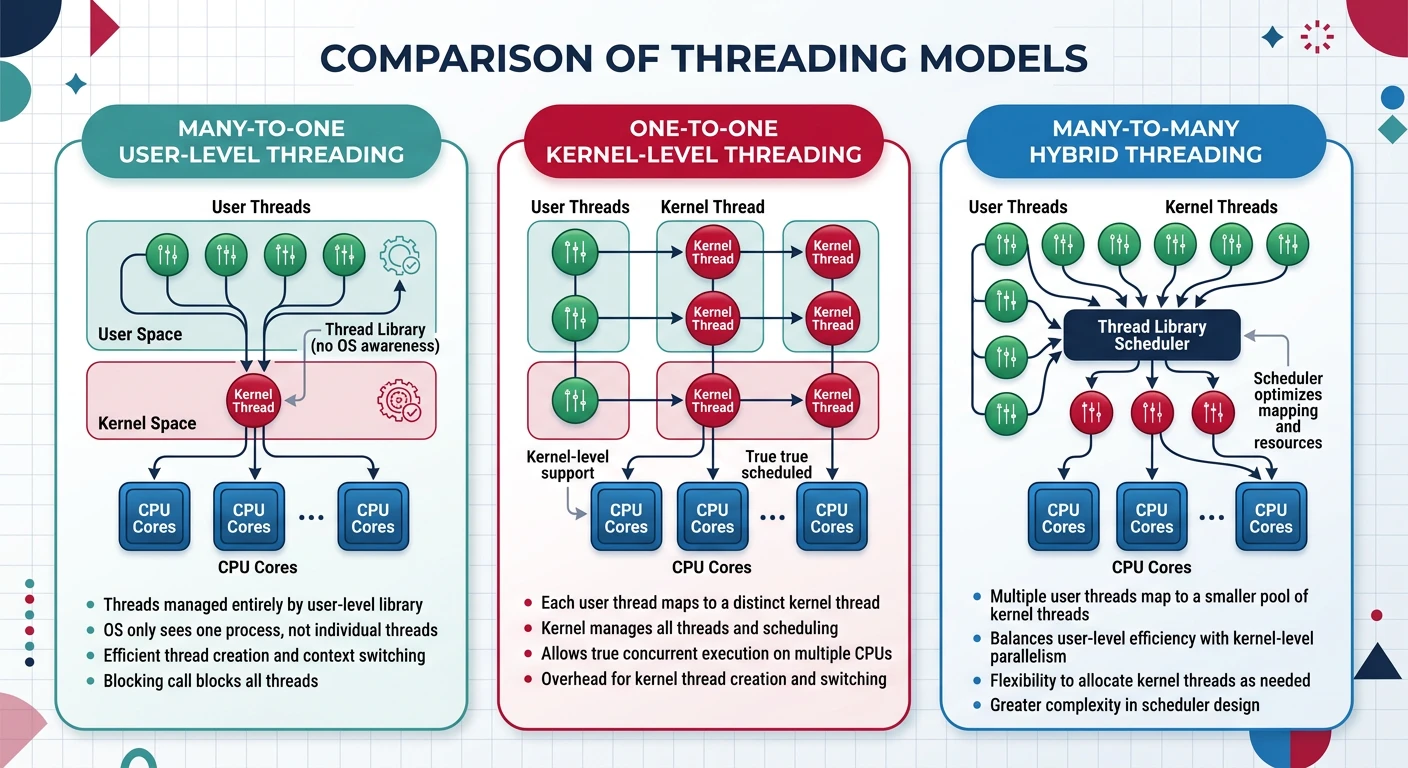

Threading Models

There are different ways to implement threads, differing in where thread management happens.

User-Level Threads

User-Level Threads (N:1 Model):
══════════════════════════════════════════════════════════════

User Space
┌─────────────────────────────────────────────────────────────┐
│  ┌─────────────────────────────────────────────────────┐   │
│  │              Thread Library (e.g., Green Threads)    │   │
│  │  ┌─────┐  ┌─────┐  ┌─────┐  ┌─────┐               │   │
│  │  │ T1  │  │ T2  │  │ T3  │  │ T4  │  User threads │   │
│  │  └──┬──┘  └──┬──┘  └──┬──┘  └──┬──┘               │   │
│  │     └────────┴────────┴────────┘                    │   │
│  │                    │                                │   │
│  │              Thread Scheduler                       │   │
│  │              (in user space)                        │   │
│  └──────────────────────┬──────────────────────────────┘   │
└─────────────────────────┼───────────────────────────────────┘
══════════════════════════╪═══════════════════════════════════
Kernel Space              ▼
┌─────────────────────────────────────────────────────────────┐
│                Single Kernel Thread                         │
│                (OS sees one "process")                      │
└─────────────────────────────────────────────────────────────┘

Advantages:
✓ Fast context switch (no kernel involvement)
✓ Can implement custom scheduling
✓ Works on any OS (no kernel support needed)

Disadvantages:
✗ One thread blocks → entire process blocks
✗ Can't use multiple CPUs (all run on one kernel thread)
✗ Page fault in one thread blocks all

Examples: Go goroutines (initially), Java green threads (historical)

Kernel-Level Threads

Kernel-Level Threads (1:1 Model):
══════════════════════════════════════════════════════════════

User Space
┌─────────────────────────────────────────────────────────────┐
│  ┌─────┐  ┌─────┐  ┌─────┐  ┌─────┐                        │
│  │ T1  │  │ T2  │  │ T3  │  │ T4  │  User threads          │
│  └──┬──┘  └──┬──┘  └──┬──┘  └──┬──┘                        │
└─────┼───────┼───────┼───────┼──────────────────────────────┘
══════╪═══════╪═══════╪═══════╪══════════════════════════════
Kernel│Space  │       │       │
┌─────┼───────┼───────┼───────┼──────────────────────────────┐
│  ┌──▼──┐ ┌──▼──┐ ┌──▼──┐ ┌──▼──┐                          │
│  │ KT1 │ │ KT2 │ │ KT3 │ │ KT4 │  Kernel threads          │
│  └─────┘ └─────┘ └─────┘ └─────┘  (1:1 mapping)           │
│                                                             │
│         Kernel Thread Scheduler                            │
└─────────────────────────────────────────────────────────────┘

Advantages:
✓ True parallelism on multicore
✓ One thread blocking doesn't block others
✓ Kernel can schedule on multiple CPUs

Disadvantages:
✗ Context switch requires kernel involvement (~1-2μs)
✗ Each thread uses kernel resources
✗ Thread creation slower

Examples: Linux pthreads, Windows threads, macOS threads

Hybrid Models

Hybrid M:N Model:
══════════════════════════════════════════════════════════════
M user threads mapped to N kernel threads (M > N)

User Space
┌─────────────────────────────────────────────────────────────┐
│  ┌───┐ ┌───┐ ┌───┐ ┌───┐ ┌───┐ ┌───┐  (M user threads)    │
│  │UT1│ │UT2│ │UT3│ │UT4│ │UT5│ │UT6│                      │
│  └─┬─┘ └─┬─┘ └─┬─┘ └─┬─┘ └─┬─┘ └─┬─┘                      │
│    └─────┴──┬──┴─────┴──┬──┴─────┘                         │
│             │           │                                   │
│      User-Level Scheduler                                   │
└─────────────┼───────────┼───────────────────────────────────┘
══════════════╪═══════════╪═══════════════════════════════════
Kernel Space  ▼           ▼
┌─────────────────────────────────────────────────────────────┐
│         ┌─────┐     ┌─────┐                                 │
│         │ KT1 │     │ KT2 │    (N kernel threads)          │
│         └─────┘     └─────┘                                 │
│                                                             │
│         Kernel Scheduler                                    │
└─────────────────────────────────────────────────────────────┘

Examples: Go runtime (goroutines → OS threads), Solaris LWPs

Best of both worlds:
✓ Many lightweight user threads
✓ Multiple kernel threads for parallelism
✓ User-level scheduling is fast

POSIX Threads (pthreads)

pthreads is the standard threading API for Unix-like systems (Linux, macOS, BSD). It provides 1:1 kernel-level threads.

Thread Creation

// Basic pthread example
#include <stdio.h>
#include <pthread.h>
#include <unistd.h>

// Thread function - runs in new thread
void *thread_function(void *arg) {
    int thread_num = *(int *)arg;
    printf("Thread %d: Starting\n", thread_num);
    sleep(1);  // Simulate work
    printf("Thread %d: Finishing\n", thread_num);
    return NULL;
}

int main() {
    pthread_t threads[3];
    int thread_args[3] = {1, 2, 3};

    // Create 3 threads
    for (int i = 0; i < 3; i++) {
        int ret = pthread_create(
            &threads[i],      // Thread ID (output)
            NULL,             // Attributes (NULL = default)
            thread_function,  // Function to run
            &thread_args[i]   // Argument to function
        );
        if (ret != 0) {
            perror("pthread_create failed");
            return 1;
        }
    }

    printf("Main: All threads created\n");

    // Wait for all threads to complete
    for (int i = 0; i < 3; i++) {
        pthread_join(threads[i], NULL);
    }

    printf("Main: All threads finished\n");
    return 0;
}

// Compile: gcc -pthread program.c -o program

Output (order may vary!):
Main: All threads created
Thread 1: Starting
Thread 3: Starting
Thread 2: Starting
Thread 2: Finishing
Thread 1: Finishing
Thread 3: Finishing
Main: All threads finished

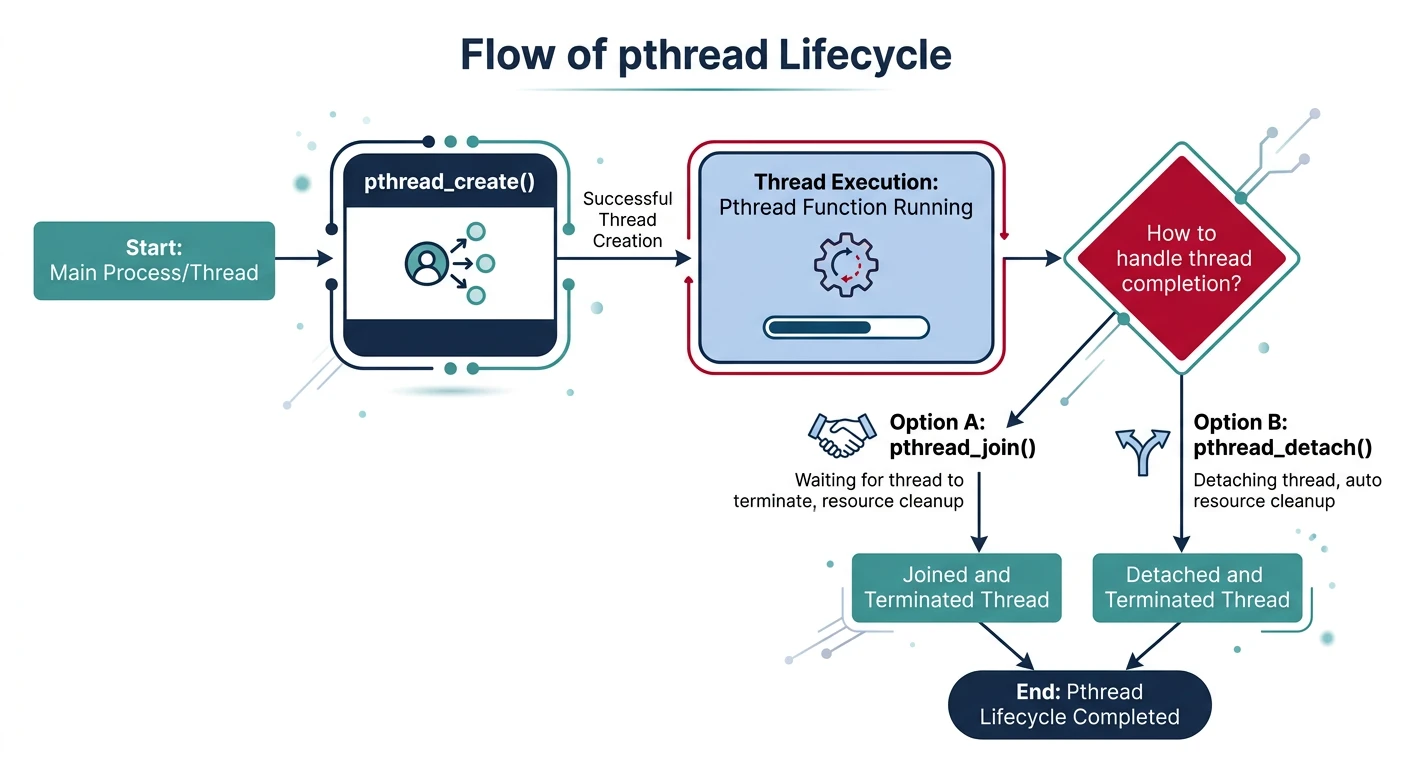

Joining & Detaching

// Thread joining - wait for completion and get return value
void *compute_sum(void *arg) {
    int *result = malloc(sizeof(int));
    *result = 42;  // Computed result
    return result;  // Return pointer (lives on heap!)
}

int main() {
    pthread_t thread;
    void *retval;

    pthread_create(&thread, NULL, compute_sum, NULL);

    // Join: block until thread finishes, get return value
    pthread_join(thread, &retval);

    int *result = (int *)retval;
    printf("Thread returned: %d\n", *result);  // 42
    free(result);

    return 0;
}

// Detached threads - run independently, can't be joined
void start_background_task() {
    pthread_t thread;
    pthread_create(&thread, NULL, background_work, NULL);

    // Detach: thread resources freed automatically on exit
    pthread_detach(thread);
    // Can't join a detached thread!
}

// Or set detached at creation:
pthread_attr_t attr;
pthread_attr_init(&attr);
pthread_attr_setdetachstate(&attr, PTHREAD_CREATE_DETACHED);
pthread_create(&thread, &attr, func, NULL);

Thread Attributes

Race Conditions

A race condition occurs when the behavior of a program depends on the relative timing of events (like thread scheduling). The result is non-deterministic and often buggy.

Critical Sections

// BUGGY CODE - Race condition!
int counter = 0;  // Shared variable

void *increment(void *arg) {
    for (int i = 0; i < 1000000; i++) {
        counter++;  // NOT atomic!
    }
    return NULL;
}

int main() {
    pthread_t t1, t2;
    pthread_create(&t1, NULL, increment, NULL);
    pthread_create(&t2, NULL, increment, NULL);
    pthread_join(t1, NULL);
    pthread_join(t2, NULL);

    // Expected: 2,000,000
    // Actual: Something less (race condition!)
    printf("Counter: %d\n", counter);
    return 0;
}

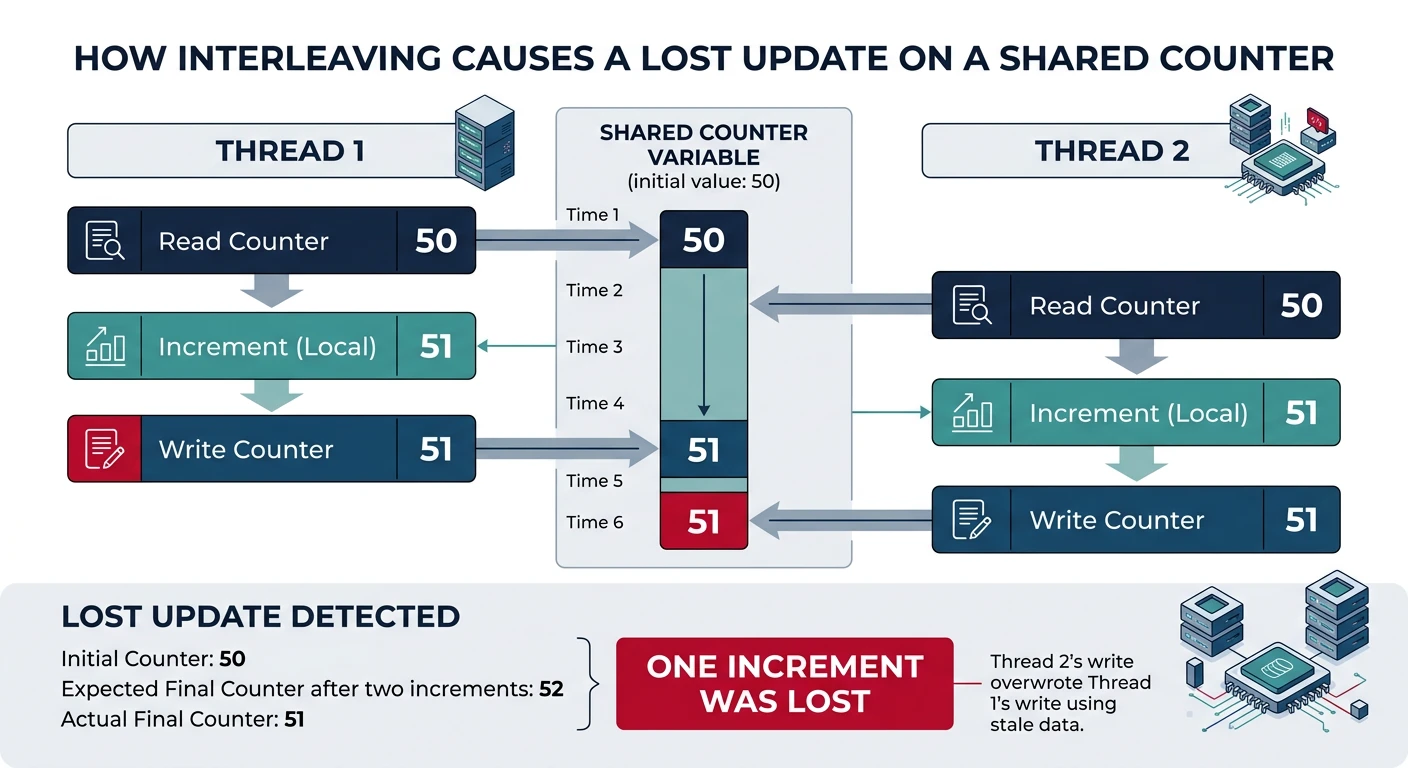

Why it's broken:
══════════════════════════════════════════════════════════════
counter++ is NOT atomic! It's actually 3 operations:

Thread 1                   Thread 2
─────────────────────────  ─────────────────────────
1. LOAD counter (= 5)
2. ADD 1 (= 6)             1. LOAD counter (= 5)  ← Same value!
3. STORE counter (= 6)     2. ADD 1 (= 6)
                           3. STORE counter (= 6)

Both threads read 5, both write 6 → Lost update!
We incremented twice but counter only increased by 1.

Runs:
$ ./program → Counter: 1847293
$ ./program → Counter: 1923847
$ ./program → Counter: 1788234
Different every time! Non-deterministic bug.

Data Races

Data Race Definition:
══════════════════════════════════════════════════════════════
A data race occurs when:
1. Two or more threads access the same memory location
2. At least one access is a write
3. The accesses are not synchronized

Data races lead to undefined behavior in C/C++!
The compiler can assume no data races and optimize accordingly.

Examples of data races:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
int x = 0;                  // Shared variable

Thread 1:     Thread 2:     Race?
─────────     ─────────     ──────
x = 1;        y = x;        YES - write/read without sync
x = 1;        x = 2;        YES - write/write without sync
y = x;        z = x;        NO  - both reads, no writes

CRITICAL SECTION:
A code region that accesses shared resources and must not be
executed by more than one thread at a time.

Atomicity

// Solution 1: Atomic operations (simple cases)
#include <stdatomic.h>

atomic_int counter = 0;  // Atomic integer

void *increment(void *arg) {
    for (int i = 0; i < 1000000; i++) {
        atomic_fetch_add(&counter, 1);  // Atomic increment
        // Or: counter++;  // Also atomic for atomic_int!
    }
    return NULL;
}

// Now counter will always be exactly 2,000,000!


// Solution 2: Mutex (for complex critical sections)
#include <pthread.h>

int counter = 0;
pthread_mutex_t lock = PTHREAD_MUTEX_INITIALIZER;

void *increment(void *arg) {
    for (int i = 0; i < 1000000; i++) {
        pthread_mutex_lock(&lock);    // Enter critical section
        counter++;                     // Safe!
        pthread_mutex_unlock(&lock);  // Exit critical section
    }
    return NULL;
}

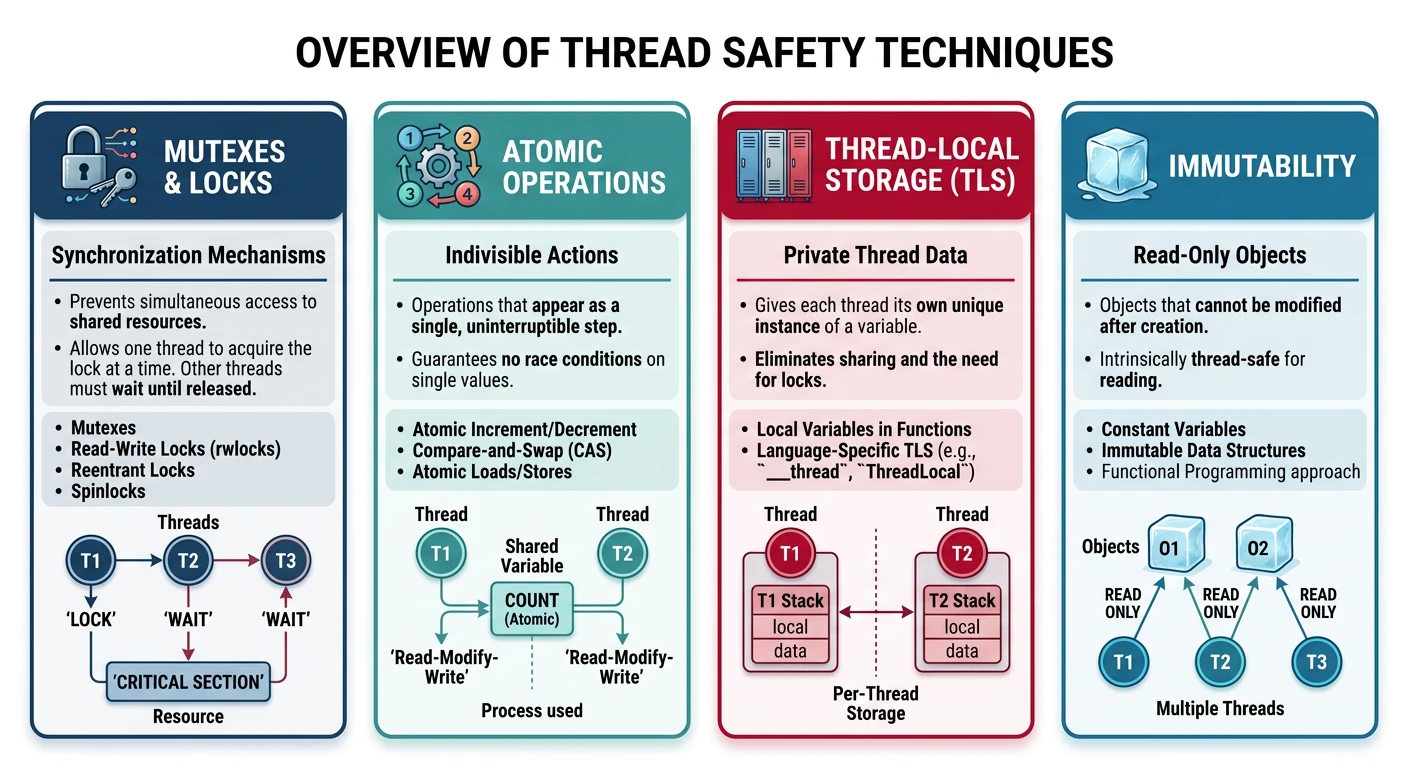

Thread Safety Patterns

A function or class is thread-safe if it can be safely called from multiple threads simultaneously.

// Thread-Local Storage example
#include <pthread.h>
#include <stdio.h>

// Each thread gets its own 'counter'
__thread int counter = 0;  // GCC extension
// Or: _Thread_local int counter = 0;  // C11 standard

void *thread_func(void *arg) {
    int id = *(int *)arg;
    for (int i = 0; i < 5; i++) {
        counter++;  // Each thread increments its OWN copy
        printf("Thread %d: counter = %d\n", id, counter);
    }
    return NULL;
}

// Output: Each thread counts 1,2,3,4,5 independently!

Conclusion & Next Steps

Threads enable parallelism within a process, but shared memory requires careful synchronization. Key takeaways:

• Threads vs Processes: Threads share address space (fast but dangerous), processes are isolated (safe but slower)
• Threading Models: User-level (N:1), kernel-level (1:1), and hybrid (M:N) each have trade-offs
• pthreads: Standard API for thread creation, joining, and attributes
• Race Conditions: Non-atomic operations on shared data cause unpredictable bugs
• Thread Safety: Achieved through locks, atomics, immutability, or thread-local storage
